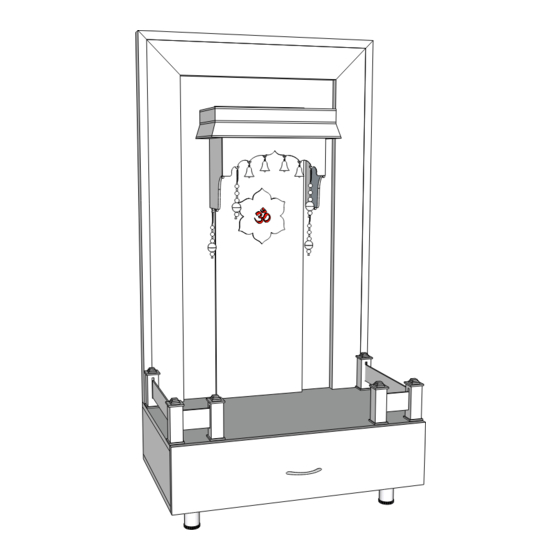

- Page 1 Not to scale Assembly Guide #02 Page Scan the QR for the digital This guide works for the following SKUs MWD-08-117-301-442416 MWD-14-108-345-573018 MWD-08-108-348-573018 Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 2 Gather the required planks K, L, M, N, O and P to assemble the inner drawer Required hardware is shown below handle screw minifix pull handle philips screw driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 3 1.a. screw 8 mini fixes into the pre-drilled holes on planks K, M and O ↓ 1.b. attach side panels K and M against rear panel L and tighten CAM(s) to secure ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 4 Page 1.c. slide the drawer base panel N along the routed lines ↓ 1.d. secure one handle S on the drawer plank O using the provided screws ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 5 1.e. attach the drawer front O on the drawer structure and tighten the CAMs to secure ↓ 1.f. simply rest platform extension plank P on the drawer box ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 6 Gather the required planks F, G, H, I and J to assemble base storage structure Required hardware is shown below leg screw minifix philips screw driver x16 | optional x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 7 2.a. (optional) you may choose to replace the rubber legs with SS legs on base plank F ↓ 2.b. screw 4 mini fixes into the pre-drilled holes on parts G and I ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 8 2.c. attach side G to rear plank H, tighten CAM(s) to secure in place ↓ 2.d. attach side plank I to the above assembled structure, tighten CAM(s) to secure it ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 9 2.e. screw 12 mini fixes into the pre-drilled holes on planks F and J ↓ 2.f. place base plank F onto the assembled structure, tighten CAM(s) to secure it↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 10 2.g. flip the assembled structure and place plank J on it, tighten CAM(s) to secure it↓ 2.h. gently pull the inner slides from the base structure and slide the drawer box on them ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 11 Step 3: Affix the back panel to the base structure Gather the required hardware, back panel A and the fully assembled base structure Required hardware is shown below hex bolt hex key / allen key Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 12 Note: Be sure to align all the bolts using your fingers before fastening any one of the bolts completely. Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 13 Required hardware is shown below hex bolt hex key / allen key hanger screw philips screw S hook driver x1 | not included Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 14 4.a. slide the jharoka hanger onto the placeholder tiles and fasten the screws to secure ↓ 4.b. repeat the same for the other jharoka hanger side pieces ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 15 4.c. using the hex bolts and hex key secure the hood onto the back panel. Note: Make sure the hood is completely flush against the back panel and there are no visible gaps where the hood and the panel meet. Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 16 Once the pillars are laid out, peel the double sided tape on the bottom of the pillar to stick the pillar onto the mandir base. Then slide the longer fences into the provided slots ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 17 ↓ 4.g. use the ’S’ hooks to hang the latkans and brass bells onto the jharoka hanger ↓ Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
- Page 18 Note: A socket pin converter may be included in your package based on your delivery location Congratulations! You have now completed the mandir assembly. For any questions, comments or suggestions, email us at team@themandirstore.us Not to scale © 2022. The Mandir Store®. All Rights Reserved. v2.0...
