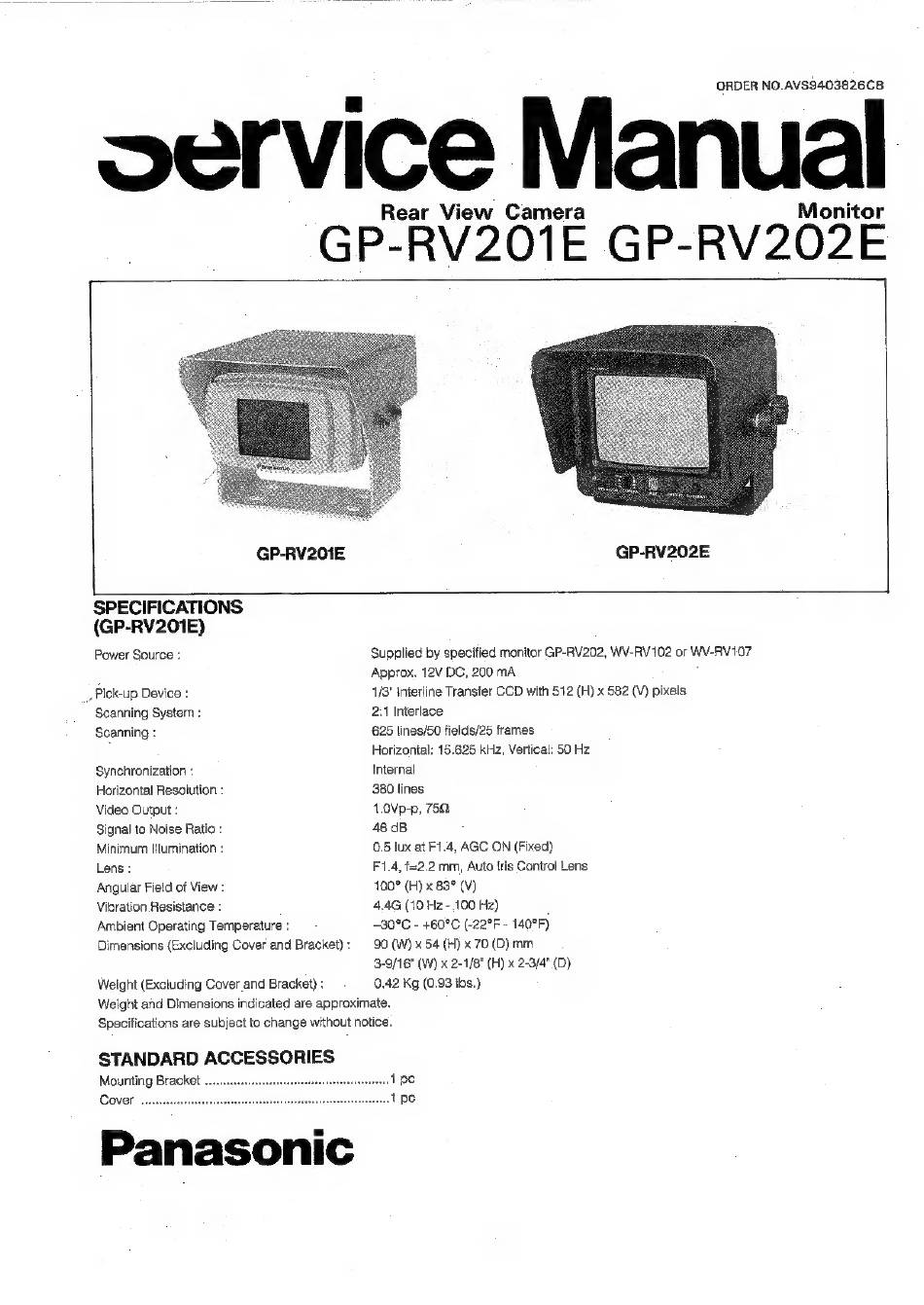

ORDER NO.AVS9403826C8
ervice Manual
Rear View
Camera
Monitor
GP-RV201E GP-RV202E
GP-RV201E
GP-RV202E
SPECIFICATIONS
(GP-RV201E)
Power Source :
Supplied by specified monitor GP-RV202, WV-RV102 or WV-RV107
Approx. 12V DC, 200 mA
Pick-up Device :
4/3" Interline Transfer CCD with 512 (H) x 582 (V) pixels
Scanning System :
2:1 Interlace
Scanning :
625 lines/50 fields/25 frames
Horizontal: 15.625 kHz, Vertical: 50 Hz
Synchronization :
Internal
Horizontal Resolution :
380 lines
Video Output :
1.0Vp-p, 752,
Signal to Noise Ratio :
46 dB
Minimum Hlumination :
0.5 lux at F1.4, AGC ON (Fixed)
Lens :
F1.4, f=2.2 mm, Auto tris Control Lens
Angular Field of View :
100° (H) x 83° (V)
Vibration Resistance :
4.4G (10 Hz - 100 Hz)
Ambient Operating Temperature :
30°C - +60°C (-22°F - 140°F)
Dimensions (Excluding Cover and Bracket):
90 (W) x 54 (H) x 70 (D) mm
3-9/16" (W) x 2-1/8" (H) x 2-3/4" (D)
Weight (Excluding Cover and Bracket) :
0.42 Kg (0.93 Ibs.)
Weight and Dimensions indicated are approximate.
Specifications are subject to change without notice.
STANDARD ACCESSORIES
Mounting Bracket
Cover
