Panasonic WJ-HDE300/G Instructions Manual

Extension unit
Hide thumbs

Advertisement

Quick Links

Download this manual

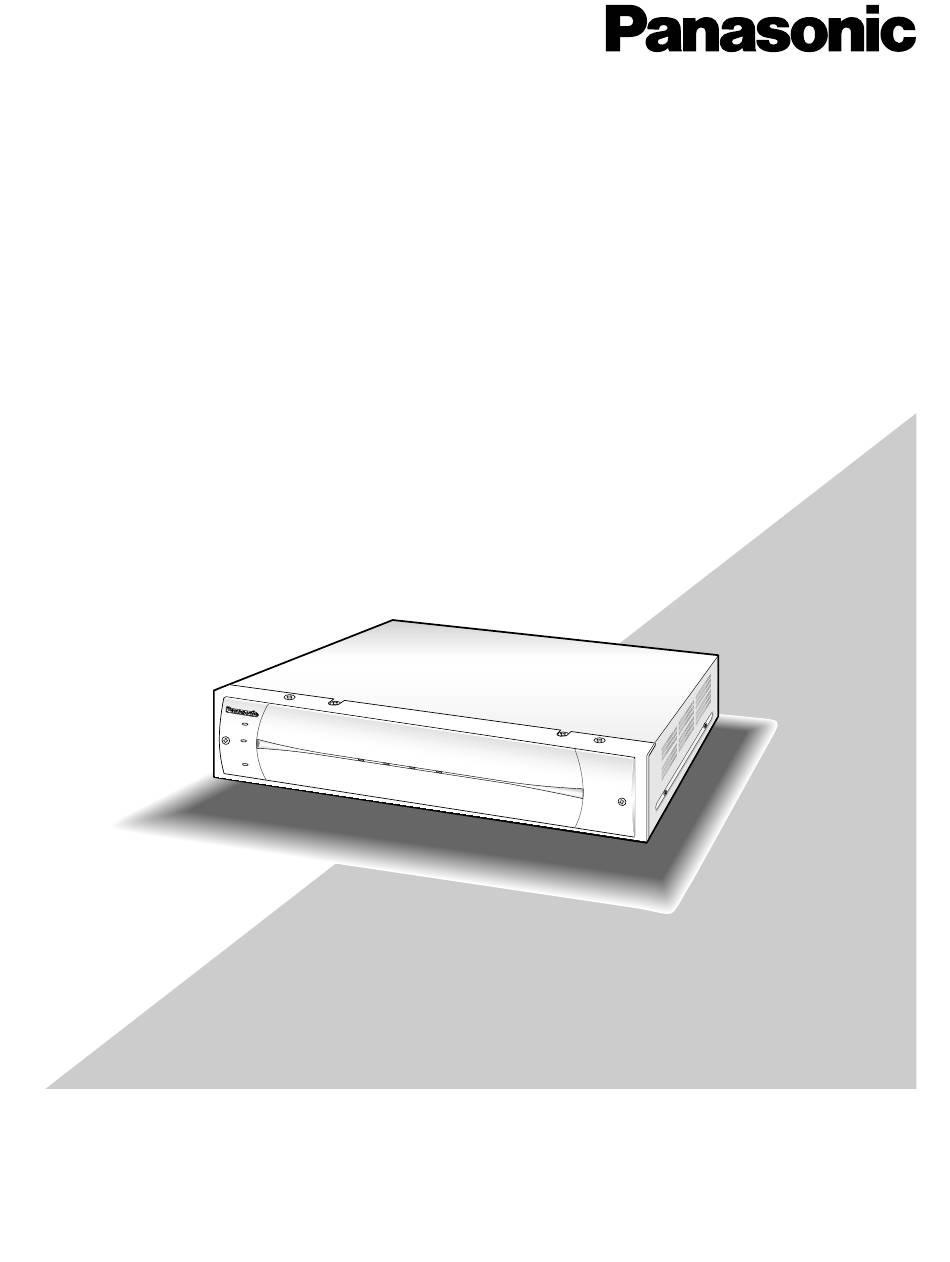

Extension Unit
Instructions
WJ-HDE300/G
Model No.
E xt en si on
U ni t
3 0 0
W J- H D E
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.

Advertisement

loading

Related Manuals for Panasonic WJ-HDE300/G

Summary of Contents for Panasonic WJ-HDE300/G

  • Page 1: I Important Safety Instructions

    Extension Unit Instructions WJ-HDE300/G Model No. E xt en si on U ni t 3 0 0 W J- H D E Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

  • Page 2: Table Of Contents

    Contents I Important Safety Instructions ....... 3 I General ..........5 I Precautions .

  • Page 3: I General

    I General The extension unit WJ-HDE300 can accommodate up to four hard disk drives per unit to add available disk space to the digital disk recorder WJ-HD316A/WJ-HD309A series. Up to seven extension units can be connected to a digital disk recorder. The units can be operated in RAID level 5* mode for high tolerance to disk error.

  • Page 4: I Appearance

    I Appearance G Front View ERROR HDD 1 HDD 2 HDD 3 HDD 4 POWER OPERATE Extension Unit WJ-HDE q Error indicator [ERROR] r HDD access indicators [HDD 1] [HDD 2] [HDD 3] Lights when an error occurs. Refer to Troubleshooting [HDD 4] for details.

  • Page 5: G Rear View

    G Rear View SIGNAL GND POWER AC IN y Serial in connector [IN] !0 Power switch [POWER] Connect the WJ-HD300 series digital disk recorder or Turn on the power of the unit with this switch before other extension unit with the supplied serial cable. turning on the power of the digital disk recorder, or turn them on simultaneously.

  • Page 6: G Inside The Front Lid

    I Specifications Required power: 220 V AC - 240 V AC 50 Hz Power consumption: 85 W (including 4 HDDs when installed) Interface: 2-wire serial, 480 Mbps logical speed Operating temperature: +5 °C to +45 °C (41 °F to 113 °F) Operating humidity: Less than 85 % Dimensions:...
