Connecting your speaker cables
The Z906 comes with five speaker cables: two 7.6-meter
cables for the rear satellites and three 4.6-meter cables
for the front and center satellites. When connecting
your speakers, the control console, and your audio source,
make sure the power to the system is off.

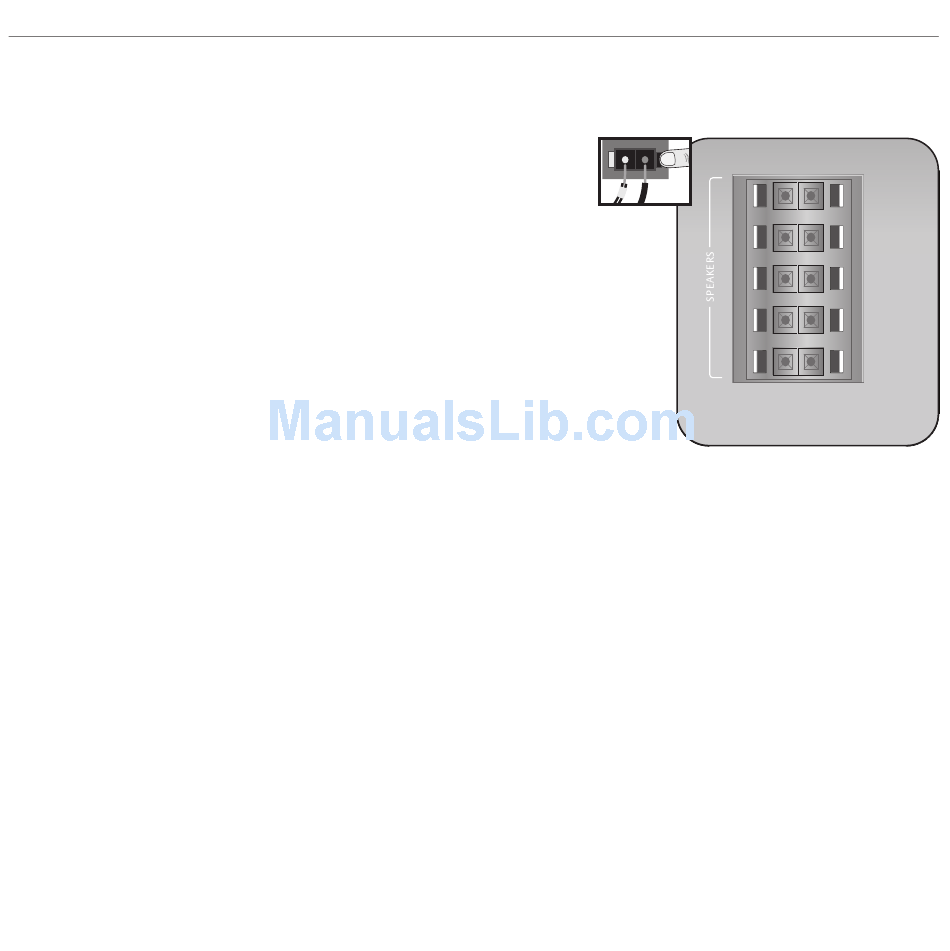

Connect the speaker cables – Connect your satellites
to the subwoofer using the speaker cables. Push the tab
on the spring clip, insert the wire into the connector,
and release the tab. Be sure that you match the wire
color (red or black) to the spring clip colors on both the
subwoofer and the satellite.
Connect the control console DB-15 cable – Connect
the control console DB-15 cable to the corresponding DB-
15 pin connector jack on the subwoofer.
Logitech Surround Sound Speakers Z906
®
REAR LEFT
REAR LEFT
REAR RIGHT REAR RIGHT
FRONT LEFT FRONT LEFT
FRONT RIGHT
FRONT RIGHT
CENTER
CENTER
English 7
