Arico TC Series Instruction Manual

TC Series Temperature Controllers
Instruction manual
Thank you for purchasing model TC SERIES
Temperature Controller.
Before installing, connecting or using the instrument,
please go through this instruction manual
carefully and use the unit in proper manner.


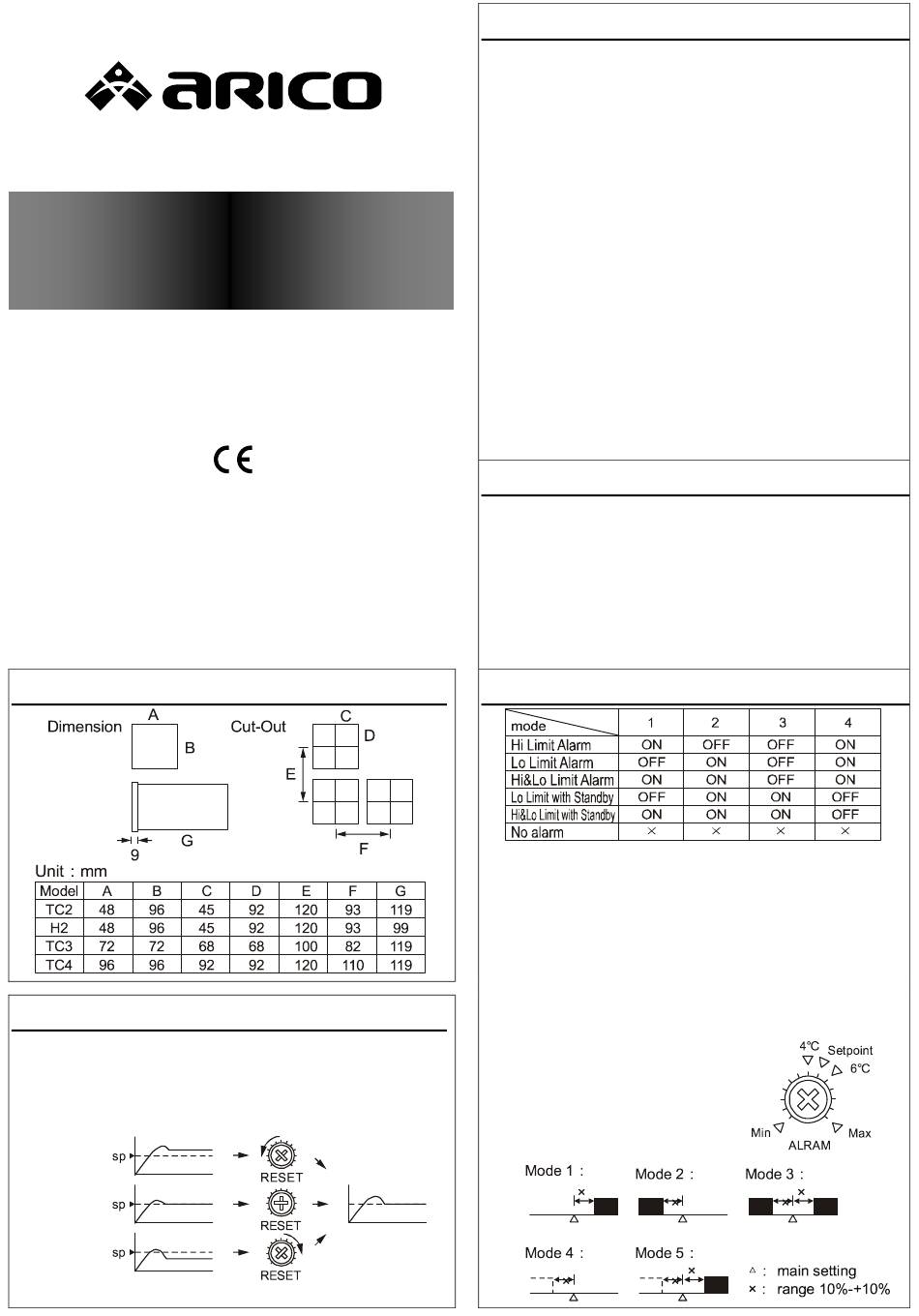

Dimension & Cut-Out

RESET (For Adjusting OFFSET)
In proportional action, the OFFSET could be
adjusted by resistor. Turn right is increase and left is
decrease.
VNA0000000

Specification
1. Input Type：Thermocouple K、J
2. Setting Accuracy：±0.5% of full scale
3. Indication Accuracy：±0.5% of full scale
4. Control Mode：ON/OFF action、proportional
action
5. Proportional Band：±3% of full scale
6. Proportional Recycle：Relay output 17sec、
Voltage output 2sec
7. Reset Range：±3% of full scale
8. Ambient Temperature：-10~+55℃
9. Supply Voltage：110/220VAC±5% 50~60Hz
10. Output：
Relay output: 250V/5A
Digital voltage output: DC0,6V/20mA

Faceplate description
1. ON / OFF：ON --Green OFF--Red
2. RESET：Adjust OFFSET for P-action
(Proportional type)
3. TC B：The thermocouple break
4. HEAT B：The heater break.
Ver.:1.0.5
5. ALARM：alarm for temperature

Temperature Alarm
The present temperature is 100℃, we want to set
Hi Limit Alarm, The alarm will work when the
present temperature exceed 105℃, we can set
the alarm with the following steps:
1. Press the DIP-button 1,4 to "ON"
2. Switch the resistor ALARM to the end of left
3. Lower the set point to 95℃
4. Adjust the resistor ALARM
from left to right until the
ALARM indicator is ON
5. Restart the temperature
controller for operation
