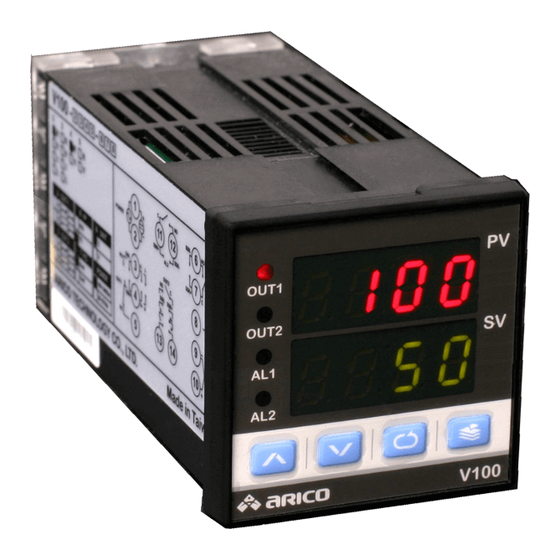

V Series Temperature Controllers
User's manual
Thank you for purchasing model V Series PID
Temperature Controller.
Before installing, connecting or using the instrument,
please go through this instruction manual
carefully and use the unit in proper manner.
VNA0000006
(21)Specifications
1
. Power Supply:
100~240VAC±10%, 50/60HZ
2.
Display:
2 * 4
digits
3.
Key: machinery keys
4
4.
Accuracy:
0.5%
full scale (
5.
Main Input:
TC: J、K       RTD: Pt100
6.
Output:Main output
:

Relay:
250V NO:7A / NC:5A
  Digital.
Voltage:
DC24V/20mA

Analog volt.:
0~10V,0~5V,1~5V

Analog current:
0~20mA,4~20mA
Alarm1/2 & Aux.outputl:
Relay:250V NO:7A / NC:5A
Digital Voltage:DC24V/20mA
(* V Series output for aux. and alarm1/2 : 250V/5A)
7.
Function:Heating and cooling
8.
Control Mode:
ON/OFF, PID
9.
Alarm Mode:10
10.
Ambient:Temperature:

Humidity:
10%~80%
Ver.:1.0.9
25℃)
0~55℃(32℉~130℉)
(non-condensing)
ARICO Technology Co., Ltd. reserves the right to
make any kind of design or functional modification
at any moment without prior notice.
Website:www.arico.com.tw E-mail:info@arico.com.tw
(22)Wiring
V100
V200、V500
V300
V400

Advertisement

loading
Need help?

Need help?

Do you have a question about the V100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arico V100

  • Page 1 User's manual Thank you for purchasing model V Series PID Temperature Controller. ARICO Technology Co., Ltd. reserves the right to Before installing, connecting or using the instrument, make any kind of design or functional modification please go through this instruction manual at any moment without prior notice.
  • Page 2 (11)Faceplate (12)Key Operation 1、Entry into level select mode and select level, and press into parameter mode. 2 、In parameter mode, press level key leave parameter mode to Level select mode. 3、In setting mode, press level key for saving parameter and return to parameter mode.
  • Page 3 TC type PT type The unit : 1: Mode 4 / 5:Alarm 1 / 2 4. Temperature Offset Open Short V100:48 × 48 mm None : The tem -99~+99 perature offest range : V200:48 × 96 mm Short Open Relay ( * ) :...
  • Page 4: Parameter Description

    (36)Parameter Configuration Flow Chart Table 1 Output control mode Main : PID Aux. : PID SV:default=50C Main : on/off Aux. : PID Main : PID Aux. : on/off Level 2 Level 4 Level 3 Level 1 Main : on/off Aux. : on/off Table 2 Output heating &cooling control mode Manual O/P mode Main :heating Aux.
