Removing and installing pan-
els

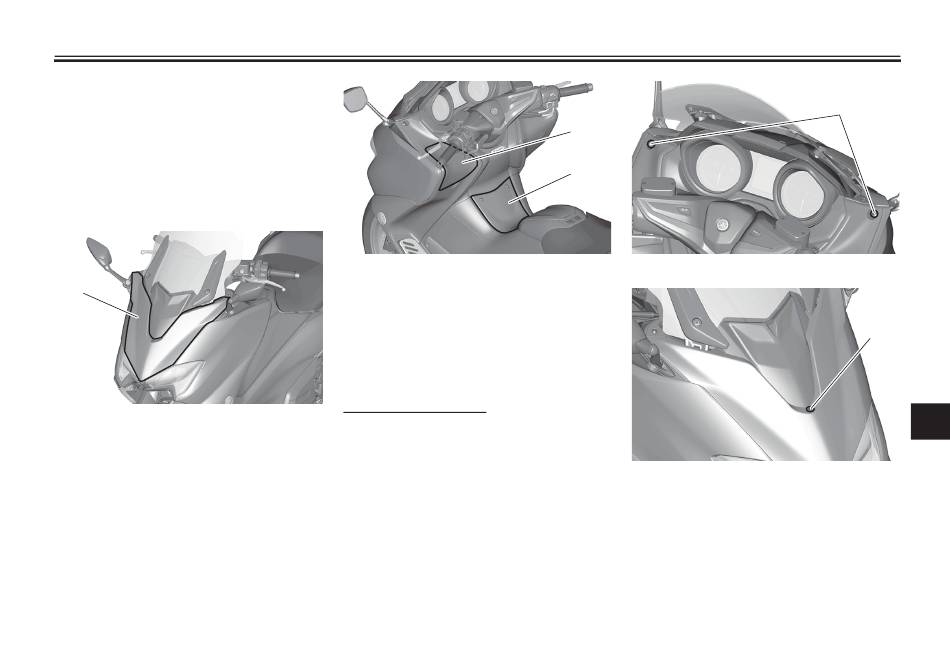

The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
1
1. Panel A
Periodic maintenance and adjustment
EAU18773
1. Panel B
2. Panel C
Panel A
To remove the panel
1. Remove the screws.
1
2
1. Screw
EAU77482
1. Screw
2. Release the sides of the panel by
9-9
1
pulling its upper left and right
sides to unhook them as shown.
1
9
