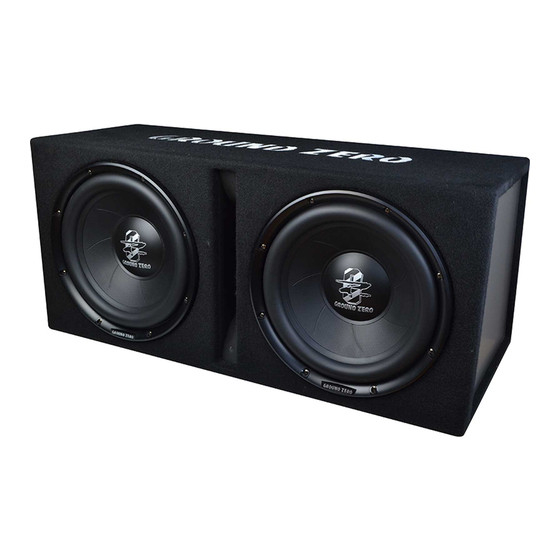

IRIDIUM SERIES
Active Vented Subwoofer
GZIB 2.30BR-ACT
Anleitung / Owner´s manual
(AWV3.0)
Ausstattungsmerkmale / Features
• Hochwertiger Bassreflex Subwoofer
• KLIPPEL
®
optimiert
• IMPP Membran mit 3D-Wabenstruktur
• Massives Gehäuse aus MDF
• Class D MOSFET Verstärker
• Tiefpassfilter (40 – 120 Hz)
• Stereo Hochpegel-Eingang mit Auto-On Funktion
• Regelbare Bass-Anhebung (Bass Boost)
• Strömungsoptimierter Basstunnel
• Optionale Kabelfernbedienung (GZTA Bassremote)
o High-Quality vented subwoofer
o KLIPPEL
®
optimized
o IMPP cone with 3D-honeycomb structure
o Solid enclosure from MDF
o Class D MOSFET amplifier
o Low pass filter (40 – 120 Hz)
o Stereo high-level input with auto-on function
o Adjustable bass boost control
o Flow optimized bass tunnel
o Optionally available wire remote control (GZTA Bassremote)
IRIDIUM SERIES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ground Zero GZIB 2.30BR-ACT
Summary of Contents for Ground Zero GZIB 2.30BR-ACT
- Page 1 IRIDIUM SERIES Active Vented Subwoofer GZIB 2.30BR-ACT Anleitung / Owner´s manual (AWV3.0) Ausstattungsmerkmale / Features • Hochwertiger Bassreflex Subwoofer • KLIPPEL ® optimiert • IMPP Membran mit 3D-Wabenstruktur • Massives Gehäuse aus MDF • Class D MOSFET Verstärker • Tiefpassfilter (40 – 120 Hz) •...
-
Page 2: Einleitung / Introduction
Anlage sowie deren Einbau und Abstimmung den Fachhandel oder eine spezialisierte Fachwerkstatt aufzusuchen. Thank you for choosing a great GROUND ZERO product! We hope you will enjoy this product from the IRIDIUM series. This owner´s manual contains information you need to use this product. Please read it carefully in order to achieve the best possible result. -
Page 3: Sicherheitshinweise / Safety Instructions
Music systems with high amplifier output power can reach levels of 130 dB or more. Extreme levels can also hinder the perception of important traffic noises and distract from what is happening on the road. Ground Zero GmbH and its sales partners expressly assume no responsibility for hearing damage, physical damage or any damage to property or consequential damage resulting from improper or careless use or improper installation of its products. -
Page 4: Technische Daten / Specifications
GROUND ZERO GZIB 2.30BR-ACT Technische Daten / Specifications model Modell / GZIB 2.30BR-ACT / speaker diameter Lautsprecherdurchmesser (2x) 30 cm / 12“ impedance Impedanz / 2x 2 Ohm / ohms cone Membran / IMPP max. output power Max. Ausgangsleistung /... - Page 5 GROUND ZERO GZIB 2.30BR-ACT Anschlüsse und Einstellungen / Connections and functions Feature Ausstattungsmerkmal Betriebsanzeige Power indicator Diese leuchtet im Betriebszustand Lights up in operation mode Störungsanzeige Protection indicator Diese leuchtet im Fall einer Störung oder Überhitzung Lights up in case of a defect or overheating...
-
Page 6: Troubleshooting Guide
GROUND ZERO GZIB 2.30BR-ACT Belegung des Hochpegeleingangs / High level input connection Cable color Connection Kabelfarbe Anschluss grey grau rechter Kanal (-) right channel (-) grey/black grau/schwarz rechter Kanal (+) right channel (+) weiß linker Kanal (-) white left channel (-) white/black weiß/schwarz... - Page 7 Some music styles require higher levels while others prefer the soft tones. GROUND ZERO considers all the different wishes of customers during the development of new products. Along with this, the target is to create the most realistic sound, to transfer the soul of the music and the intention of the performer.
