IRIDIUM-SERIES
AMPLIFIER
OWNER'S MANUAL

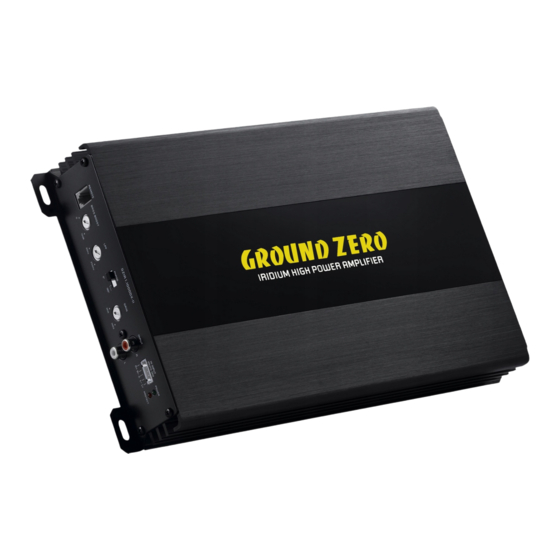

GZIA 1.1000DX-II
Class D Mono Amplifier
1 Ohm stable
Power & Protection indicator
Bass Boost 0 – 12 dB (45z)
Variable lowpass
Phaseshift switch 0 / 180°
Auto-On @ High Level Input
Adjustable input sensitivity
Soft delayed remote turn- on
Bass remote
Thermal / Short / Overload protection
Features
