CONSUMER SAFETY INFORMATION
 Read this manual before installing and operating this appliance.
 Failure to follow these instructions may result in electric shock, fire property,
or personal injury.
 Do not store or use gasoline or other flammable liquids in the vicinity of this
appliance.
Electric Fireplace
Model No.:
□ IF-40FSB □ IF-50FSB □ IF-60FSB
Email: mjy941218@hotmail.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEARTLAND IF-40FSB and is the answer not in the manual?

Questions and answers

Related Manuals for Clihome HEARTLAND IF-40FSB

Summary of Contents for Clihome HEARTLAND IF-40FSB

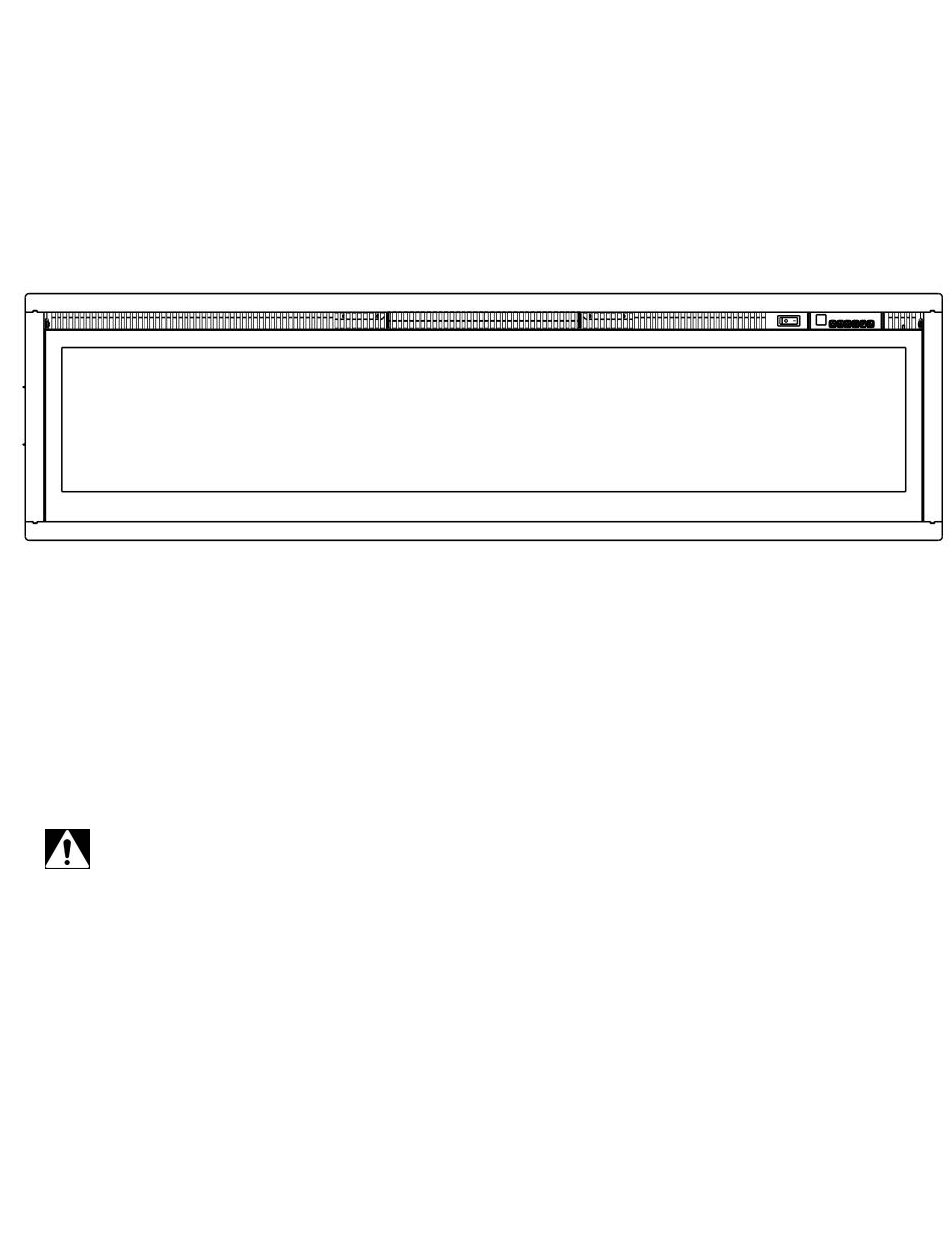

  • Page 1 Electric Fireplace Model No.: □ IF-40FSB □ IF-50FSB □ IF-60FSB Please contact our customer service team for help first. Email: mjy941218@hotmail.com CONSUMER SAFETY INFORMATION  Read this manual before installing and operating this appliance.  Failure to follow these instructions may result in electric shock, fire property, or personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3 Blockage.Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.  ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.  NEVER use a wall mount bracket from another manufacturer. ...

  • Page 4: Parts & Hardware

    sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible. You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape measure; electric drill; 1/4” wood drill bit, hammer. PARTS & HARDWARE B. Wood Screws C.

  • Page 5: Installation And Assembly

    " " " " " " " 13.4 48.6 12.0 7.87 46.0 IF-50FSB 127.0cm 34.1cm 14.2cm 123.4cm 30.6cm 20.0cm 116.8cm " " " " " " " 13.4 58.6 12.0 7.87 56.0 IF-60FSB 152.4cm 34.1cm 14.2cm 148.8cm 30.6cm 20.0cm 142.2cm Installation and Assembly Your appliance is a wall-mounted, recessed and /or mantel installed appliance.
  • Page 6 RECESSED TO WALL INSTALLATION ( Tips:Wall bracket removing is NOT required. STEP 1 Select a dry wall to open a hole for fireplace box. Figure (A) Figure (A) Hole cut size Size of hole as below chat-Framing Hole Size Framing Hole Size Model Number IF-1340 39.1"(99.2cm)
  • Page 7 STEP 2 Remove two screws on both sides of the fireplace at front corner. Figure (C) Figure (C) STEP 3 Take off the front tempered glass of the fireplace. Figure (D) Figure (D)
  • Page 8 STEP 4 Take foam out of the fireplace. Figure (E) Figure (E) STEP 5 Have two people to move the fireplace box to the wall hole or fireplace mantel. Figure(F) If the appliance is fully recessed into the wall: Figure (F)
  • Page 9  Use the 4 screws(provided) to lock the appliance into wall with the existing two side flanges, Figure(G) Figure(G) STEP 6 Put carbon log or crystal stone to bed. Figure (H) Figure(H)

  • Page 10: Wall Mounted Installation

    STEP 7 Place the front panel lock the appliance. Figure (I) Figure(I) WALL MOUNTED INSTALLATION Due to many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. STEP 1 Select a location that is not prone to moisture and is located at least 36"(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 11 Figure(b) STEP 4 Take the glass panel out of the fireplace box. Place it in a soft and clean place. Figure (c) STEP 5 Take foam(A) out of the fireplace. Figure(d) Figure (c)
  • Page 12 Figure (d) STEP 6 Mark out location, then mount the bracket(part e) onto the wall using the supplied screws. This bracket MUST have the hooks facing upward and be level. Figure(e) Figure(e) NOTE: It is strongly recommended that the mounting bracket(part e) be screwed into the wall studs where possible.
  • Page 13 Fasten the metal bracket (F) at the back of fireplace with 2pcs of 4x8mm screws, the other end to the wall with 1pc of drywall anchors. STEP 7 With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance.
  • Page 14 Free Standing Option  Remove the free standing legs from the left and right side of the fireplace. Figure (1) Fig.1  Lay the heater on the floor or a table  Install the base with 6pcs screws ( screws is on the bottom of the fireplace) as provided Figure(2) Fig.2 LOG-SET/CRYSTAL EMBER INSTALLATION (Note: Please make the installation according to the embers which you bought or selected.)

  • Page 15: Methods Of Operation

    * Then place the crystal embers carefully into the bottom tray on the front of the appliance as illustrated. Apply an even layer from side to side. Figure 1 WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product.
  • Page 16 Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and heed all warnings. Remote Turn on switch button first...
  • Page 17 BUTTON FUNCTION ACTION&INDICATION ON: Enables control panel functions and remote 1. Press once. Indicator light turns on. Power control.Turn on flame effect. turns on. All functions enabled. OFF: Disables control panel functions and remote 2. Press again. Indicator light turns off. Power POWER control.

  • Page 18: Care And Maintenance

    Remote Control Battery Information  With 1x CR2032 batteries. NOTE: Remote control battery used depends on the remote control type which selected above. NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. CARE AND MAINTENANCE Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before...

  • Page 19: Troubleshooting

     Store heater in a clean dry place when not in use. WARNING! No other servicing should be performed by the consumer. Do not attempt to service the unit yourself. Troubleshooting WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SEVICE PERSON SHOULD SERVICE AND PEPAIR THIS ELECTRIC APPLAINCE.
