CONSUMER SAFETY INFORMATION
 Read this manual before installing and operating this appliance.
 Failure to follow these instructions may result in electric shock, fire property,
or personal injury.
 Do not store or use gasoline or other flammable liquids in the vicinity of this
appliance.

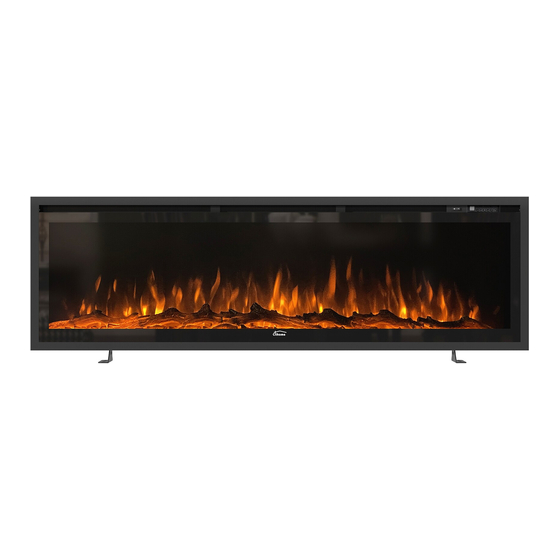

Electric Fireplace
Model No.:
□ IF-50FSB □ IF-60FSB □ IF-70FSB
Service contact:
service@alipuinc.com
Telephone: 303-747-4421

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IF-50FSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clihome IF-50FSB

Summary of Contents for Clihome IF-50FSB

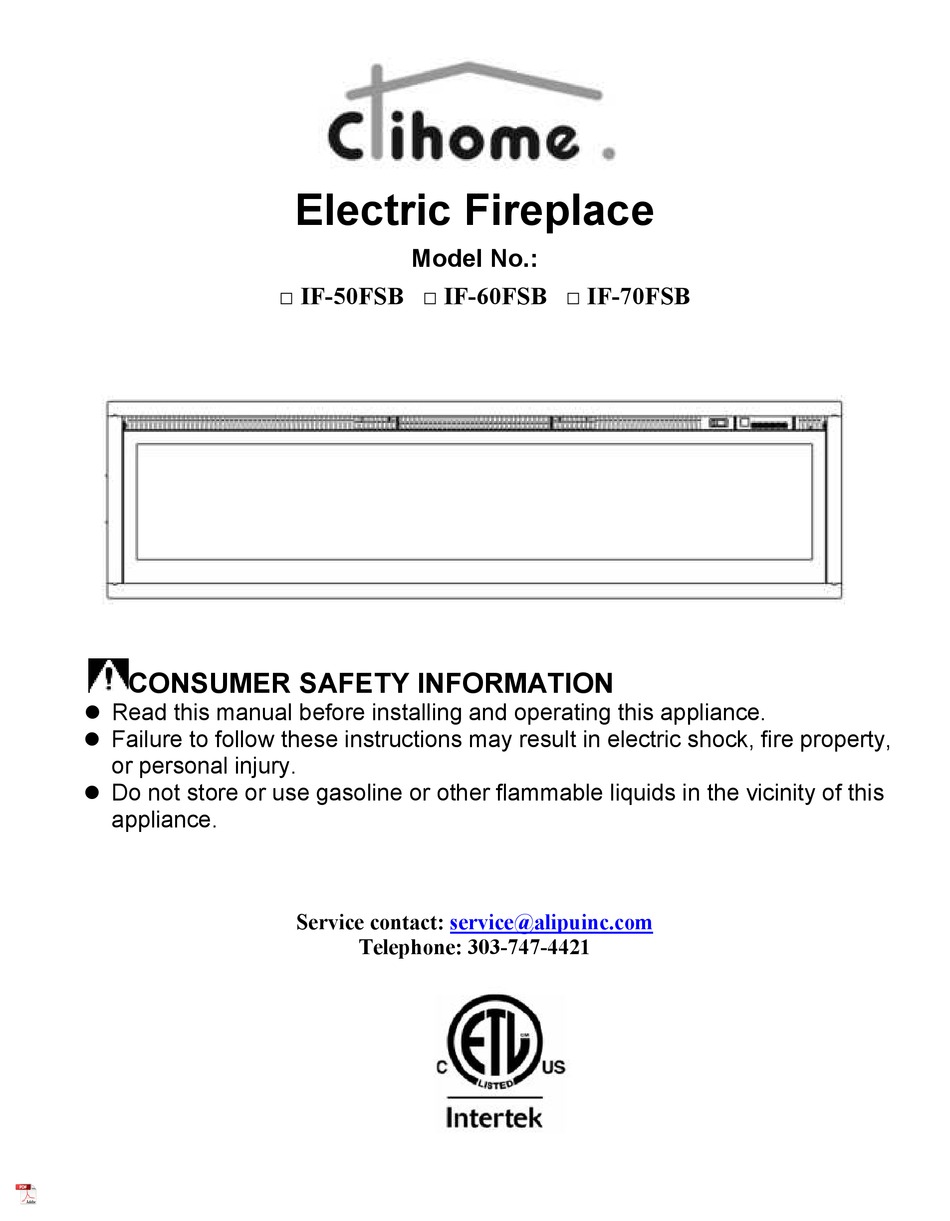

  • Page 1 Electric Fireplace Model No.: □ IF-50FSB □ IF-60FSB □ IF-70FSB CONSUMER SAFETY INFORMATION  Read this manual before installing and operating this appliance.  Failure to follow these instructions may result in electric shock, fire property, or personal injury.  Do not store or use gasoline or other flammable liquids in the vicinity of this appliance.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.  NEVER use a wall mount bracket from another manufacturer.  This product is not intended to be a primary heat source. It is for supplemental heat only. ...

  • Page 4: Parts & Hardware

    You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape measure; electric drill; 1/4” wood drill bit, hammer. PARTS & HARDWARE B. Wood Screws C. Wall Anchors D. 4x8mm Screws (11pcs) (11pcs) (2pcs)l E. Wall Bracket F.

  • Page 5: Product Dimensions

    PRODUCT DIMENSIONS Model Number " " " " " " " 17.7 48.7 16.3 12.2 46.0 IF-50FSB 127.0cm 45.0cm 14.2cm 123.8cm 41.5cm 30.9cm 116.8cm " " " " " " " 17.7 58.7 16.3 12.2 56.0 IF-60FSB 152.4cm 45.0cm 14.2cm 149.2cm...
  • Page 6 STEP 1 Select a dry wall to open a hole for fireplace box. Figure (A) Figure (A) Hole cut size Size of hole as below chat-Framing Hole Size Framing Hole Size Model Number 48.7"(123.8cm) 16.3"(41.5cm) 5.98"(15.2cm) IF-50FSB 58.7"(149.2cm) 16.3"(41.5cm) 5.98"(15.2cm) IF-60FSB 70.7"(179.7cm) 16.3"(41.5cm) 5.98"(15.2cm) IF-70FSB STEP 2 Remove two screws on both sides of the fireplace at front corner.
  • Page 7 Figure (C) STEP 3 Take off the front tempered glass of the fireplace. Figure (D) Figure (D) TEP 4 Take foam out of the fireplace. Figure (E)
  • Page 8 Figure (E) STEP 6 Have two people to move the fireplace box to the wall hole or fireplace mantel. Figure(F) If the appliance is fully recessed into the wall: Figure (F)  Use the 4 screws(provided) to lock the appliance into wall with the existing two side flanges, Figure(G)
  • Page 9 Figure(G) STEP 7 Put carbon log or crystal stone to bed. Figure (H) Figure(H) STEP 7 Place the front panel lock the appliance. Figure (I)

  • Page 10: Wall Mounted Installation

    Figure(I) WALL MOUNTED INSTALLATION Due to many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. STEP 1 Select a location that is not prone to moisture and is located at least 36"(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 11 Figure(b) STEP 4 Take the glass panel out of the fireplace box. Place it in a soft and clean place. Figure (c) STEP 5 Take foam(A) out of the fireplace. Figure(d) Figure (c)
  • Page 12 Figure (d) STEP 6 Mark out location, then mount the bracket(part e) onto the wall using the supplied screws. This bracket MUST have the hooks facing upward and be level. Figure(e) Figure(e) NOTE: It is strongly recommended that the mounting bracket(part e) be screwed into the wall studs where possible.
  • Page 13 Fasten the metal bracket (F) at the back of fireplace with 2pcs of 4x8mm screws, the other end to the wall with 1pc of drywall anchors. STEP 7 With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance.
  • Page 14 Free Standing Option  Lay the heater on the floor or a table  Install the base with 6pcs screws ( screws is on the bottom of the fireplace) as provided...
  • Page 15 LOG-SET/CRYSTAL EMBER INSTALLATION (Note: Please make the installation according to the embers which you bought or selected.) * Glass front must be removed and the appliance must be mounted in its final location before the log- set/crystal embers are installed. * If your fireplace come with log-set, remove the log-set from the package, put it to the fireplace designed place.

  • Page 16: Methods Of Operation

    WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. POWER Make sure the ON/OFF switch, located on the control panel, is in the OFF position.Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not loose.NEVER exceed the maximum amperage for the circuit.
  • Page 17 Turn on switch button first BUTTON FUNCTION ACTION&INDICATION ON: Enables control panel functions and remote 1. Press once. Indicator light turns on. Power control.Turn on flame effect. turns on. All functions enabled. OFF: Disables control panel functions and remote 2. Press again. Indicator light turns off. Power POWER control.

  • Page 18: Care And Maintenance

    3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If there are, use a vacuum to clean the vent areas. 4. With the POWER switch in the OFF position, plug the power cord back into the outlet. 5.

  • Page 19: Troubleshooting

    Electrical and Moving Parts:  The fan motors are lubricated at the factory and will not require lubrication.  Electrical components are integrated in the fireplace and are not serviceable by the consumer. Storage:  Store heater in a clean dry place when not in use. WARNING! No other servicing should be performed by the consumer.
  • Page 20 1. Replace batteries remote control. 1. Low batteries. 2. Aim control at sensor located Remote control does 2. Not aiming control correctly. directly behind glass screen in center not work. 3. Defective remote control and of unit just above logs. /or sensor.
