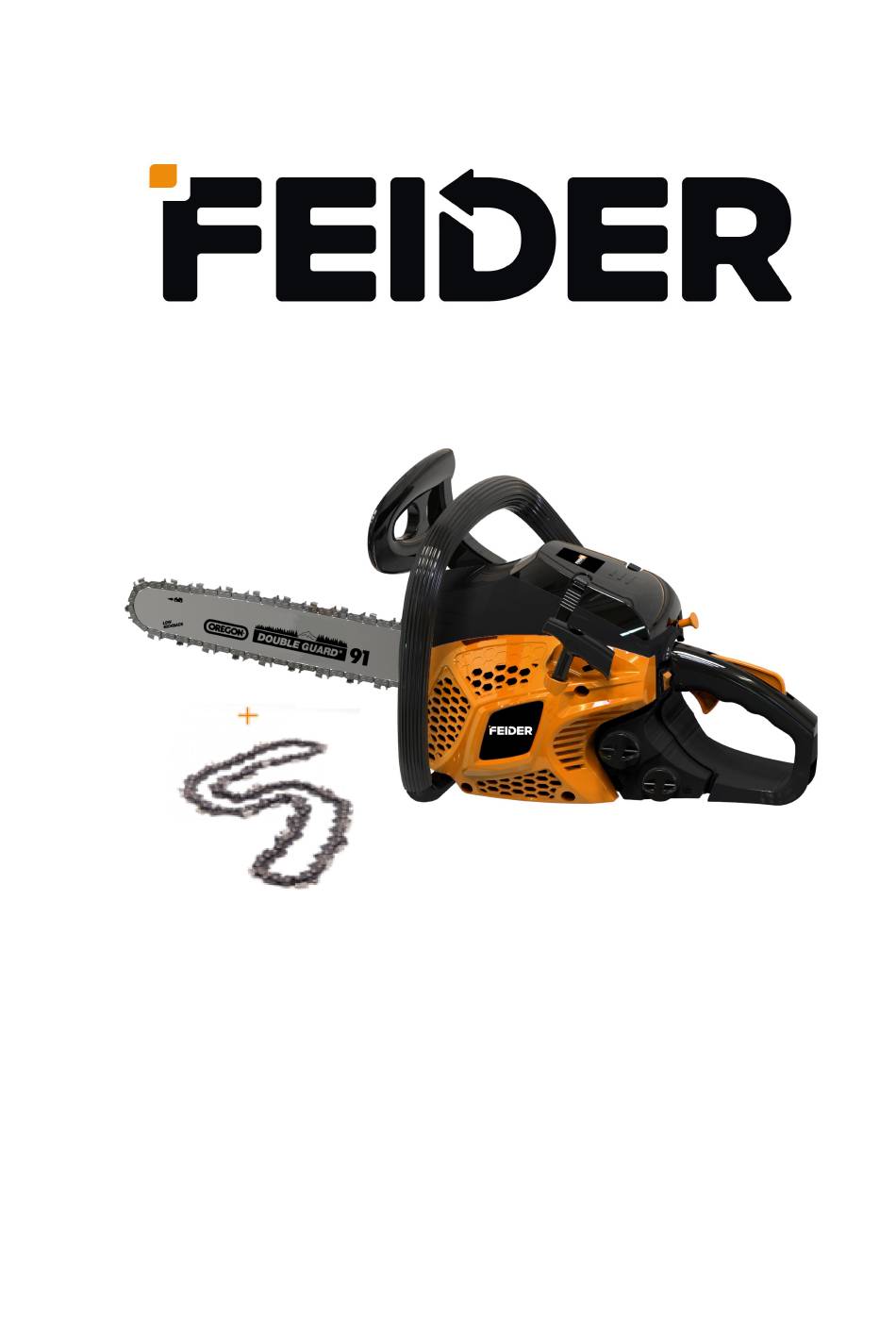

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL CHAINSAW FTRTPRO40 -2C USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT........................... 7 3. ASSEMBLY............................. 9 4. REFUELLING............................10 5. OPERATION............................11 6. MAINTENANCE AND STORAGE..................... 16 7. DECLARATION OF CONFORMITY....................19 8. WARRANTY............................20 9. PRODUCT FAILURE........................... 21 10. WARRANTY EXCLUSIONS......................22... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. - Page 4 “Technical Information” section of this manual or ask your dealer for advice. The risks of slipping and skidding must be foreseen as there is a high risk of kickback. Do not lean. Keep a good balance at all times. Do not lose your balance at the end of a cut. ...
- Page 5 hand" and "left hand" positions is reversed. When cutting a branch that is under stress, pay attention to the risk of elastic return. When the tension of the wood fibers is released, the spring-loaded limb may strike the operator and / or project the chain saw out of control.
- Page 6 Store the tool where fuel vapor will not reach a flame or spark. When transporting and storing, always place the tool in its transport guard and protective device on it. Causes of rebounds and prevention by the operator ...
-
Page 7: Your Product
Symbols Warning symbol. Read and refer to these operating instructions. Wear safety equipment that includes protective helmet and protective goggles. Guarantee sound power level The contact of the end of the bar with any object must be avoided. Do not operate the tool with one hand. Always hold it with both hands. - Page 8 The chain brake is a device that automatically stops the chain in case of backward movement, causing the saw to jump. The chain is the cutting device, installed on the chain guide. b. Technical data Model FTRTPRO40-2C Type of engine RY1E40F Fuel Tank Volume 260 cm³...
-
Page 9: Assembly
3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. Note: the spiked bumper is already mounted on the tool. 1) Pull the lever of the hand wheel and to unscrew the hand wheel. Remove then the chain cover. 2) Install the guide and mount the chain on the pinion and guide in the direction shown below 3) Attach the bracket and screw it in place. -
Page 10: Refuelling
4. REFUELLING 1) Filling fuel tank WARNING: When filling the tank: The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. -
Page 11: Operation
c. Storage of fuel The fuel must be kept in a clean and safe container and always closed. If you are not using the product for a long time, remove the fuel mixture and add it to a container. Do not leave the fuel for a long time in the product. The fuel may clog the carburetor and the engine will not operate properly. - Page 12 Push the fuel pump several times (around 10 times). Pull the choke lever. It will close and the throttle will be moved to the starting position Hold the chainsaw firmly against the ground. Put the chainsaw: Either on the left side of your body holding the handle firmly with your left hand. Use your right hand to pull the starter rope ...
- Page 13 Push lightly the lock throttle (1) and then the accelerator throttle (2) to start working. b. Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. 1. Main settings a. Adjusting the carburetor The carburetor is preset at the factory.
- Page 14 d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 15 b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation.
-
Page 16: Maintenance And Storage
6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. - Page 17 e. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. f. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 18 h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To perform a normal cut, force on the tool#...
-
Page 19: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw FTRTPRO40-2C Serial number: 20240507320-20240507619 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/EU Directive on emissions (EU) 2016/1628 &... -
Page 20: Warranty
8 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 21: Product Failure
9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 23 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
