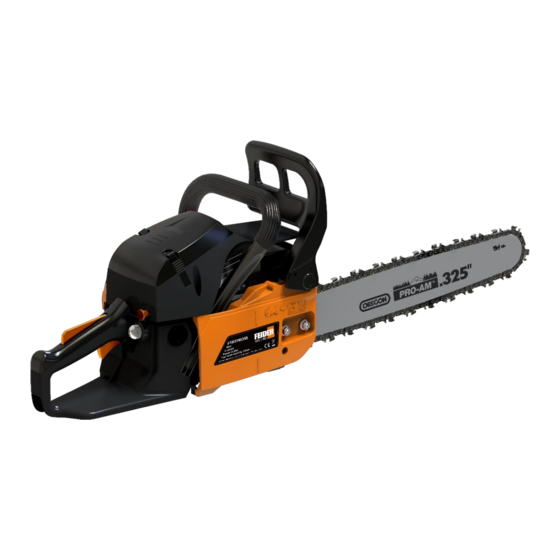

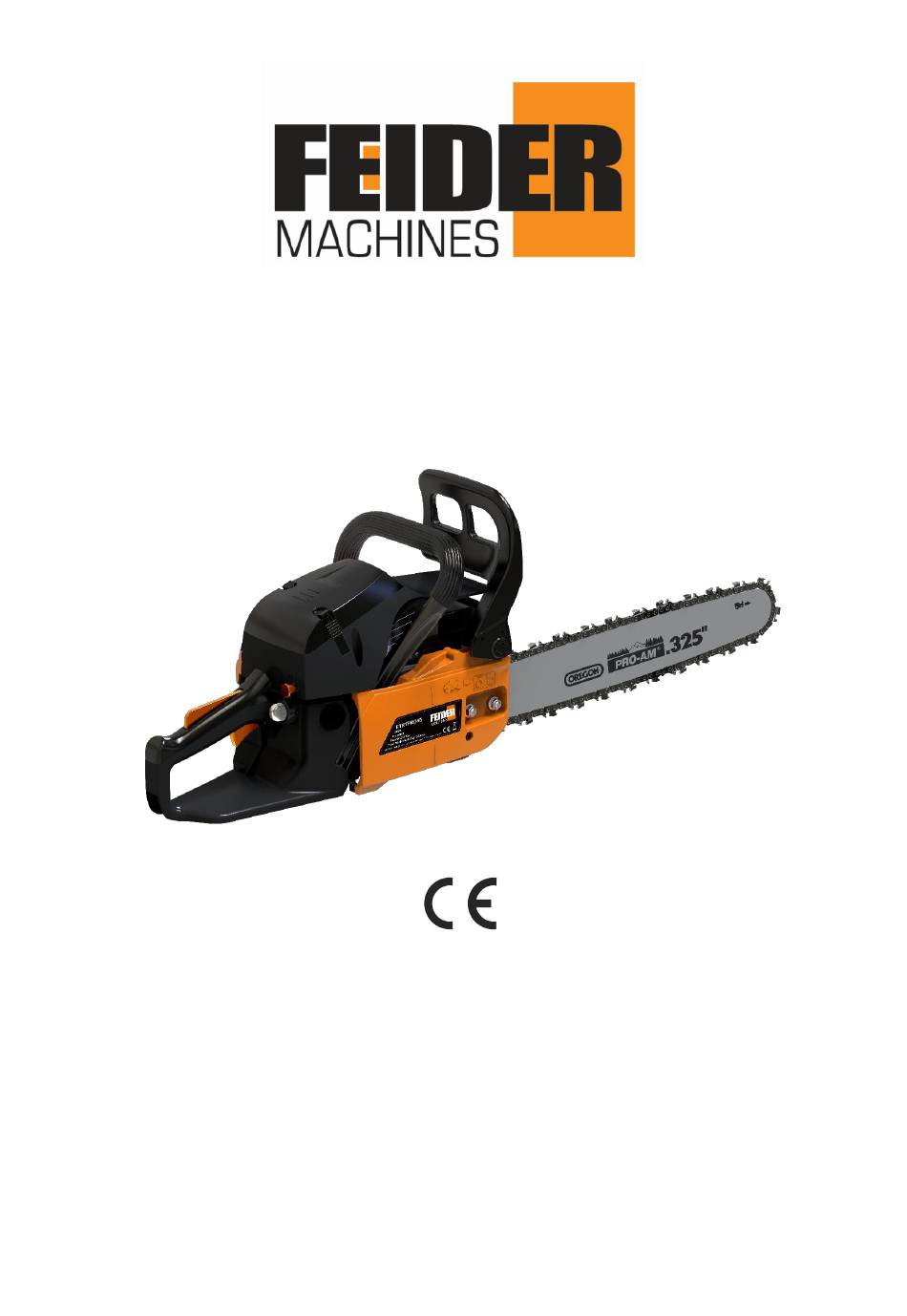

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTION MANUAL PETROL CHAIN SAW FTRTPRO55 BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France Warning: read the following instructions before using the machine Made in China - 2020...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS SECURITY INSTRUCTIONS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY... -
Page 3: Security Instructions
ORIGINAL INSTRUCTIONS 1. SAFETY WARNINGS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions. - Page 4 ORIGINAL INSTRUCTIONS Before using the product and after any shock, please check it for signs of wear or damage. Please carry out repairs if necessary. Always switch off the machine: Every time you leave the device unattended; Before releasing an obstruction; Before checking, cleaning or working on the product;...
- Page 5 ORIGINAL INSTRUCTIONS During maintenance and storage Stop the tool and wait until it stops. Make sure all moving parts have come to a standstill. Allow the machine to cool before performing inspection, adjustments, maintenance, servicing and storage. Store the tool where fuel vapor will not reach a flame or spark.
- Page 6 ORIGINAL INSTRUCTIONS Do not operate the tool with one hand. Always hold it with both hands. Wear protective gloves Wear protective foot wear. Do not use the tool under and in moist environment Intended use This chainsaw is intended for use in cutting wood and trees. Do not cut metal objects, sheet metal, plastic and any object and material that is not wood.
-
Page 7: Your Product
ORIGINAL INSTRUCTIONS 2. YOUR PRODUCT a. Description... - Page 8 The chain brake is a device that automatically stops the chain in case of backward movement, causing the saw to jump. The chain is the cutting device, installed on the chain guide. Technical data Model FTRTPRO55 Type of engine RY1E45F (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³...
-
Page 9: Assembly
ORIGINAL INSTRUCTIONS 3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover. - Page 10 ORIGINAL INSTRUCTIONS While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts. Rotate the chain with your hand to check that it is turning without excessive resistance and that it is properly tightened. Repeat the installation if the chain is not tight.
-
Page 11: Filling The Fuel Tank
ORIGINAL INSTRUCTIONS 4. REFUELLING 1) Fuel tank WARNING: When filling the tank: The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. -
Page 12: Operation
ORIGINAL INSTRUCTIONS 5. OPERATION IMPORTANT: Starting shall always be done with the chain brake activated. See on pages 15-16 how to achieve this. Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel Check the level of filling and refill when necessary. - Page 13 ORIGINAL INSTRUCTIONS Either on the right side of your body holding the handle firmly with your right hand. Use your left hand to pull on the starter rope. In both cases, the saw must remain away from the operator's body. Push lightly the lock throttle and then the accelerator throttle to start working.
- Page 14 ORIGINAL INSTRUCTIONS 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws. If these screws require readjustment, have the machine serviced by your service center. Stop the tool and tighten the needle L until it stops.
- Page 15 ORIGINAL INSTRUCTIONS c. Release of the chain brake To use the chain saw again, the chain brake must be released. This must be done machine off and cooled. Pull the shield until it returns to its original position. d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain.
- Page 16 ORIGINAL INSTRUCTIONS a. Felling of trees Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen. When the tree falls, shout or make a beep to alert people in the vicinity. When the shaft falls, you must move away from the cutting area.
-
Page 17: Maintenance And Storage
ORIGINAL INSTRUCTIONS 6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. - Page 18 ORIGINAL INSTRUCTIONS Check: Reverse the bar from time to time to avoid the effects of wear. The bar rail should always be in place. Use a ruler to observe it. If a gap is observed between them, then the rail is normal. Otherwise, the rail is worn out. A bar must be corrected or replaced.
- Page 19 ORIGINAL INSTRUCTIONS g. chain saw Check each time the cutter and cutting angles are as shown below. h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
-
Page 20: Declaration Of Conformity
BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw FTRTPRO55 Serial number: 20200727000-20200727149 Complies with the provisions of the Directive "Machine" 2006/42/EC and regulations National transposing it; Also complies with the following European directives:... - Page 21 ORIGINAL INSTRUCTIONS Philippe MARIE / PDG...
