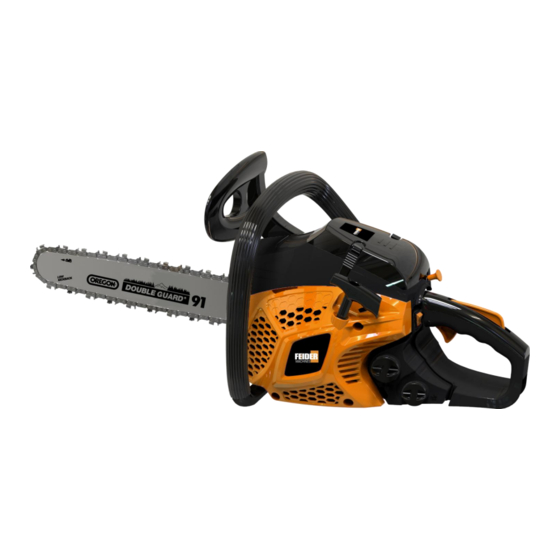

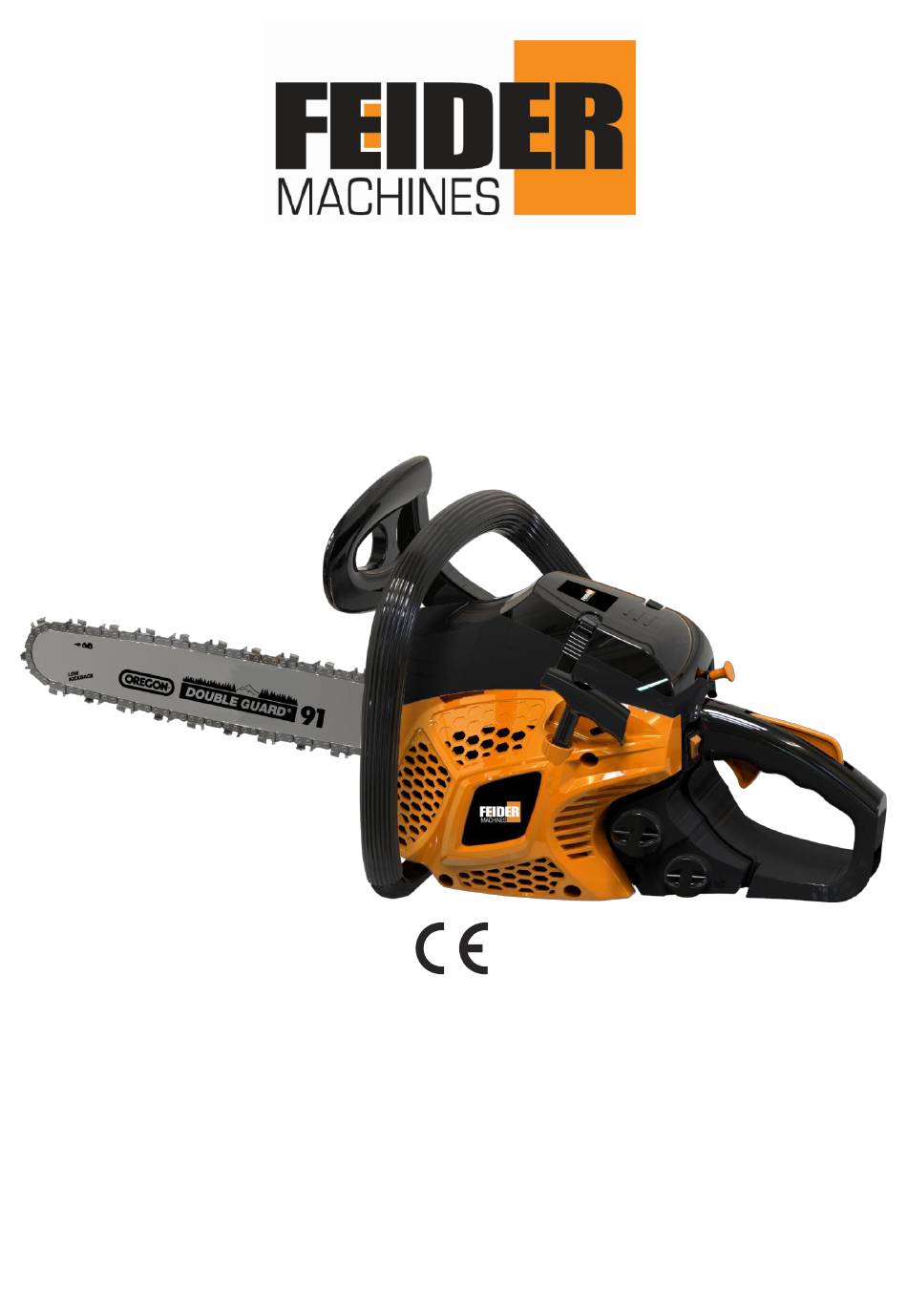

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTION MANUAL PETROL CHAIN SAW FTRTPRO40 BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France Warning: read the following instructions before using the machine Made in China - 2020...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS SECURITY INSTRUCTIONS YOUR PRODUCT ASSEMBLY REFUELLING OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY... -
Page 3: Security Instructions
ORIGINAL INSTRUCTIONS 1. SAFETY WARNINGS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions. - Page 4 ORIGINAL INSTRUCTIONS Before using the product and after any shock, please check it for signs of wear or damage. Please carry out repairs if necessary. Always switch off the machine: o Every time you leave the device unattended; o Before releasing an obstruction;...
- Page 5 ORIGINAL INSTRUCTIONS During maintenance and storage Stop the tool and wait until it stops. Make sure all moving parts have come to a standstill. Allow the machine to cool before performing inspection, adjustments, maintenance, servicing and storage. Store the tool where fuel vapor will not reach a flame or spark.
- Page 6 ORIGINAL INSTRUCTIONS Symbols Symbol warning of a warning Read and refer to these operating instructions Wear safety equipment that includes a helmet, protective helmet and protective goggles Guarantee sound power level This tool must be used by persons trained to cut down trees; Read this instruction manual! The contact of the end of the bar with any object must be avoided.
-
Page 7: Your Product
ORIGINAL INSTRUCTIONS 2. YOUR PRODUCT a. Description 1- Cover-rear handle 2- Trigger 3- Choke lever 4- Front handle 5- Front hand guard/Chain brake 6- Saw Chain 7- Oil vacuole 8- Brake 9- Chain adjusting tension 10- Stud bar 11- Chain guide The front hand guard is a device intended to protect the operator's hand against injuries caused by contact with the chain. - Page 8 ORIGINAL INSTRUCTIONS b. Technical data Model FTRTPRO40 Type of engine RY1E40F Fuel Tank Volume cm³ Oil tank volume cm³ Idle speed of the engine 3100±300/min Engine speed with clutch engage 4300/min Maximum power 1.4kW Displacement 41cm³ Maximum engine power speed...
-
Page 9: Assembly
ORIGINAL INSTRUCTIONS 3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. Note: the spiked bumper is already mounted on the tool. 1) Pull the lever of the hand wheel and to unscrew the hand wheel. Remove then the chain cover. 2) Install the guide and mount the chain on the pinion and guide in the direction shown below 3) Attach the bracket and screw it in place. -
Page 10: Refuelling
ORIGINAL INSTRUCTIONS 4. REFUELLING 1) Filling fuel tank WARNING: When filling the tank: The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. If fuel has been spilled, immediately stop refueling and do not start the engine. - Page 11 ORIGINAL INSTRUCTIONS c. Storage of fuel The fuel must be kept in a clean and safe container and always closed. If you are not using the product for a long time, remove the fuel mixture and add it to a container. Do not leave the fuel for a long time in the product.
-
Page 12: Operation
ORIGINAL INSTRUCTIONS 5. OPERATION Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel and useful. Check the level of filling and refill when necessary. a. - Page 13 ORIGINAL INSTRUCTIONS Hold the chainsaw firmly against the ground. Put the chainsaw: Either on the left side of your body holding the handle firmly with your left hand. Use your right hand to pull the starter rope Either on the right side of your body holding the handle firmly with your right hand. In both cases, the saw must remain away from the operator's body.
- Page 14 ORIGINAL INSTRUCTIONS b. Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. 1. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws.
- Page 15 ORIGINAL INSTRUCTIONS d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
- Page 16 ORIGINAL INSTRUCTIONS a. Felling of trees Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen. When the tree falls, shout or make a beep to alert people in the vicinity. When the shaft falls, you must move away from the cutting area.
-
Page 17: Maintenance And Storage
ORIGINAL INSTRUCTIONS 6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term. - Page 18 ORIGINAL INSTRUCTIONS e. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 19 ORIGINAL INSTRUCTIONS The chain saw must be switched off and locked before sharpening. Use a round file or sharpening device (see in store). Place the file on the tooth and push straight. Shift with the same movement. After sharpening all teeth, check if the teeth are sharp. 2.
-
Page 20: Declaration Of Conformity
Declaration of conformity BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw FTRTPRO40 Serial number: 20200726700-20200726849 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;...
