4RF Aprisa SRi Quick Start Manual

Hide thumbs Also See for Aprisa SRi:
Table of Contents

Advertisement

Quick Links

Download this manual

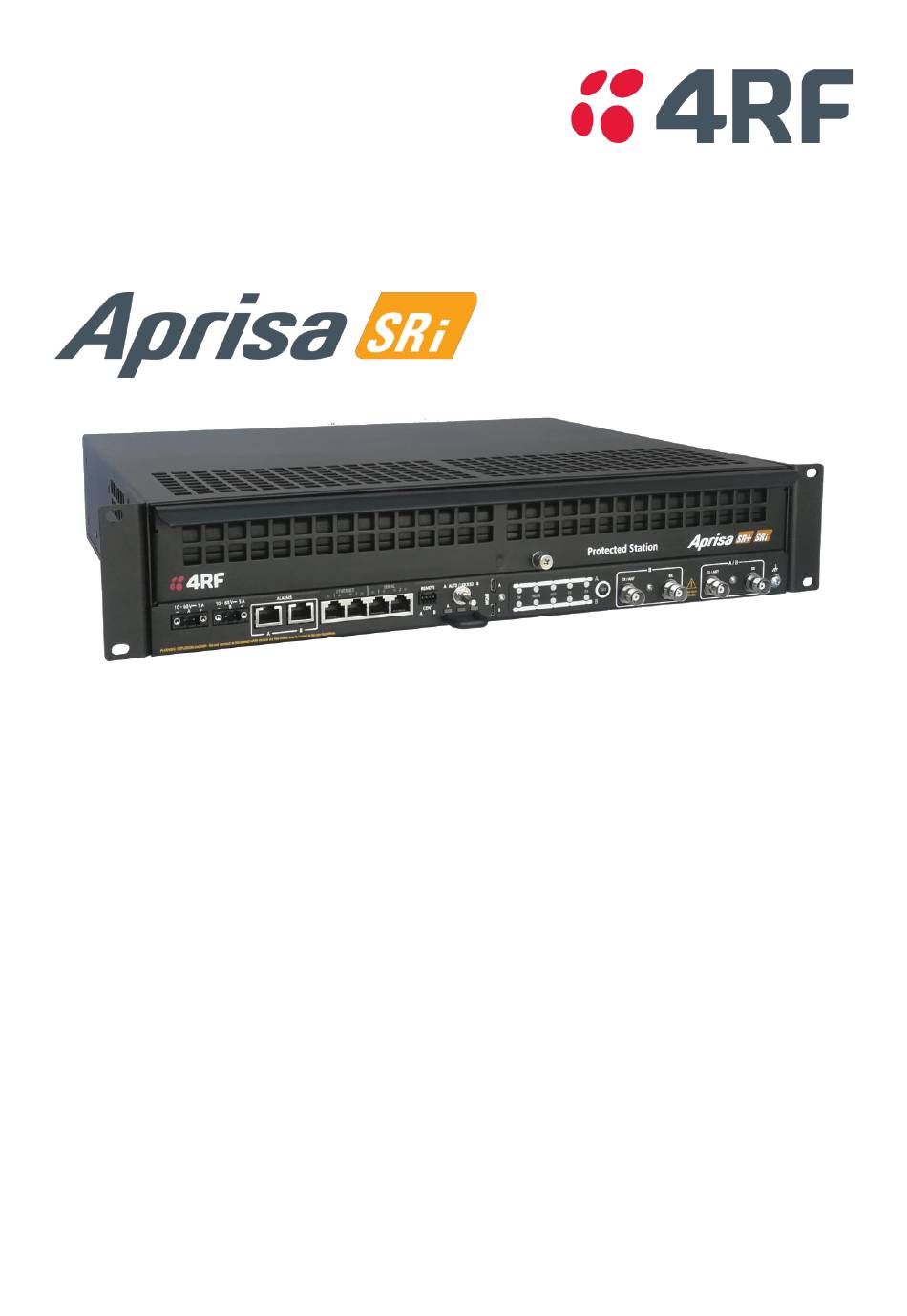

Quick Start Guide
Aprisa SRi Protected Station v2
May 2024
Version 1.1.0
Aprisa SRi Quick Start Guide – Protected Station v2 © 2024 4RF Limited. All rights reserved. This document is protected by copyright
belonging to 4RF Limited and may not be reproduced or republished in whole or part in any form without the prior written permission
of 4RF Limited. While every precaution has been taken in the preparation of this literature, 4RF Limited assumes no liability or errors
and omissions, or from any damages resulting from use of this information. The contents and any product specifications within it are
subject to revision due to ongoing product improvements and may change without notice. Aprisa and the 4RF logo are trademarks of
4RF Limited. All other marks are the property of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aprisa SRi and is the answer not in the manual?

Questions and answers

Related Manuals for 4RF Aprisa SRi

Summary of Contents for 4RF Aprisa SRi

  • Page 1 Version 1.1.0 Aprisa SRi Quick Start Guide – Protected Station v2 © 2024 4RF Limited. All rights reserved. This document is protected by copyright belonging to 4RF Limited and may not be reproduced or republished in whole or part in any form without the prior written permission of 4RF Limited.

  • Page 2: Table Of Contents

    2.1. Install the Aprisa SRi Protected Station and Connect the Protection Earth ..... 5 2.2. Connect the Antenna and Apply Power to the Aprisa SRi Protected Station ..6 2.3. Connect to the Aprisa SRi Protected Station (via SuperVisor or CLI) ..... 7 Setup the Aprisa SRi Protected Station ............

  • Page 3: Introduction

    The standby radio can be replaced without impacting traffic flow on the active radio. The Aprisa SRi radios can be any of the currently available Aprisa SRi radio frequency bands, channel sizes or interface port options. The Aprisa SRi Protected Station can operate as a base station, repeater station or remote radio.

  • Page 4: Led Display Panel

    Page 4 LED Display Panel The Aprisa SRi Protected Station has an LED Display panel which provides on-site alarms / diagnostics without the need for PC. The LEDs indicate the following conditions: MODE Flashing Radio has not registered Alarm present...

  • Page 5: Installation

    Installation The Aprisa SRi Protected Station is shipped to you in a box containing the following: • One Aprisa SRi Protected Station containing two Aprisa SRi radios pre cabled to the protection switch (part number ends with AE). • Two rack mounting brackets •...

  • Page 6: Connect The Antenna And Apply Power To The Aprisa Sri Protected Station

    Note: The radio fuses will blow if the connected power supply is over voltage, or the polarity is reversed. Spare fuses are located on the Protection Switch board (see the ‘Replacing Protection Switch Fuses’ section of the Aprisa SRi User Manual).

  • Page 7: Connect To The Aprisa Sri Protected Station (Via Supervisor Or Cli)

    At the command prompt >> type ‘set termEthController1IpAddress xxx.xxx.xxx.xxx’ and enter to change the IP address. The Protected Station is configured in the 4RF factory as a protected station. If for some reason it is not setup as a Protected Station, please see 'Creating a Protected Station' in the Aprisa SRi User Manual.

  • Page 8: Setup The Aprisa Sri Protected Station

    The zone frequencies are spaced at 62.5 kHz. You can now configure the remaining protected station and network parameters and settings. For more information, please refer to the Aprisa SRi User Manual available from the 4RF website https://www.4rf.com/secure (login required).

  • Page 9: Monitor The Aprisa Sri Protected Station Signal Strength

    Fault Management and Troubleshooting The Aprisa SRi supports extensive alarms for every section and building block of the device including the interfaces. SuperVisor allows user to view the main summary alarm at the top of the SuperVisor page which mimic the device LEDs and in addition all the detailed alarms of the device (see SuperVisor >...

  • Page 10: Performance Monitoring (Rf And Data Traffic)

    Performance Monitoring (RF and Data Traffic) The Aprisa SRi supports extensive performance monitoring statistics and diagnostic per device and per data ports. The Aprisa SRi Terminal, Serial, Ethernet, Radio, and User Selected Monitored Parameter results have history log views for both Quarter Hourly and Daily.

  • Page 11: Compliance Considerations

    +30 dBm The Aprisa SRi has a maximum mean output power of +26 dBm into a 50 ohm antenna which equates to a maximum peak power of +30 dBm PEP. To determine the maximum power to be set on the Aprisa SRi, the following installation...

  • Page 12: Canada

    Page 12 Canada This radio transmitter Aprisa SRi ISED: 6772A-SI902M160 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
