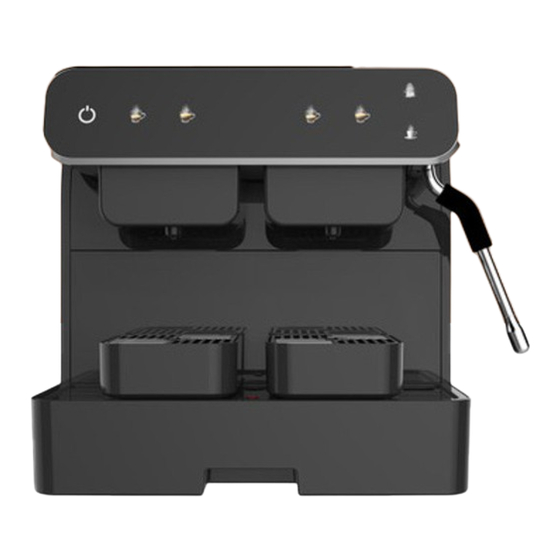

- Page 1 MEDAN Instruction manual Please read the instructions and safety regulations carefully before using the coffee machine.
- Page 2 Indexes User must read Machine parameters Brief introduction Parameter Basic Introduction Installation 4.1 Installation precautions: Usage method Check whether the water accumulation box group is installed in place before use Check if the water tank installed in place Check if the sliding cover is close Function Introduction Basic Introduction Engineering settings...
- Page 3 1. User must read Please carefully read the manual and precautions before use, and save the manual of this machine. This machine cannot be used outdoors, cannot be placed in liquids, and should not be near heat sources. To keep the circuit dry, original accessories must be used. 1.1 When the machine needs to be moved, be sure to turn off the power and unplug the plug.
- Page 4 This machine is not intended for use by individuals with physical, sensory, or mental disabilities, or those lacking experience and knowledge (including children): unless they have received supervision or guidance from someone responsible for their safety regarding the use of the product. Children should be supervised to ensure that they do not play with machines.
- Page 5 The machine adopts an independent dual system mode, and each extraction system is equipped with a separate water system. The other system operates simultaneously without interference with each other. The Medan can be paired with various coffee capsules, such as Prodisc NC, FAP, POD, and other capsules, achieving a pairwise presentation.
- Page 6 3 Basic Introduction External part name: Part Name Part Name Drip tray Left panel Drip tray Right panel Used capsule box Power cord Coffee nozzle Grid Front panel Waste water box Front cover Steam rod silicone Sliding cover Steam rod Up cover Steam head Watertank cover...
- Page 7 4 Installation 4.1 Installation precautions: This machine should be kept out of reach of children. Please confirm that the power supply voltage is 230V and equipped with a grounding device. If the power cord is damaged, it cannot be used and should be kept away from heat sources and flammable materials.
- Page 8 5 Usage Check whether the water accumulation box group is installed in place before use Check if the water tank installed in place Check if the sliding cover close...
- Page 9 6 Function Introduction 6.1 Basic Introduction Status display area Button Name Button icon Button function Power button The function is to switch between standby mode and preheating mode; When the machine is in standby mode, touch the power button to immedi- ately enter the preheating state;...
- Page 10 Short button of system 2 The function is to display the preheating status; After preheating, press the function button; And the combination buttons in engineering mode. Long button of system 2 After preheating, press the function button; And the combination buttons in engineering mode.
- Page 11 Engineering settings The dual system can be set in the state of waiting for preheating or completing preheating. Cannot set other functions when setting the current function 6.2.1 Temperature function Close the dual system sliding cover and long press the big and small cup keys System 1 System 2 Downshift...
- Page 12 6.2.3 Volume Setting Operating mode System 1 System 2 Steam Hot water Short cup Long cup Short cup Long cup Long press Long press Long press Long press Long press Long press and hold and hold and hold and hold and hold and hold the the button...
- Page 13 Clear Cleaning Count System 1 System 2 Open the sliding cover+button Open the sliding cover+button 2+button 3 4+button 6.2.4 Forced cleaning Double system sliding cover closed+button 1 +button 7 to start During forced cleaning, maintain the boiler temperature at 45°C. If the boiler temperature is high, it will naturally cool during the descaling cycle without waiting for it to cool down.
- Page 14 Operation Display Description Button 2 Open L0001/L0000 Buzzer open/off Close Button 3 L0010 off Drip tray - off Button 4 Open L0101/L0100 Off Liquid level sensor open/off Button 5 Open L1001/L1000 Off Cleaning function open/off Button 6 Open Button 7 Close 6.2.5 Standby time setting...
- Page 15 6.2.6 Restore Factory Settings button 1 +button 6 +button 7 The machine directly enters restart.All settings have been restored to the factory default state, including large/small cup flow rate, temperature, boiler temperature range, standby time, and soaking time. 6.2.7 Special instructions Machine counting method: A coffee brewing time greater than 5 seconds is considered an effective extraction, and the sliding cover is opened once, so that both the total count...
- Page 16 7 Cleaning and maintenance Water tank cleaning: After removing it, rinse it with clean water. If it is not clean, wipe it with a clean cotton cloth, and then rinse it again with water Clean the water accumulation box: After removing it, rinse it with clean water. If it is not clean, wipe it with a clean cotton cloth, and then rinse it again with water.
