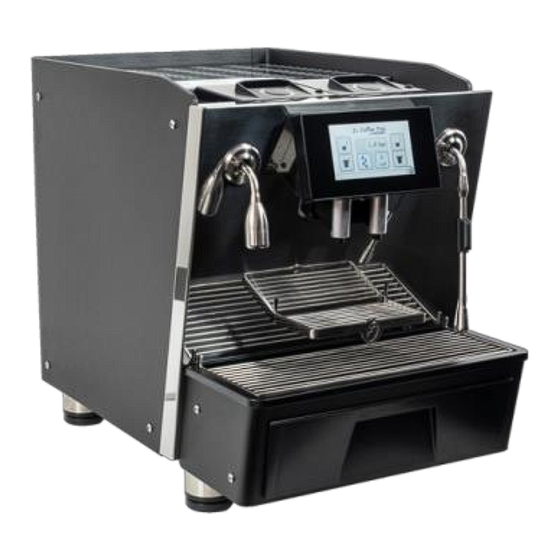

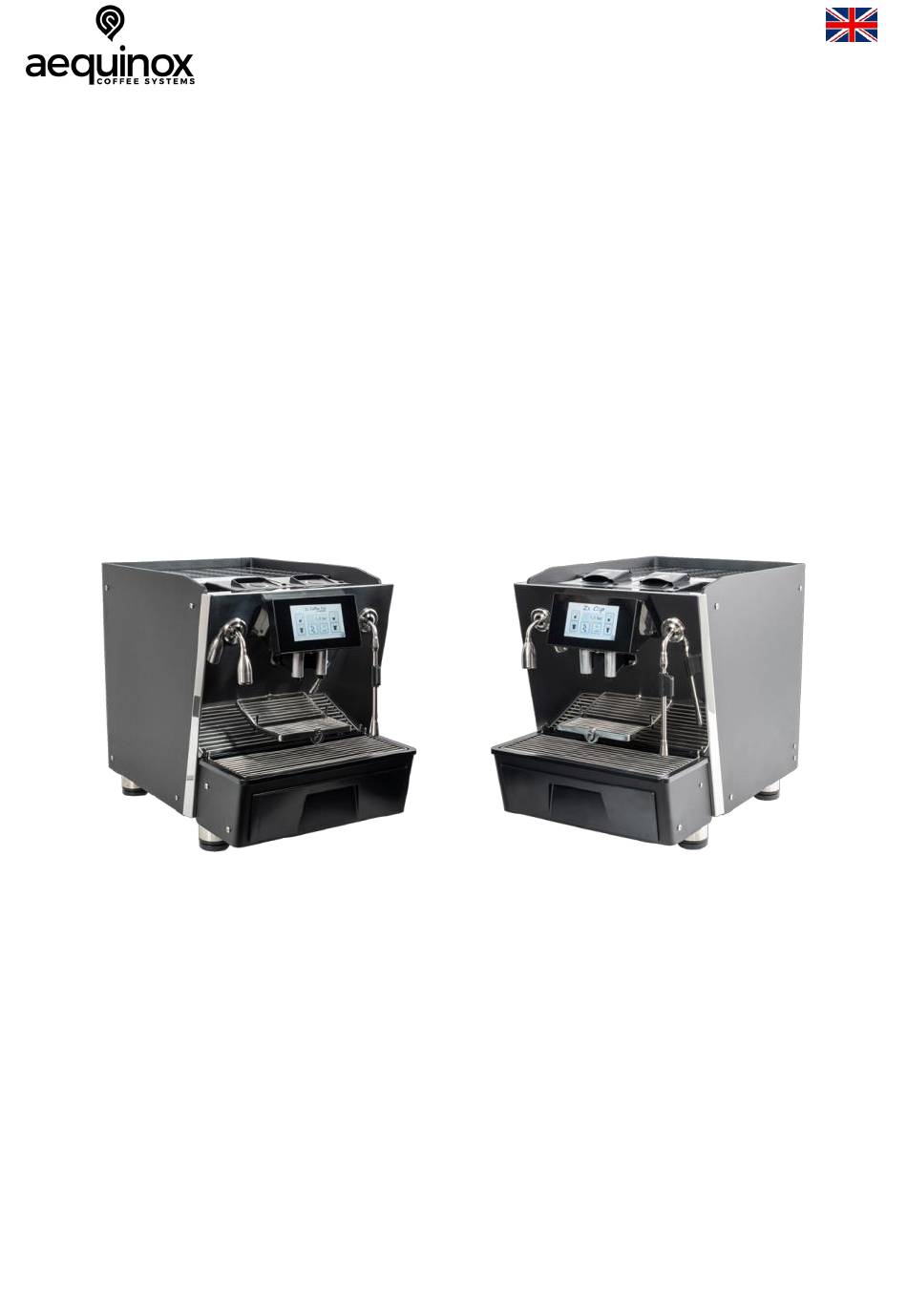

- Page 1 USER MANUAL Firenze Pro M0107WS Pro Original instructions Version May 2021 (Courtesy translation. If for any reason an interpretation is needed, reference must be made to the French text only)
-
Page 2: Table Of Contents
Table of contents INFORMATION AND SAFETY .............................. 3 Safety instructions ................................3 Technical characteristics ............................... 6 Symbols of standards ................................8 Overview of external components (Z2) ..........................9 Troubleshooting .................................. 12 Hygiene ....................................12 Packaging, storage, transport ............................13 Environmental protection ..............................13 UNPACKING AND COMMISSIONING .......................... -
Page 3: I- Information And Safety
Respect the use described in the user manual. Read the user manual before putting the device into service The Firenze Pro coffee machines as well as the peripherals described in this documentation are intended for making coffee and producing hot water. The manufacture of coffees requires the exclusive use of Nespresso Professional Disc. - Page 4 received instructions regarding the use of the device. device and that they understand the risks involved. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved Children should not play with the device.
- Page 5 To avoid hazardous damage, never place the unit on or near hot surfaces such as radiators, stoves, ovens, gas burners, open fires, or similar sources of heat. Always place on a flat, stable and regular surface. The surface must be resistant to heat and fluids such as: water, coffee, descaling products etc.
-
Page 6: B) Technical Characteristics
Technical characteristics Firenze Pro Trade name : M0107WS Pro Model : Rated voltage : 220 V- 240 V ~50Hz Maximum rated power electronically regulated: 1900 W/ 2300 W Protection fuse : T16AL-250V Minimum water supply pressure : 0.1MPa (1 bar) Maximum water supply pressure : 0.2MPa (2 bars) - Page 7 Filling pump pressure (bar): 7 bars Max adjustable pressure: 1.5 bars Safety valve: 3 bars Resettable safety thermostat (2 Poles) Electrical connection Connection to a fixed socket with a protected installation of 16 A minimum Wire section of 2.5mm² minimum. Information plate : Type : ZM0107WS Type : ZM0107WS...
-
Page 8: C) Symbols Of Standards
Indicates that the product was put in service after the 13 August, 2005 RoHS marking : Indicates that the product complies with the RoHS Directive 2002/95/EC. Identifies the device manufacturer. Firenze Pro Identifies the device’s business name. Identifies the device’s business name. M0107WS Pro Identifies the type of the device. -
Page 9: D) Overview Of External Components (Z2)
d) Overview of external components (M0107WS Pro) FIG.1 A- INTRODUCTION COVER CAPSULE VERSION (M0107WS Pro) (enslaved) B- INTRODUCTION COVER POD VERSION (M0107WS Pro) (enslaved) C- CUP WARMER D- HOT WATER OUTLET E- STEAM OUTLET F- TRAY GRID G- DRIP TRAY H- USED PODS/CAPS TANK I- RAISE J- TFT SCR EEN... - Page 10 FIG.2 M- HOOD SECURITY COVER CAPSULE VERSION (ensolved) N- HOOD SECURITY SCREW O- WASTEWATER DISCHARGE Ø16mm P-WATER SUPPLY G3/4 Q-USB PLUG R-SECTOR SWITCH 2P / 20A S- POWER CORD 3x2.5mm² Lg : 1.5m FIG.3...
- Page 11 FIG.4 T- WATER TANK COVER U – WATER TANK: 5 LITERS...
-
Page 12: E) Troubleshooting
e) Troubleshooting The devices and components described in the troubleshooting manual are based on the latest exploitable technology and guarantee the expected degree of security, to a reasonable extent, under all the circumstances studied. However, troubleshooting must be carried out by a person authorized to do it. It is the responsibility of the company or its representatives to provide appropriate user training courses. -
Page 13: G) Packaging, Storage, Transport
g) Packaging, storage, transport Poor packaging, storage and transport conditions can damage the products. Damage is the responsibility of the person who caused it. Observe the following points: - Given the weight of the material (34 kg), handle the cardboard with a handling device - Respect the regulations relating to packaging, storage and transport. -
Page 14: Ii- Unpacking And Commissioning
UNPACKING AND COMMISSIONING a) Unpacking - Pace the box as indicated by the arrows. - Cut the straps and open the carton upwards. - Given the weight of the machine (34 Kg), in order to avoid any injury, it is recommended to handle it with two people. -
Page 15: Iii- Operating Modes
III- OPERATING MODES a) General functions SETTINGS: - Water supply (network or water tank) optional - coffee volumes - coffee temperatures 1.2 bar - pre-infusion - hot water volume - steam duration - boiler pressure - auto standby - languages - descaling / cleaning / rinsing - credits... -
Page 16: B) Cleaning Mode
b) Cleaning mode 1- Setting the "cleaning" mode Access the “rinsing and cleaning” menu of level 2 and configure the cleaning. (See HMI detail in appendix) 2- Procedure Enter setting mode (level 1) and start cleaning for each group. a) Brewing unit for ESE Pod or similar - Insert a tablet of detergent into the appropriate Silicone pod holder for cleaning tablet - Insert the Silicone pod holder into the ESE pod brewing unit introduction cover Silicone pod... -
Page 17: C) Descaling Mode
c) Descaling mode Descaling should be done regularly so as not to deteriorate the taste of the coffee, maintain hygiene and prolong the life of the machine. This operation must be carried out exclusively in the after-sales service workshop by qualified personnel, following the procedure recommended by the manufacturer. -
Page 18: Conformities
CONFORMITIES LOW VOLTAGE o Directive 2014/35 / EU IEC 60335-2-15: 2012, AMD1: 2016 (IEC60335-1: 2010, AMD1: 2013, AMD2: 2016) EN 60335-2-15: 2016 (EN 60335-1: 2012) ELECTROMAGNETIC COMPATIBILITY o EMC Directive 2014/30/EU EN 61000-6-3: 2007 / AMD1: 2011 FprEN 61000-6-1: 2016 EN 55014-1: 2006 / AMD1: 2009 / AMD2: 2011 EN 55014-2: 2015 MADE IN FRANCE...
