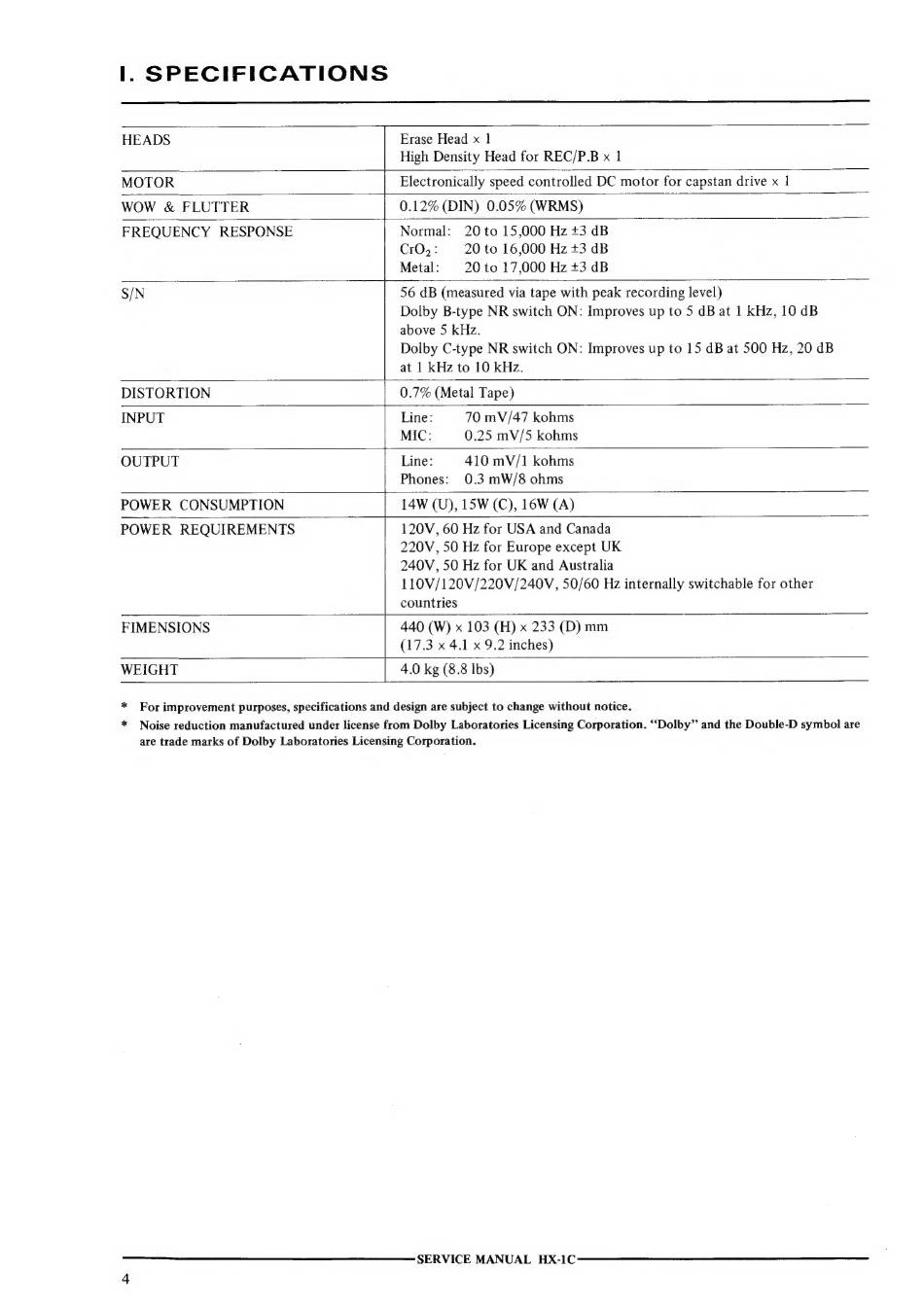

I. SPECIFICATIONS
HEADS Erase Head x 1
High Density Head for REC/P.B x 1
MOTOR Electronically speed controlled DC motor for capstan drive x 1
WOW & FLUTTER 0.12% (DIN) 0.05% (WRMS)
FREQUENCY RESPONSE Normal: 20 to 15,000 Hz +3 dB
CrO,: 20 to 16,000 Hz +3 dB
Metal: 20 to 17,000 Hz +3 dB
S/N 56 dB (measured via tape with peak recording level)
Dolby B-type NR switch ON: Improves up to 5 dB at 1 kHz, 10 dB
above 5 kHz.
Dolby C-type NR switch ON: Improves up to 15 dB at 500 Hz, 20 dB
at 1 kHz to 10 kHz.
DISTORTION 0.7% (Metal Tape)
INPUT Line: 70 mV/47 kohms
MIC: 0.25 mV/5 kohms
OUTPUT Line: 410 mV/1 kohms
Phones: 0.3 mW/8 ohms
POWER CONSUMPTION 14W (U), 15W (C), 16W (A)
POWER REQUIREMENTS 120V, 60 Hz for USA and Canada
220V, 50 Hz for Europe except UK
240V, 50 Hz for UK and Australia
110V/120V/220V/240V, 50/60 Hz internally switchable for other
countries
FIMENSIONS 440 (W) x 103 (H) x 233 (D) mm
(17.3 x 4.1 x 9.2 inches)
WEIGHT 4.0 kg (8.8 ibs)
* For improvement purposes, specifications and design are subject to change without notice.
* Noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the Double-D symbol are
are trade marks of Dolby Laboratories Licensing Corporation.
