This tubular latch set is designed to be mounted in doors 1 inch to 1-3/8 inches thick.
1).
Cut out the template below.
2).
Fold and tape on door at desired height.
3).
Mark and drill as shown on template. Note that the 3/4" hole is a tight fit into wood, so a 25/32"
clearance hole should be drilled for harder materials.
4).
Insert tubular body into door edge. Note position of stem hole. (See exploded view).
5).
Align and mount escutcheon plates.
6).
Insert handle and stem. Screw on knob and fasten set screw.
7).
Mount strike on door frame.
3/05
0567INS1
Center
Cat. No. 0567DP0CHR Tubular Latch Set
Cat. No. 0567000CHR Tubular Latch Set
MOUNTING INSTRUCTIONS

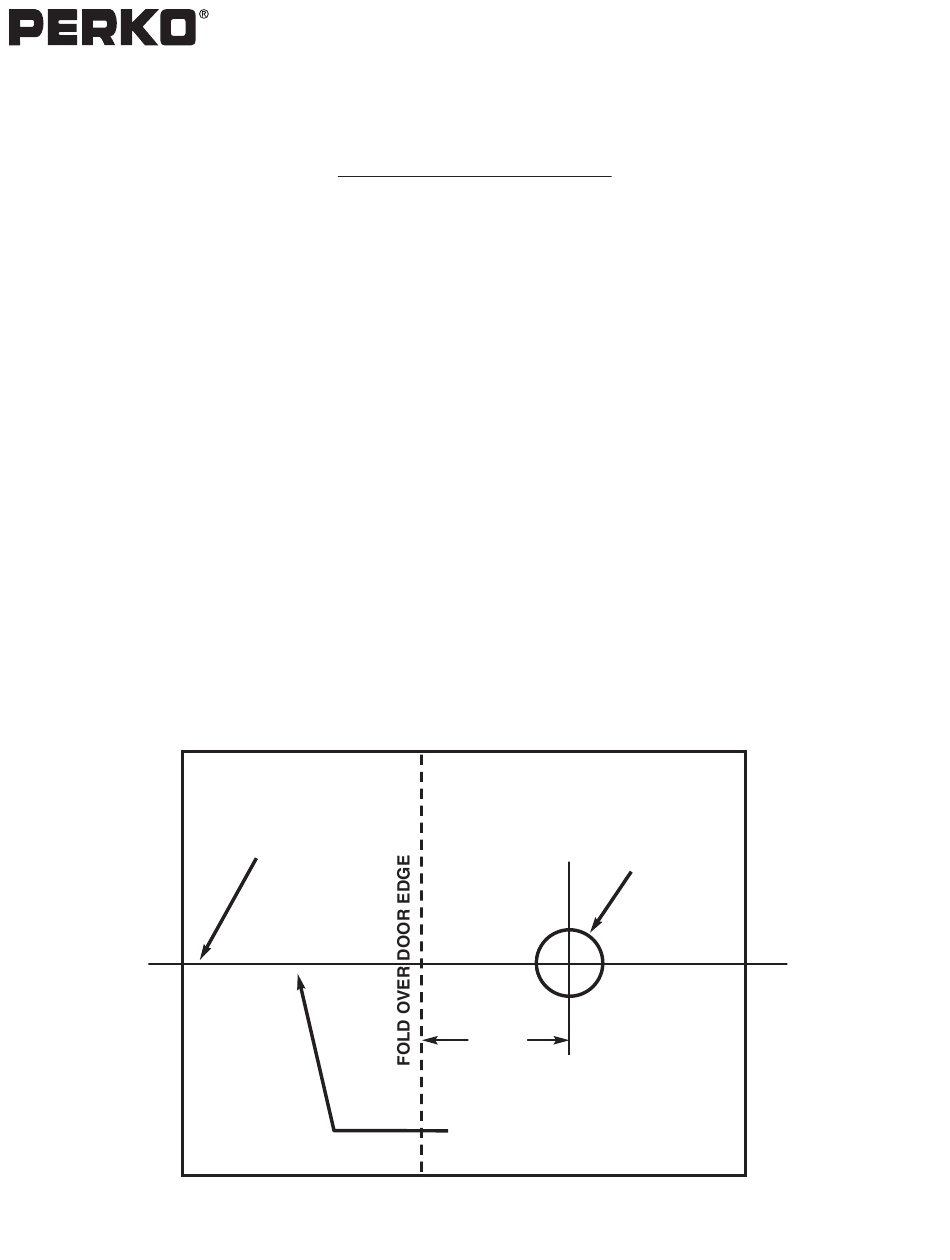

MOUNTING TEMPLATE
Line
(SEE OVER)
Cat. No. 0567DP0CHR
Cat. No. 0567000CHR
Drill 9/16" Hole
1-3/16"
DRILL 3/4"HOLE CENTERED
ON EDGE OF DOOR ALONG
LINE OF TEMPLATE*
*See Note in instruction #3.
PERKO, INC.
16490 N.W. 13th Avenue
Miami, FL 33169-5707
Advertisement
Related Manuals for Perko 0567DP0CHR
Summary of Contents for Perko 0567DP0CHR
- Page 1 Cat. No. 0567DP0CHR Tubular Latch Set Cat. No. 0567000CHR Tubular Latch Set MOUNTING INSTRUCTIONS This tubular latch set is designed to be mounted in doors 1 inch to 1-3/8 inches thick. Cut out the template below. Fold and tape on door at desired height.
- Page 2 EXPLODED VIEW CAT. NO. 0567DP0CHR & CAT. NO. 0567000CHR REPLACEMENT PARTS ITEM CATALOG NUMBER COMPLETE LATCH SET 0567000CHR KNOB “L” HANDLE AND SHAFT ASSY 0962000CHR ESCUTHCHEON PLATE WITH SLIDE 056700088A LOCK FOR “L” HANDLE SIDE ESCUTHCHEON PLATE FOR KNOB SIDE...
