Perko 1031 1 Series Mounting Instructions

These locks or latches are designed to be mounted through doors from 1/8 inch to 3/4 inch thick. The cam bars are
adjustable to a maximum of 3 inches from the mounting surface.

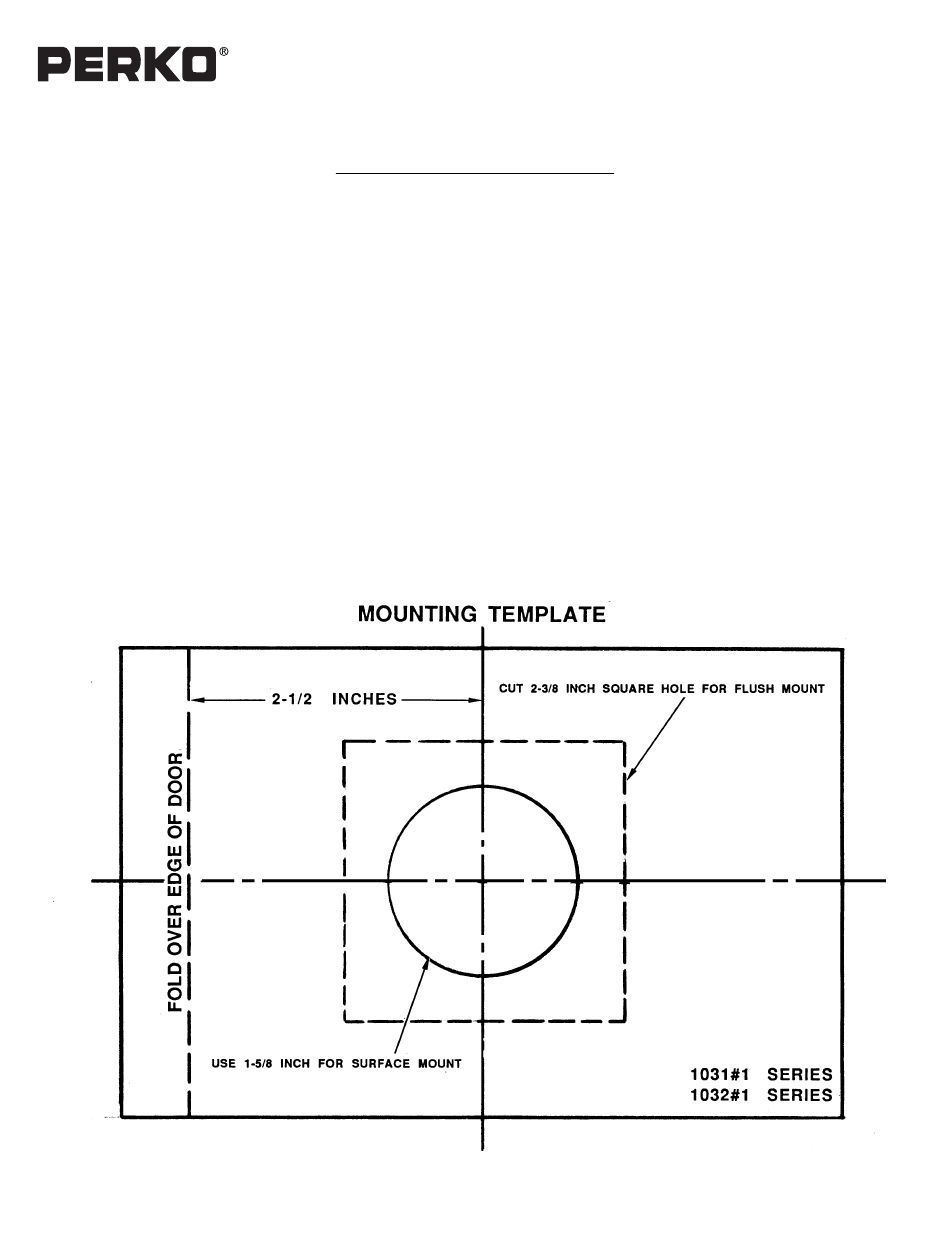

1 ). Cut out template below. Fold on dotted line. Place on door at desired height with folded tab overlapping edge.
2). Mark center of hole for drilling.
3). For surface mounting, drill 1-5/8 inch hole through door. For flush mounting, cut 2-3/8 inch square hole through
door.
4). Note orientation and positioning of spacer (see diagram on back), depending on whether to be surface or flush
mount.
5). Insert lock or latch through hole in door with spacer (and optional weatherproof cover) and attach back-up nut.
6). Re-assemble cam bar with proper adjustment. Tighten set screw and locking nut with lock washer.
Note: For continued ease of operation, periodically apply a lock cylinder lubricant.
1/05
1031INS1
Cat. No. 1031#1 Series Lock With Flush Cam Bar.
Cat. No. 1032#1 Series Latch With Flush Cam Bar.
Cat. No. 1089#3 Series Optional Weatherproof Cover - See Back
MOUNTING INSTRUCTIONS
(See Over)
