This mortise lock set is designed to be mounted on doors 1 inch to 1-3/8 inches thick. Beveled bolt is reversible.
1).

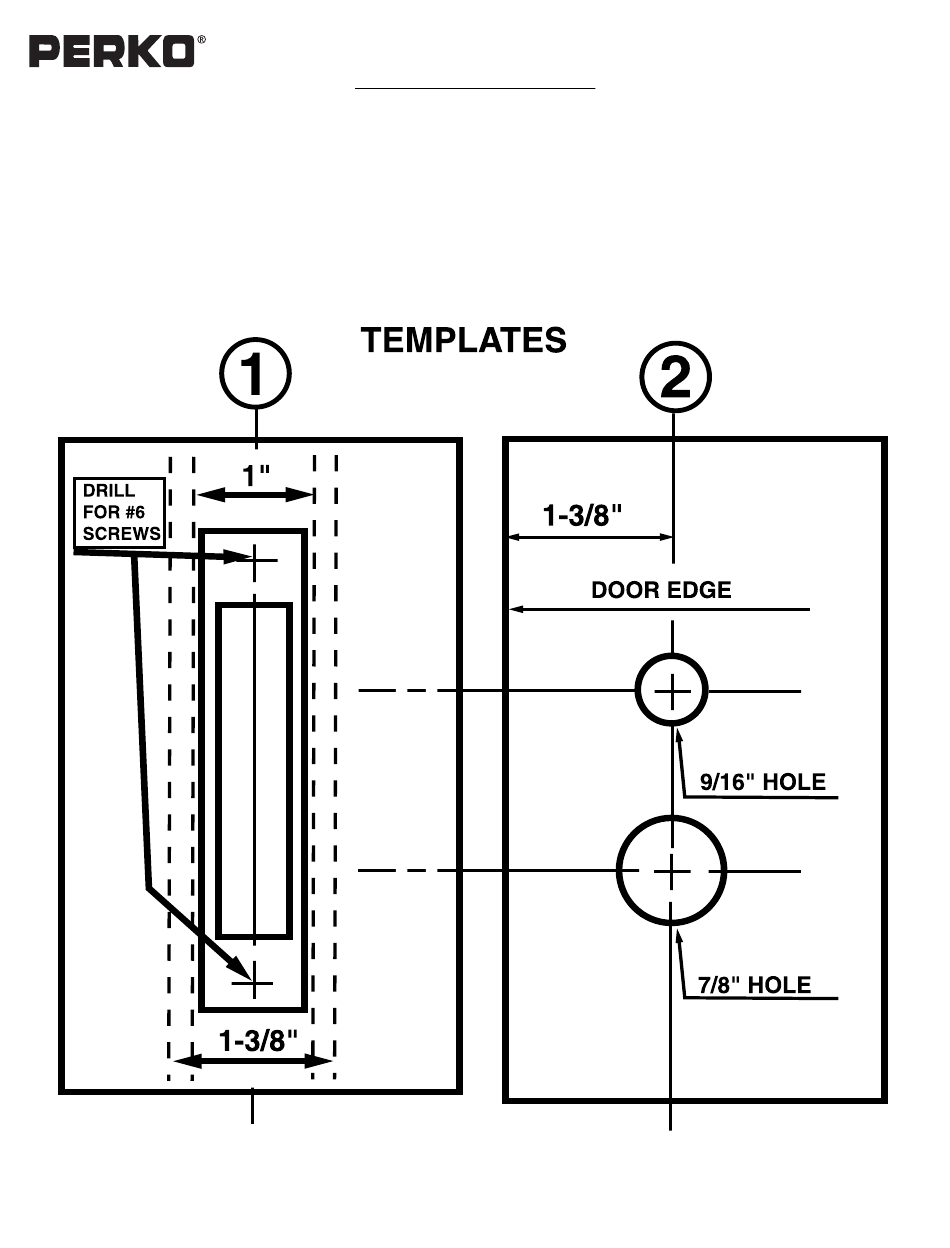

Cut out templates below.
2).
Tape template 1 on edge of door at desired height. Fold over edge.
3).
Tape template 2 on side of door. Line up center lines. Mark cut-outs for mortised lock, faceplate and holes.
4).
Cut out door and drill holes as indicated.
5).
Insert lock and fasten.
6).
Fasten escutcheons as shown. Insert lever handle with stem. Screw knob on stem and tighten set screw.
7).
Mount strike on door frame.
NOTE: FOR CONTINUED EASE OF OPERATION, PERIODICALLY APPLY A LOCK CYLINDER LUBRICANT
maatvoering van de inbouw is 70 mm x 50.8 mm
3/04
0927INS1
Cat. No. 0927000CHR Mortise Lock Set
MOUNTING INSTRUCTIONS
25.4 mm
34.9 mm
35 mm
(SEE OVER)
14.3 mm
22.2 mm
PERKO, Inc.
16490 N.W. 13th Avenue
Miami, FL 33169-5707
www.perko.com
Advertisement
Related Manuals for Perko 0927000CHR
Summary of Contents for Perko 0927000CHR
- Page 1 Cat. No. 0927000CHR Mortise Lock Set MOUNTING INSTRUCTIONS This mortise lock set is designed to be mounted on doors 1 inch to 1-3/8 inches thick. Beveled bolt is reversible. Cut out templates below. Tape template 1 on edge of door at desired height. Fold over edge.
- Page 2 EXPLODED VIEW CAT. NO. 0927000CHR LOCKSET Item Catalog Number Complete Lock Set 0927000CHR Knob, “L” Handle And Shaft Assy 0962000CHR Escutcheon Plate ALL MOUNTING SCREWS for “L” Handle Side 092700088A ARE #6 SIZE Escutcheon Plate For Knob Side with Keyset...
