- Page 1 Chassis Models 115 VOLT CCV15 230 VOLT CCV18, CCV24 THE EXPERTS IN ROOM AIR CONDITIONING 93011012_01...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS ............ 1 What’s in the Box ..........................4 ..........................Introduction Operating Instructions ..........................6 Setup & Installation ..........................Other Features ..........................Maintenance ..........................Trouble shooting .......................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before installing and using your air conditioner, please read this owner’s manual carefully. Store this manual in a safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to all safety messages outlined in this owner’s manual. - Page 4 Introduction to Refrigerants R32 The refrigerants used for air conditioners are environmentally friendly hydrocarbons R32. This kind of erant is combustible and odorless. Moreover, it can burn and explode under certain condition. However, there will be no risk of burning and explosion if you comply with the following table to install your air conditioner in a room with an appropriate area and use it correctly.
- Page 5 Installation Safety Principles 1. Site Safety Open Flames Prohibited Ventilation Necessary 2. Operation Safety Open Flames Prohibited Must wear protective clothing and Mind Static Electricity Don`t use mobile phone anti-static gloves 3. Installation Safety • Refrigerant Leak Detector The left picture is the schematic diagram •...
-
Page 6: What's In The Box
What’s in the Box Open the carton and remove the below parts. APPEARANCE PART NAME QUANTITY Window Air Conditioner Remote Control Long Foam Seal (Non-Adhesive) Long Foam Seal (Adhesive) ¾” Screw Remote Control Battery Security Bracket ½” Screw Panel Seal (Adhesive) ⁵⁄16”... -
Page 7: Introduction

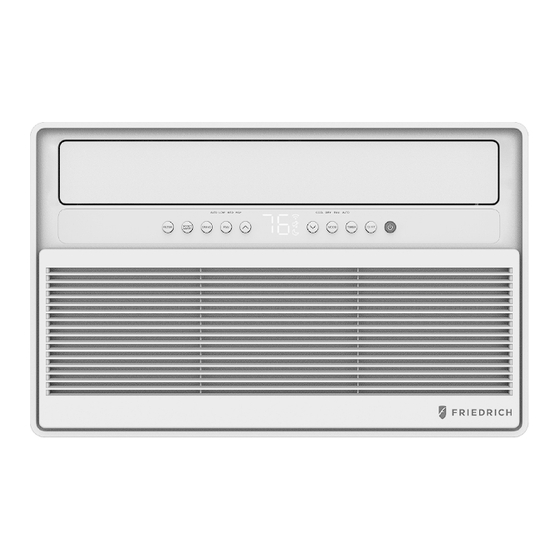

Introduction For remote control model Front Panel Air Louver Grid Guard Vane Display Board Air Filter Telescopic Curtain Assy Control Panel Attention 1) The outlooking and some function of remote control may vary according to the model. 2) The shape and position of buttons and indicators may vary according to the model, but their function is the same. -
Page 8: Operating Instructions
Operating Instructions For remote control model You can easily operate this air conditioner by press relevant button on the control panel as well as the remote controller. Clean the dust filter. Turn on/off the MONEY SAVER mode, under Cool/Dry mode Select to adjust the airflow direction by swinging the louver vertically. -
Page 10: Setup & Installation
Setup & Installation Window Requirements 1. This air conditioner is designed to be installed in a standard single-hung or double-hungwindow with a window width between 29.5” and 41” (750mm - 1040mm). 2. The lower sash (the lower part of the window that moves up and down) must allow for 14.5”of vertical clearance when open. - Page 11 Prepare Air Conditioner for Installation WARNING 3.Remove front panel and cabinet screws Excessive Weight Hazard Use two or more people to move and installair conditioner. Failure to do so can result in back or other injury. 1.Unpack the Air Conditioner Remove the four screws.
- Page 12 Step 3: Applying the Adhesive Foam Seal Measure the length of the upper window frame, trim the adhesive foam seal to the appropriate length, and apply as shown below. Adhesive Foam Seal Step 4: Placing Inside an Open Window Using team lift, carefully lift the air conditioner and place in the windowsill. Next, close the window, making sure the air conditioner is centered and the bottom rail is flush against the windowsill.
- Page 13 Step 6: Securing the Side Panels Pull the side panels inwards to align with the brackets, then secure onto the sides by snapping the jutting points onto the locking pins. The side panels should be locked by ¹⁄4” Long Hex-head Screw Step 7: Sealing Any Gaps with Modeling Clay (Plasticene) Fill the crevices between the side brackets and panels with the included plasticene.
- Page 14 Step 8: Securing the Screw into the Top Rail Secure the ¹⁄2" Screw into the top rail of the air conditioner to the window frame. Step 9: Installing the Security Bracket (Recommended) For security purposes, it is recommended to attach the security bracket to the top of the window using two ¹⁄2"...
- Page 15 Step 10: Filling the Gap Between Sashes Applying the Panel Seals Trim the non-adhesive foam seal to the appropriate length and insert between the window sashes. CAUTION: When open the window, besure that the fixed screws are avaliable from the curtain to the window frame.
- Page 16 Installing the Chassis into the Cabinet 1. Team lift (two people) the air conditioner chassis and carefully slide it into the cabinet. Let the front of the air conditioner hang out approximately 6". 2. CAUTION: DO NOT PUSH ON THE CONTROLS OR FINNED COILS. 3.
- Page 17 ASSEMBLY & INSTALLATION-THRU-THE-WALL (CONT.) 5.Remove faceplate screws 1.Unpack the Air Conditioner Remove the two faceplate screws. 6.Remove case screws 2.Remove parts Remove Left Telescopic Curtain Support Assy. Remove 2 screws fixed on left and right sides Remove Right Telescopic Curtain Support Assy. of case and chassis 7.Remove chassis 3.Remove Hinge...
- Page 18 ASSEMBLY & INSTALLATION-THRU-THE-WALL (CONT.) Prepare the Wall NOTE: If wall thickness is 8-1/2" or more, add aluminum flashing over the bottom of the 1. Prepare the wall in frame construction frame opening to assure water is unable to (including brickand stucco veneer). enter the area between the inner and outer wall.
- Page 19 ASSEMBLY & INSTALLATION-THRU-THE-WALL (CONT.) Refer to the SUPPORT BRACKET OPTIONAL: Caulking and installation of the ASSEMBLY in the WINDOW MOUNTING trim on the interior wall may be done ifdesired. section to assemble the support brackets. Caulk the openings around the top and sides A wooden strip nailed to the outside wall of the cabinet and all sides of the wood sleeve should be used in conjunction with the...
-
Page 20: Other Features
Other Features Filter Reminder When the running time reaches 500 hours, the filter reminder will light up to indicate the filter needs to be cleaned. Press and hold the Filter button for 5 seconds to reset the filter reminder. Please see the maintenance section of this manual for filter cleaning instructions. Display Auto Off •... -
Page 21: Maintenance
Maintenance Care and Cleaning Clean your air conditioner occasionally to keep it looking new. Before cleaning, be sure to unplug the unit from any and all power sources to prevent electric shock or fire hazards. Air Filter The air filter should be checked at least once every month to see if it needs cleaning. Never use hot water over 104°F (40°C) to clean the air filter. -
Page 22: Trouble Shooting
Trouble shooting PROBLEM POSSIBLE CAUSES SOLUTIONS Make sure the air conditioner plug The air conditioner is unplugged is pushed completely into the outlet. Check the house fuse/circuit breaker The fuse is blown/circuit breaker is box and replace the fuse or reset the tripped breaker. - Page 23 Ice blocks the air flow and stops the The air conditioner Switch to high fan speed and set the air conditioner from cooling the is freezing up thermostat to a higher temperature. room The batteries are inserted Check the position of the batteries. The remote control incorrectly is not working...
