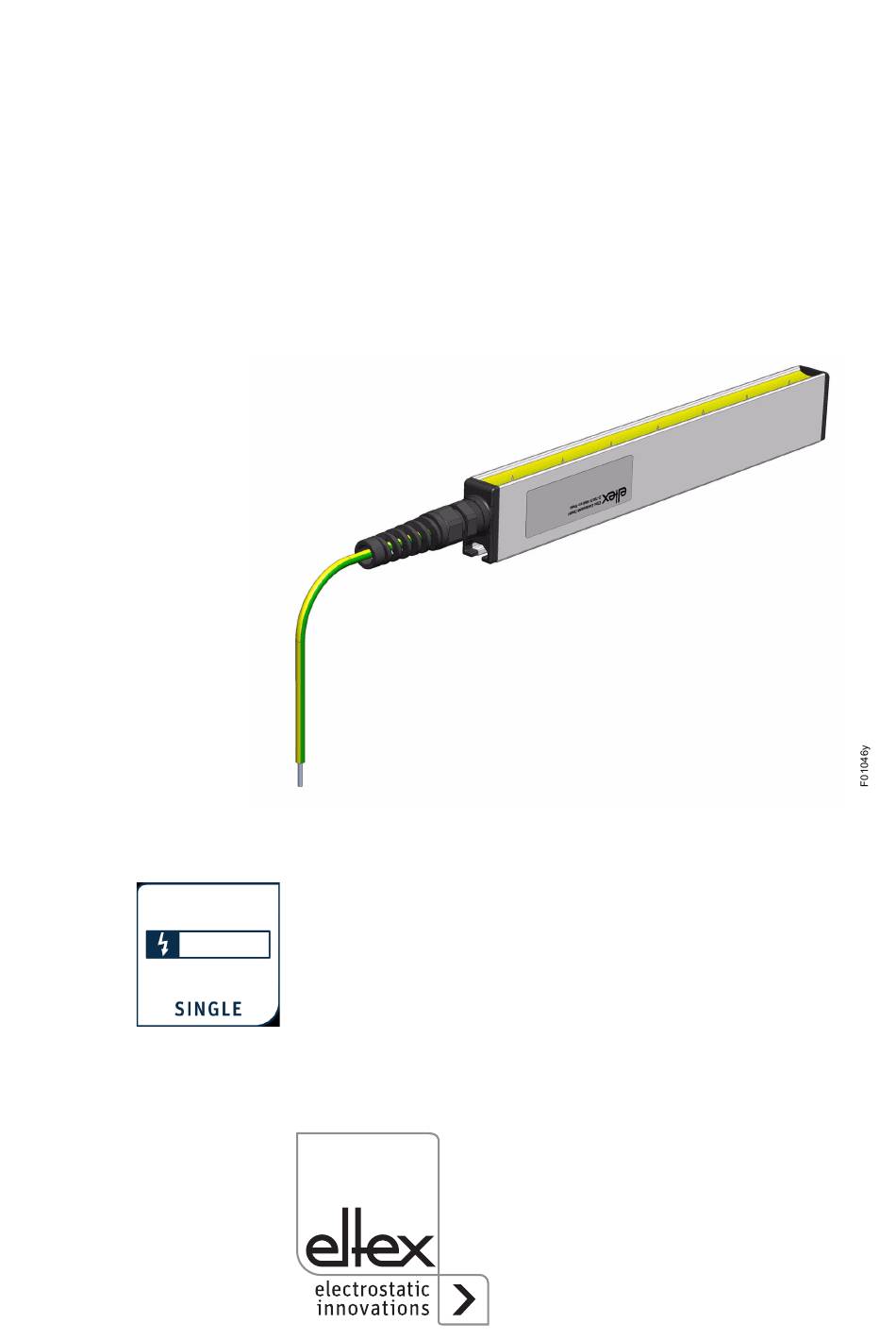

- Page 1 Operating Instructions passivBAR Series RG52 Passive Discharge Bar BA-en-2081-2402...
- Page 2 BA-en-2081-2402_RG52...
-
Page 3: Table Of Contents
List of contents Outline of appliance ........6 Safety . - Page 4 BA-en-2081-2402_RG52...
- Page 5 Dear customer, The discharge bar passiveBAR of the RG52 series are designed to pas- sively discharge static disruptions during production. They are suitable for eliminating charges at moving surfaces, especially metal foils or compo- site materials coated with conductive materials, for which the use of active discharging systems is prohibited.
-
Page 6: Outline Of Appliance
1. Outline of appliance Fig. 1: Overview of the RG52 discharge bar 1 Bar profile 2 Resistively isolated grounding tips 3 Ground cable 4 Bend-resistand screw connection 5 Assembly groove at the rear BA-en-2081-2402_RG52... -
Page 7: Safety
Modifications or changes made to the devices are not permitted. Use only original Eltex spare parts and equipment. 2.2 Identification of risks and hazards Possible risks and hazards resulting from the use of the units are referred... -
Page 8: Work And Operational Safety
2.3 Work and operational safety Warning! Carefully observe the following notes and the complete chapter 2 "Safety”, page • Before carrying out any work involving the bars, the machine which has the units fitted must not be in operation (see chapter 4 "Maintenance”, page chapter 5 "Troubleshooting”, page... -
Page 9: Contact Protection
2.4 Contact protection The site of installation and/or use of the units is outside the control of Eltex, contact protection against inadvertent contact of the bars by personnel as specified by the employer’s liability insurance association may have to be provided (e.g. -
Page 10: Installation And Assembly
3.1 Assembling the discharge bar Attach the Series RG52 discharge bars to the machine wall, using flame- retardant GRP assembly material. For easier installation we recommend using the assembly material offered by Eltex. Fig. 2 shows the installation principle. Fig. 2:... - Page 11 Plastic holders below 1 meter total length: 3 per bar below 2 meters total length: 5 per bar below 3 meters total length: 7 per bar below 4 meters total length: 9 per bar below 5 meters total length: 11 per bar below 6 meters total length: 13 per bar Fig.
-
Page 12: Locating The Discharge Bar
Warning ! For safety in operation, please note the following: • The bar must be mounted such that mechanical damage to the bar tips is ruled out. • When routing the cable, select the attachment points such that mechanical damage to the cable (e.g. chafing against rotating machine parts) is ruled out. -
Page 13: Maintenance
4. Maintenance Warning! Electric shock hazard! • The machine which has the barss fitted must not be in operation. • The bars passively absorb energy from the moving substrate web. The ground connection cable must be grounded. If the cable is not groun- ded / mounted, the charge applies with full power at the free end. -
Page 14: Troubleshooting
5. Troubleshooting Warning! Electric shock hazard! • The machine which has the bars fitted must not be in operation. • The bars passively absorb energy from the moving substrate web. The ground connection cable must be grounded. If the cable is not groun- ded / mounted, the charge applies with full power at the free end. -
Page 15: Technical Specifications
6. Technical specifications Discharge bar RG52 Bar element glass-fibre-reinforced plastic GRP Encapsulation material polyurethane, UL-94 V-0 Emission tips stainless steel Installation material plastic sliding nuts Operating ambient temperature 0...+80 °C (+32...+176° F) Ambient humidity max. 70 % RH, non-dewing Dimensions profile: 16 x 32 mm, max. -
Page 16: Dimensions
7. Dimensions Fig. 6: RG52 discharge bar EL = installation length AL = active length GL = total length X = view BA-en-2081-2402_RG52... -
Page 17: Spare Parts And Accessories
8. Spare parts and accessories Article Article No. Mounting material for bars: Slide nut with screws and washers 105826 Plastic countersunk screw, M5x8 101020 Plastic countersunk screw, M5x10 KSR00030 Plastic countersunk screw, M5x30 108525 Plastic cheese-head screw, M5x10 KSR00012 Plastic cheese-head screw, M5x16 KSR00013 Plastic cheese-head screw, M5x20 KSR00014... - Page 20 Eltex offices and agencies The addresses of all Eltex agencies can be found on our website at www.eltex.de Eltex-Elektrostatik-Gesellschaft mbH Blauenstraße 67-69 79576 Weil am Rhein | Germany Phone +49 (0) 7621 7905-422 eMail info@eltex.de Internet www.eltex.de...
