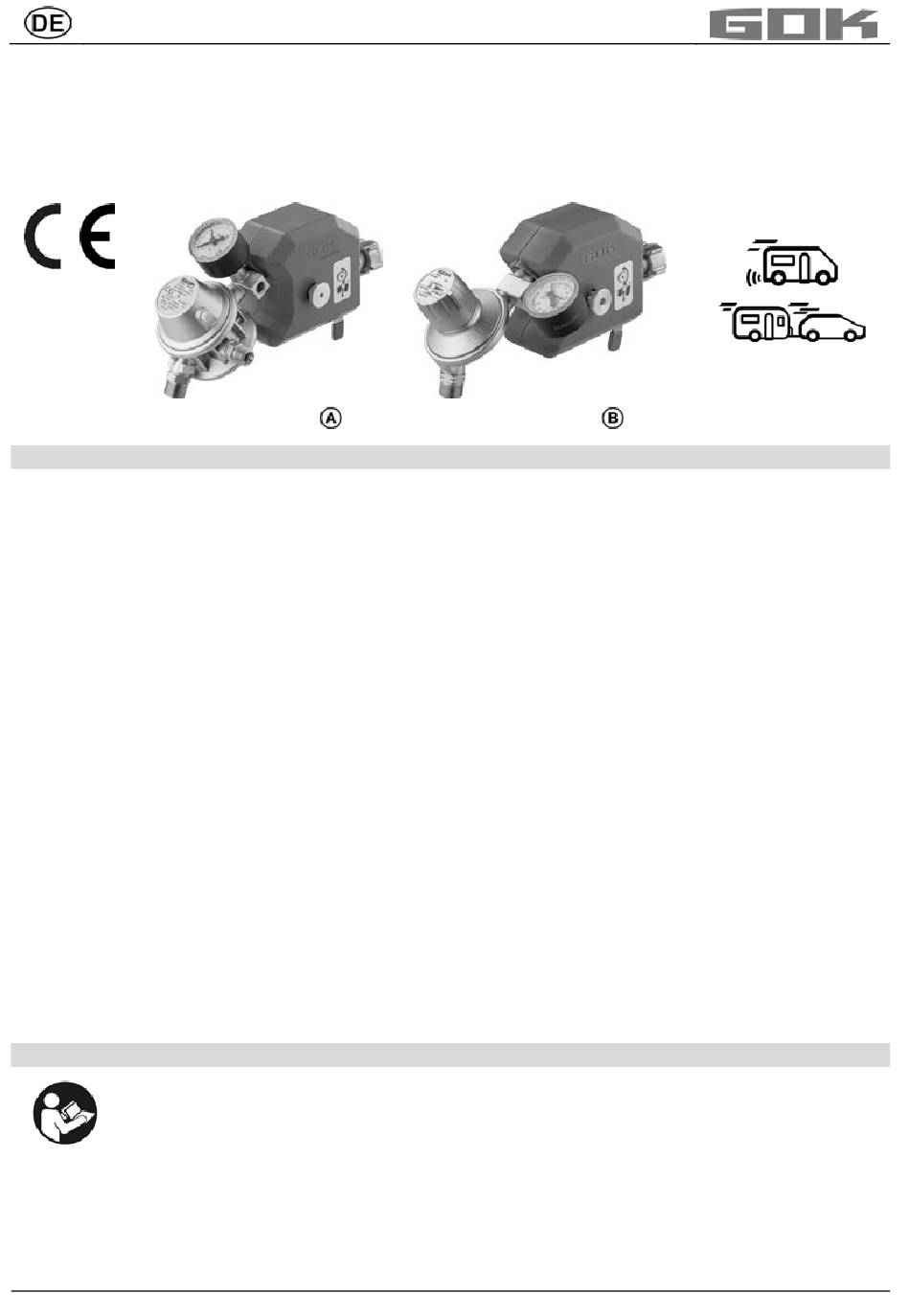

Montage- und Bedienungsanleitung
Caramatic SafeDrive PLUS
Sicherheits-Gasdruck-Umschaltautomatik zum Betrieb von Zweiflaschenanlagen in
Wohnmobilen und Wohnwagen während der Fahrt, zum Anschluss an die Gasflaschen
INHALTSVERZEICHNIS
ZU DIESER ANLEITUNG .......................................................................................................................... 1
SICHERHEITSBEZOGENE HINWEISE .................................................................................................... 2
ALLGEMEINE PRODUKTINFORMATION ................................................................................................ 2
BESTIMMUNGSGEMÄSSE VERWENDUNG ........................................................................................... 2
NICHT BESTIMMUNGSGEMÄSSE VERWENDUNG ................................................................................ 4
QUALIFIKATION DER ANWENDER ......................................................................................................... 4
AUFBAU ................................................................................................................................................... 4
ANSCHLÜSSE .......................................................................................................................................... 5
VORTEILE UND AUSSTATTUNG............................................................................................................. 6
FUNKTIONSBESCHREIBUNG ................................................................................................................. 6
MONTAGE ................................................................................................................................................ 7
DICHTHEITSKONTROLLE ....................................................................................................................... 9
INBETRIEBNAHME CRASH-SENSOR-PENDEL .................................................................................... 10
BEDIENUNG ........................................................................................................................................... 10
FEHLERBEHEBUNG .............................................................................................................................. 12
INSTANDSETZUNG ............................................................................................................................... 12
AUSSERBETRIEBNAHME ..................................................................................................................... 12
AUSTAUSCH .......................................................................................................................................... 12
WARTUNG ............................................................................................................................................. 12
ZERTIFIKATE ......................................................................................................................................... 13
TECHNISCHE DATEN ............................................................................................................................ 13
ENTSORGEN ......................................................................................................................................... 13
GEWÄHRLEISTUNG .............................................................................................................................. 13
LISTE DER ZUBEHÖRTEILE .................................................................................................................. 14
TECHNISCHE ÄNDERUNGEN ............................................................................................................... 14

ZU DIESER ANLEITUNG

• Diese Anleitung ist ein Teil des Produktes.
• Für den bestimmungsgemäßen Betrieb und zur Einhaltung der Gewährleistung
ist diese Anleitung zu beachten und dem Betreiber auszuhändigen.
• Während der gesamten Benutzung aufbewahren.
• Zusätzlich zu dieser Anleitung sind die nationalen Vorschriften, Gesetze und
Installationsrichtlinien zu beachten.
• Diese Anleitung im Fahrzeug aufbewahren!
Originalanleitung / Artikel-Nr. 71 845 50

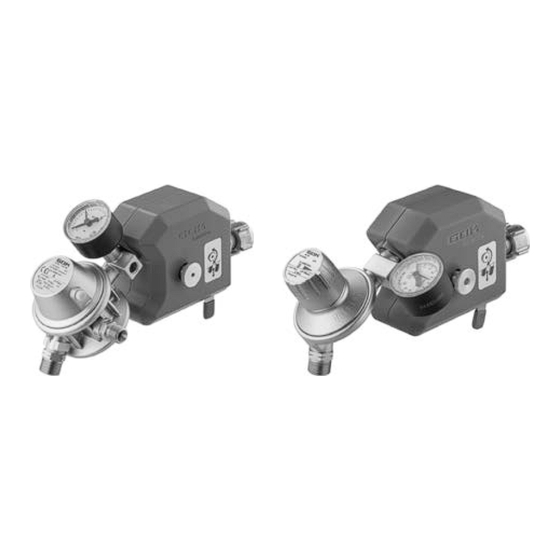

Zentralregler
Umschaltregler
Ausgabe 03.2024
