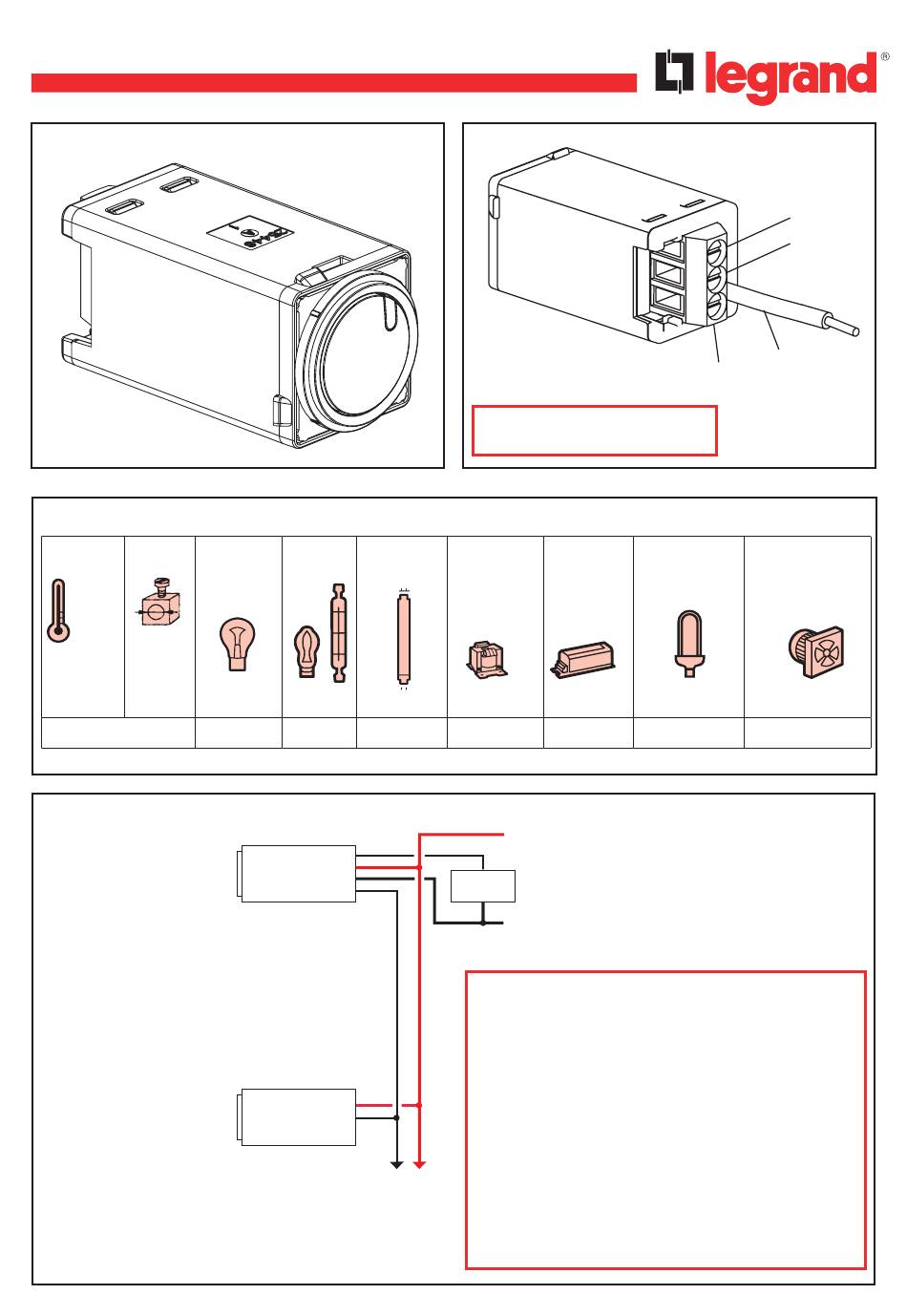

Excel Life
TM

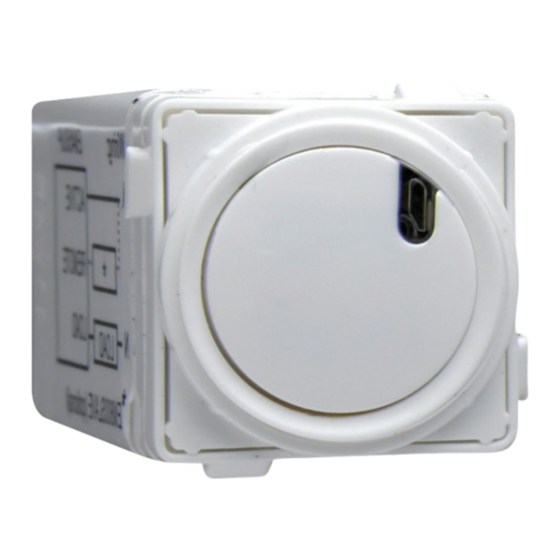

Time Delay Switch 3-Wire
EM803TD
Technical characteristics
Incandescent
+ 500 C
+ 00 C
1x2.5 mm
2
230-240V a.c.
50 Hz
2x1.5 mm
2
MAX LOAD
Wiring
• Connect optional
Secondary Control
Buttons (EM800SLAVE)
to enable switching from
multiple locations.
Halogen
Fluorescent
tube
1200W
1200W
500VA
EM803TD
LOAD
ACTIVE
NEUTRAL
REMOTE
EM800SLAVE
ACTIVE
REMOTE
LOOP
EM800SLAVE
Important:
DO NOT MEGGER THIS PRODUCT.
Wirewound
Electronic
transformer
transformer
500VA
500VA
ACTIVE
LOAD
NEUTRAL
Important:
■ Power factor correction capacitors must be either removed or
placed on the line side of the EM803TD.
■ An unlimited number of EM800SLAVE can be connected to an
EM803TD. However, the total length of the remote wire used to
interconnect all of the EM800SLAVE should not exceed 50 metres.
■ The remote wire only needs to be connected if the
multi-way switching feature is used. Remove the protective
cover from the wire, strip it to an appropriate length and
join it to mains rated building wire using a Cat 401 or other
suitable screw connector. Do not remove the protective
cover from the wire if the multi-way switching feature
will not be used.
LOAD
ACTIVE
REMOTE
NEUTRAL
(optional)
Fan Motor
Compact
Small pool pumps
Fluorescent
Water features
500VA
500VA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND Excel Life EM803TD
Summary of Contents for LEGRAND Excel Life EM803TD
- Page 1 Excel Life Time Delay Switch 3-Wire EM803TD LOAD ACTIVE REMOTE NEUTRAL (optional) Important: DO NOT MEGGER THIS PRODUCT. Technical characteristics Fan Motor Compact Incandescent Halogen Fluorescent Wirewound Electronic Small pool pumps Fluorescent tube transformer transformer Water features + 500 C + 00 C 1x2.5 mm 230-240V a.c.
- Page 2 FUNCTION • This Time-delay switch can be set in either Minute Mode or Hour Mode. • Minute Mode: 1 to 59 minute delay, in steps of 1 minute. • Hour Mode: 1 to 24 Hour delay, in steps of 1 hour The default is Minute Mode, 10 min delay To change to Hour Mode follow steps 1 &...
- Page 3 PROGRAMMING Minute mode: Press and hold the button for 20 sec. The LED will turn VIOLET then turns BLUE and then to RED. PRESS AND HOLD 2. Release the button. The switch has now entered Minute Timer Mode. Press the button between 1 and 59 times, according to the number of minutes for the desired time delay. For example: if you want a 15 minutes time delay, press the button 15 times consecutively.
- Page 4 ■ The material in this product may vary in colour from batch to batch. Colour matching from one batch to another cannot be guaranteed. ■ Legrand reserves the right to modify the specifications of this product at any time. ■ This product utilises intellectual property in the form of registered designs, trademarks, and/or patents. Such intellectual property remains the property of Legrand in all cases.
