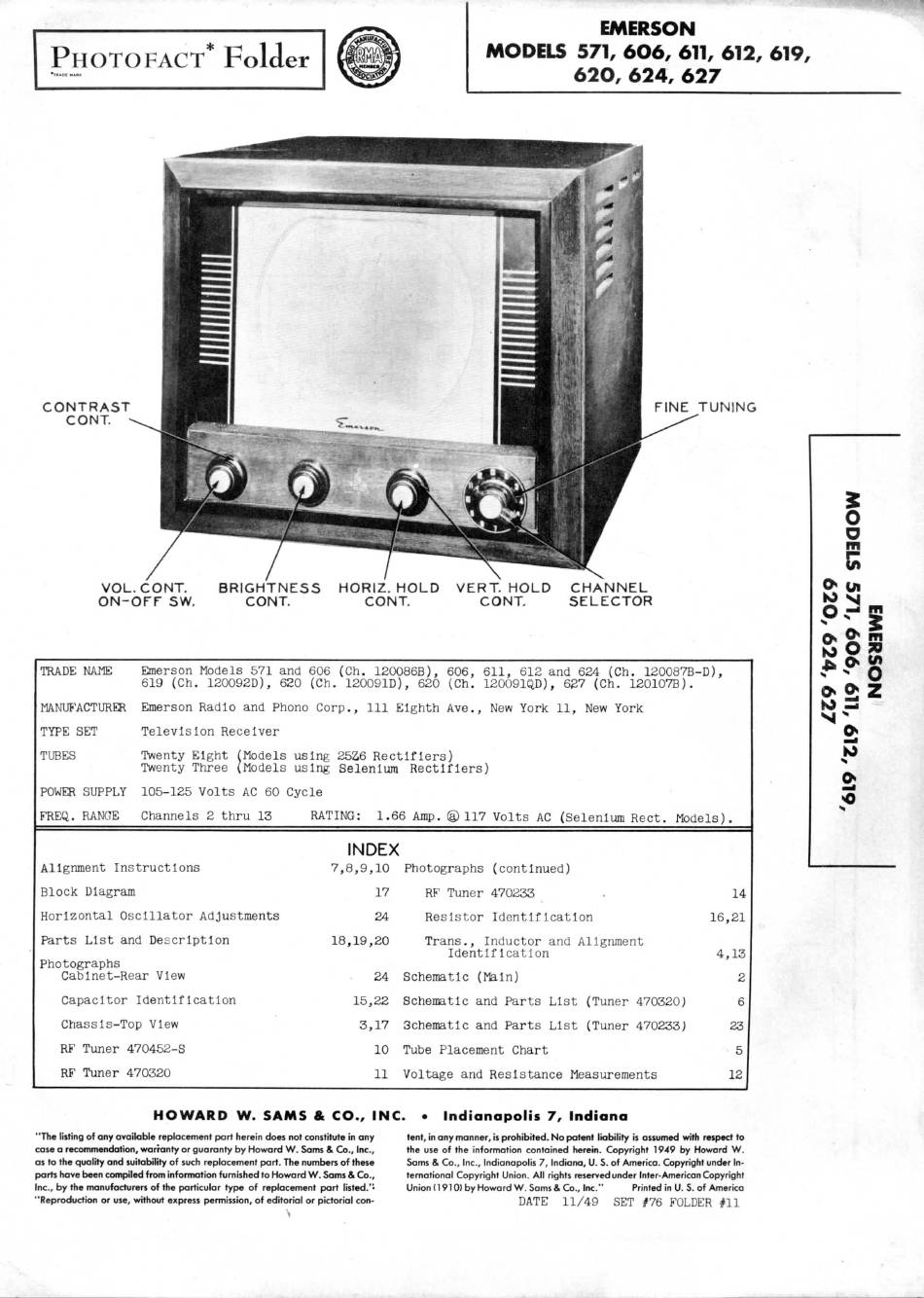

PHOTO FACT* Folder
EMERSON
MODELS 571, 6O6, 611, 612, 619,
62O, 624, 627
CONTRAST
CONT.
FINE TUNING
VOL. CONT.
ON-OFF SW.
BRIGHTNESS
HORIZ. HOLD
VERT. HOLD
CONT.
CONT.
CONT.
CHANNEL
SELECTOR
TRADE NAME
Emerson Models 571 and 606 (Ch. 120086B), 606, 611, 612 and 624 (Ch. 120087B-D),
619 (Ch. 120092D), 620 (Ch. 120091D), 620 (Ch. 120091QD), 627 (Ch. 120107B).
MANUFACTURER
Emerson Radio and Phono Corp., Ill Eighth Ave., New York 11, New York
TYPE SET
Television Receiver
TUBES
Twenty Eight (Models using 2 5 Z 6 Rectifiers)
Twenty Three (Models using Selenium Rectifiers)
POWER SUPPLY
105-125 Volts AC 60 Cycle
FREQ. RANGE
Channels 2 thru 13
RATING:
1.66 Amp. @ 117 Volts AC (Selenium Rect. Models).
Alignment Instructions
Block Diagram
Horizontal Oscillator Adjustments
Parts List and Description
Photographs
Cabinet-Rear View
Capacitor Identification
Chassis-Top View
RF Tuner 4 7 0 4 5 2 - S
RF Tuner 4 7 0 3 2 0
INDEX
7,8,9,10 Photographs (continued)
17
RF Tuner 4 7 0 2 3 3
14
24
Resistor Identification
16,21
18,19,20
Trans., Inductor and Alignment
Identification
4,13
24 Schematic (Main)
2
15,22
Schematic and Parts List (Tuner 4 7 0 3 2 0 )
6
3,17
Schematic and Parts List (Tuner 470233)
23
10 Tube Placement Chart
5
11
Voltage and Resistance Measurements
12
HOWARD W. SAMS & CO., INC.
Indianapolis 7, Indiana
"The listing of any available replacement part herein does not constitute in any
case a recommendation, warranty or guaranty by Howard W. Sams & Co., Inc.,
as to the quality and suitability of such replacement part. The numbers of these
parts have been compiled from information furnished to Howard W. Sams & Co.,
Inc., by the manufacturers of the particular type of replacement part listed.'*
"Reproduction or use, without express permission, of editorial or pictorial con-
tent, in any manner, is prohibited. No patent liability is assumed with respect to
the use of the information contained herein. Copyright 1949 by Howard W.
Sams & Co., Inc., Indianapolis 7, Indiana, U. S. of America. Copyright under In
ternational Copyright Union. All rights reserved under Inter-American Copyright
Union (1 910) by Howard W. Sams & Co., Inc."
Printed in U. S. of America
DATE
11/49
SET #76 FOLDER #11
