  • Page 1 Assembly and operation manual English Drive LG-500-868 / LG-500-868-GB for garage doors 06.2019 www.alutech-group.com...
  • Page 2 LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG) COMMANDES LEVIGATO (SERIE LG)
  • Page 3 Fig. | Abb. 2 — Electric drive – Elektroantrieb — Commande électrique — Remote control – Funkhandsender — Télécommande — Photocells – Lichtschranke — Photocellules — Key-switch – Schlüsseltaster — Interrupteur à clé — Lamp – Lampe — Lampe (with built-in antenna) (mit der eingebauten Antenne) (intégrée à...
  • Page 4 Fig. | Abb. 3 Fig. | Abb. 4 Fig. | Abb. 5 Fig. | Abb. 6 Fig. | Abb. 7 Fig. | Abb. 8 Ø10,5 Fig. | Abb. 9 Fig. | Abb. 10 LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG) COMMANDES LEVIGATO (SERIE LG)
  • Page 5 Fig. | Abb. 11 Fig. | Abb. 12 Fig. | Abb. 13 Fig. | Abb. 14 Fig. | Abb. 15 LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG) COMMANDES LEVIGATO (SERIE LG)
  • Page 6 Fig. | Abb. 16 Fig. | Abb. 17 Fig. | Abb. 18 Fig. | Abb. 19 Fig. | Abb. 20 Fig. | Abb. 21 Fig. | Abb. 22 LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG) COMMANDES LEVIGATO (SERIE LG)
  • Page 7 Fig. | Abb. 23 ALUTECH LAMP LAMP 24VDC/ 24 VDC/ max 50mA max 50 mA 10 11 13 14 6.3 А Fig. | Abb. 24 AC-DC 12-240 V DC/AC DC/AC 10 11 13 14 LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG)
  • Page 8 Fig. | Abb. 25 AC-DC AC-DC 12-24 V 12-24V 9 10 11 13 14 Fig. | Abb. 26 AC-DC AC-DC 12-24 V 12-24V 9 10 11 13 14 LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG) COMMANDES LEVIGATO (SERIE LG)
  • Page 9 Fig. | Abb. 27 Fig. | Abb. LEVIGATO DRIVES (LG SERIES) LEVIGATO ANTRIEBE (SERIE LG) COMMANDES LEVIGATO (SERIE LG)

  • Page 10: Table Of Contents

    ENGLISH CONTENTS General warnings and safety rules ............1.1.

  • Page 11: General Warnings And Safety Rules

    GENERAL WARNINGS AND SAFETY RULES GENERAL WARNINGS AND SAFETY RULES GENERAL INFORMATION ATTENTION! This manual contains important information concerning safety. Before installation and operation study closely all the information provided below. Save this manual for future reference! Follow safety and health regulations provided by any active regulatory documents and by those in this manual.
  • Page 12 GENERAL WARNINGS AND SAFETY RULES Before installation, remove all unnecessary parts (cables, ropes, chains, etc.) and turn o all unnecessary equipment, disconnect locking devices. There should be su cient space for the installation and operation of the drive system. Easy and safe manual release of the drive rail should be provided.

  • Page 13: During Operation

    GENERAL WARNINGS AND SAFETY RULES DURING OPERATION ATTENTION! The product should not be used by children or persons with limited physical, sensory or mental abilities, as well as not trained persons with insu cient experience and knowledge. Do not let children play with control elements. Remote controls should be located in the areas, unreachable by children.

  • Page 14: Product Description

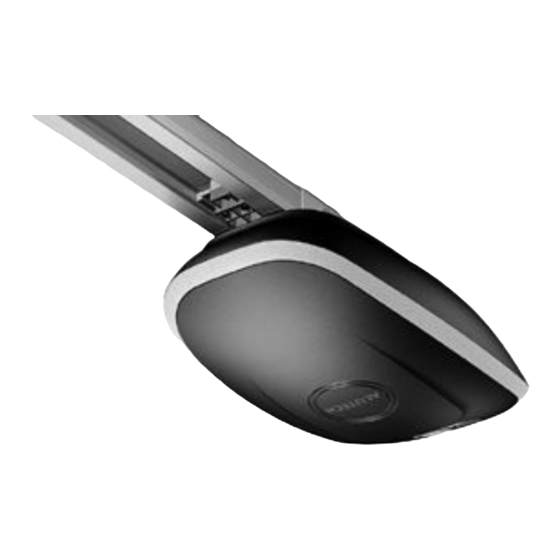

    PRODUCT DESCRIPTION PRODUCT DESCRIPTION LG-500-868 / LG-500-868-GB drive with a drive rail is designated for the automation of balanced sectional garage doors. The drive with a drive rail establishes it as a set for the automation of a garage door.

  • Page 15: Technical Speci Cations

    ** The data are given for a speci c type of ALUTECH doors and comply with the requirements of the safety standard for obstacle detection (EN 12453 type of built-in device C) for the factory settings of the drive.

  • Page 16: Preparation For Assembly

    PREPARATION FOR ASSEMBLY PREPARATION FOR ASSEMBLY Prior to mounting: • read the section 1. ‘General warnings and safety rules’ . Make sure that all rules and requirements are met. • determine the place, where each component of the drive system will be installed. Fig.

  • Page 17: Manual Release

    When using and installing additional electric devices (accessories) follow the manuals supplied. Incorrect connection can result in the failure of the drive. Use only additional devices (accessories), o ered by ALUTECH (including AN-Motors). ALUTECH does not bear responsibility for unstable operation of the drive system, if additional devices, produced by other manufacturers, are used.
  • Page 18 When the doors start to move, output PH.T activates B.Ch Input contacts for ALUTECH special unit with 2 × (12BC / 1.2 Ah) batteries and a charge module BAT− ( g. 29). Battery unit allows opening the doors in emergency mode (in case of power supply failure).

  • Page 19: Adjustment

    ADJUSTMENT ADJUSTMENT The adjustment of the drive is performed using the board with buttons. A display is used for indication ( g. 27). — the button to enter the settings menu and to exit the menu. — the button to enter the settings and con rm the selected value. —...
  • Page 20 ADJUSTMENT The door automatically moves to the point of contact The door automatically returns to the OPEN position The door automatically returns to the CLOSED position After completion of all positional settings of the door, ‘F1’ inscription will appear; to exit the setup menu press twice the button or wait for 15 seconds SETTING P1–F3: express-setup of the end positions and radio control setup...

  • Page 21: Radio Control Setup

    ADJUSTMENT Press the button to con rm; after that a dot will appear on the display In three seconds the automatic switch to the recording of the next remote control three will take place. To exit the programming mode press the button times or wait for 15 seconds RADIO CONTROL SETUP The menu ‘P2’...
  • Page 22 — — In the case of F1 and F3 settings, the unused buttons of the remote control can be recorded for control in other ALUTECH products, where AT-4N remote control can be recorded. Table 9 Press and hold the button...
  • Page 23 ADJUSTMENT Table 10 Press and hold the button for about 5 secs to enter the programming mode After the appearance of ‘P1’ inscription press the button After the appearance of ‘P2’ inscription press the button With the button select the required setting: ‘F7’—de ning the number of the remote control;...
  • Page 24 ADJUSTMENT Table 11 Similarly to tab. 10 items 1 to 4, enter the menu ‘P2’ and select the setting ‘F9’ After the appearance of ‘F9’ inscription press the button The number of the rst recorded remote control will appear on the display. With the button select the of remote to delete Press the button...

  • Page 25: Settings Of Operation Values

    ADJUSTMENT SETTINGS OF OPERATION VALUES The table 13 shows an example to enter the settings menu and to set the operation values. Table 13 Press and hold the button for about 5 secs to enter the programming mode After the appearance of ‘P1’ inscription press the button and select the required menu ‘P ’...
  • Page 26 Drive force when closing. When (EN 12453 type C of built-in device) for a closing, the detection of foreign object certain type of ALUTECH doors with the by the drive will result in an immediate permissible limit parameters (section 2.2.

  • Page 27: Factory Reset

    ADJUSTMENT DEFAULT DESCRIPTION MENU SETTING VALUES VALUE The delay time of the movement beginning (time of the preliminary 00, 01 … 10 activation of the signal lamp). During the delay time, the signal lamp (SL) works, it 00—0 , 10—10 secs signals the beginning of door movement by a set number of seconds...

  • Page 28: Testing And Commissioning

    TESTING AND COMMISSIONING TESTING AND COMMISSIONING This is an important stage of drive system installation. The test is performed as follows: • make sure that the requirements of section 1. ‘General warnings and safety rules’ and other manual requirements are met in full. •...

  • Page 29: Technical Maintenance

    (vendor, installation company). Table 16 FAULT POSSIBLE REASON RECOMMENDATIONS Drive does not work (ALUTECH Check the supply voltage. logo on the drive is not lit; display No supply voltage or fuse Check, and if necessary, replace...

  • Page 30: Storage, Transportation And Disposal

    STORAGE, TRANSPORTATION AND DISPOSAL FAULT POSSIBLE REASON RECOMMENDATIONS The drive stops during opening and completes independent Check the performance of photocells, reverse movement when Photocells are activated replace, if necessary; check the closing; the indicator shows error selected photocells mode in the menu number ‘E2’...

  • Page 31: Commissioning Certi Cate

    COMMISSIONING CERTIFICATE − damage of the product, resulting from unstable work of the power supply system or non- compliance of the power supply system with the values, established by the Manufacturer; − damage of the product, caused by water penetration; −...

  • Page 32: Information On Repairs During Warranty Period

    Phone: 0086 21 54888982, fax: 0086 21 54888926 Importer to the Republic of Belarus / Authorised representative: ALUTECH Systems s.r.o., 348 02, Czech Republic, Bor u Tachova, CTPark Bor, Nova Hospoda 19, D5-EXIT 128. Phone / fax: + 420 374 6340 01, e-mail: info@cz.alutech-group.com...
