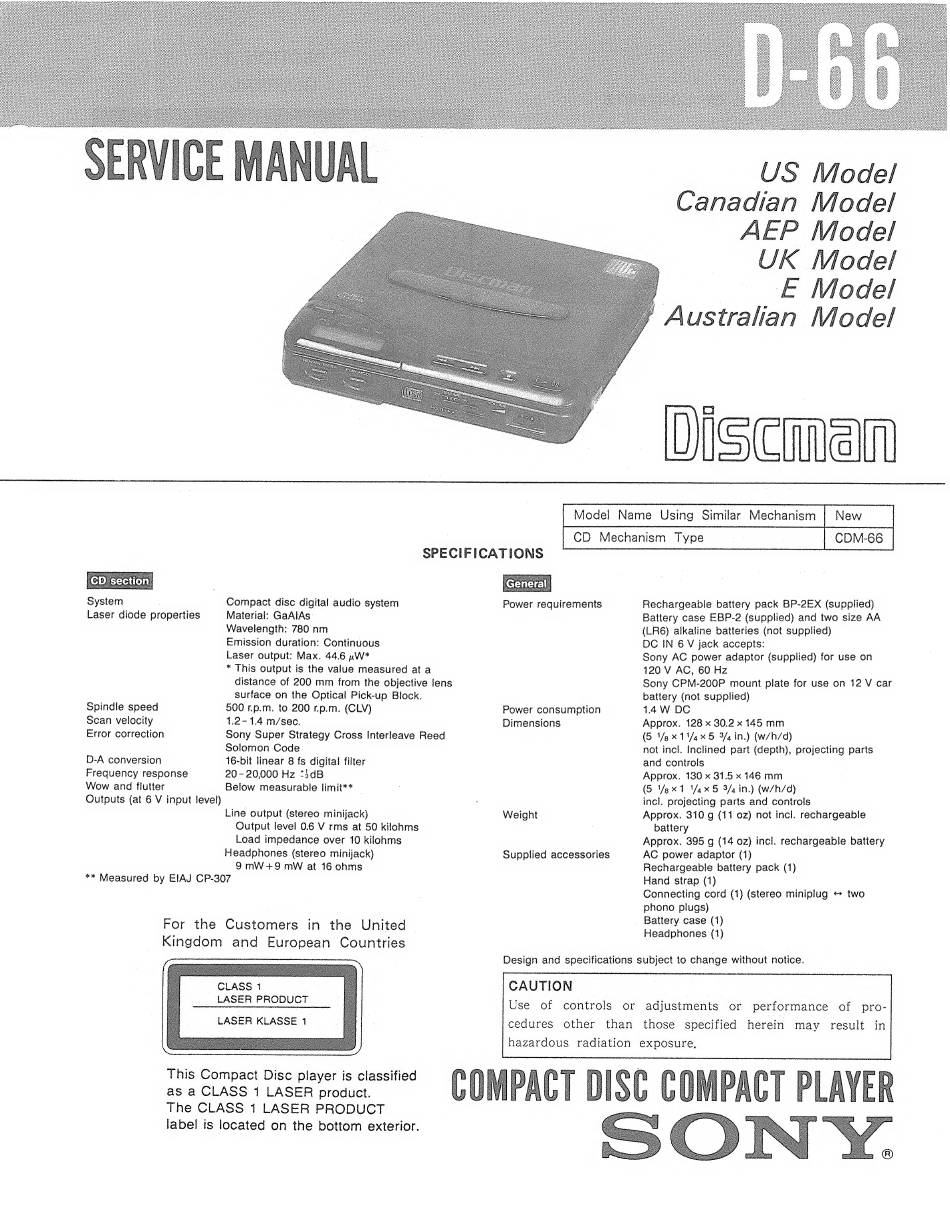

Sony D-66 Service Manual

System
Laser diode properties
Spindle speed
Scan velocity
Error correction
D-A conversion
Frequency response
Wow and flutter
SPECIFICATIONS
Compact disc digital audio system
Material: GaAlAs
Wavelength: 780 nm
Emission duration: Continuous
Laser output: Max. 44.6 ».W*
* This output is the value measured at a
distance of 200 mm from the objective lens
surface on the Optical Pick-up Block.
500 r.p.m. to 200 r.p.m. (CLV)
1.2-1.4 m/sec.
Sony Super Strategy Cross Interleave Reed
Solomon Code
16-bit linear 8 fs digital filter
20- 20,000 Hz *3dB
Below measurable limit**
Outputs (at 6 V input level)
Line output (stereo minijack)
Output level 0.6 V rms at 50 kilohms
Load impedance over 10 kilohms
Headphones (stereo minijack)
9mW+9 mW at 16 ohms
** Measured by EIAJ CP-307
For the Customers in the United
Kingdom and European Countries
CLASS 1
LASER PRODUCT
LASER KLASSE 1
This Compact Disc player is classified
as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT
label is located on the bottom exterior.
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Model Name Using Similar Mechanism
CD Mechanism Type
Power requirements
Power consumption
Dimensions
Weight
Supplied accessories
Rechargeable battery pack BP-2EX (supplied)
Battery case EBP-2 (supplied) and two size AA
(LR6) alkaline batteries (not supplied)
DC IN 6 V jack accepts:
Sony AC power adaptor (supplied) for use on
120 V AC, 60 Hz
Sony CPM-200P mount plate for use on 12 V car
battery (not supplied)
14W DC
Approx. 128 x 30.2 x 145 mm
(5 Vg x11/4x 5 3/4 in.) (w/h/d)
not incl. Inclined part (depth), projecting parts
and controls
Approx. 130 x 31.5 x 146 mm
(5 ex 1 /4x 5 3/4 in.) (w/h/d)
incl. projecting parts and controls
Approx. 310 g (11 0z) not incl. rechargeable
battery
Approx. 395 g (14 02) incl. rechargeable battery
AC power adaptor (1)
Rechargeable battery pack (1)
Hand strap (1)
Connecting cord (1) (stereo miniplug « two
phono plugs)
Battery case (1)
Headphones (1)
Design and specifications subject to change without notice.
CAUTION
Use of controls or adjustments or performance of pro-
cedures other than those specified herein may result in
hazardous radiation exposure,
