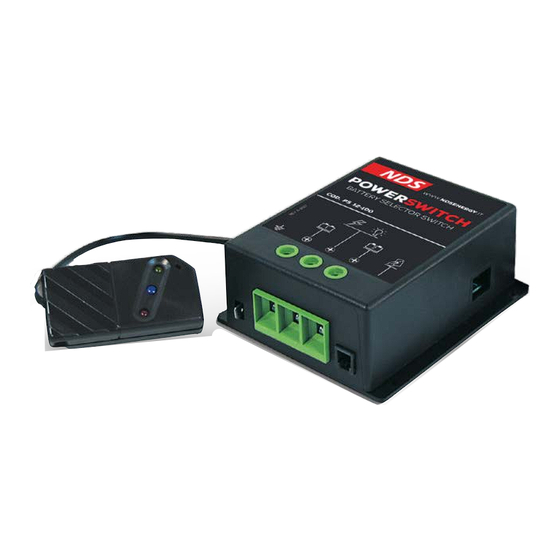

Summary of Contents for NDS POWERSWITCH PS 12-100

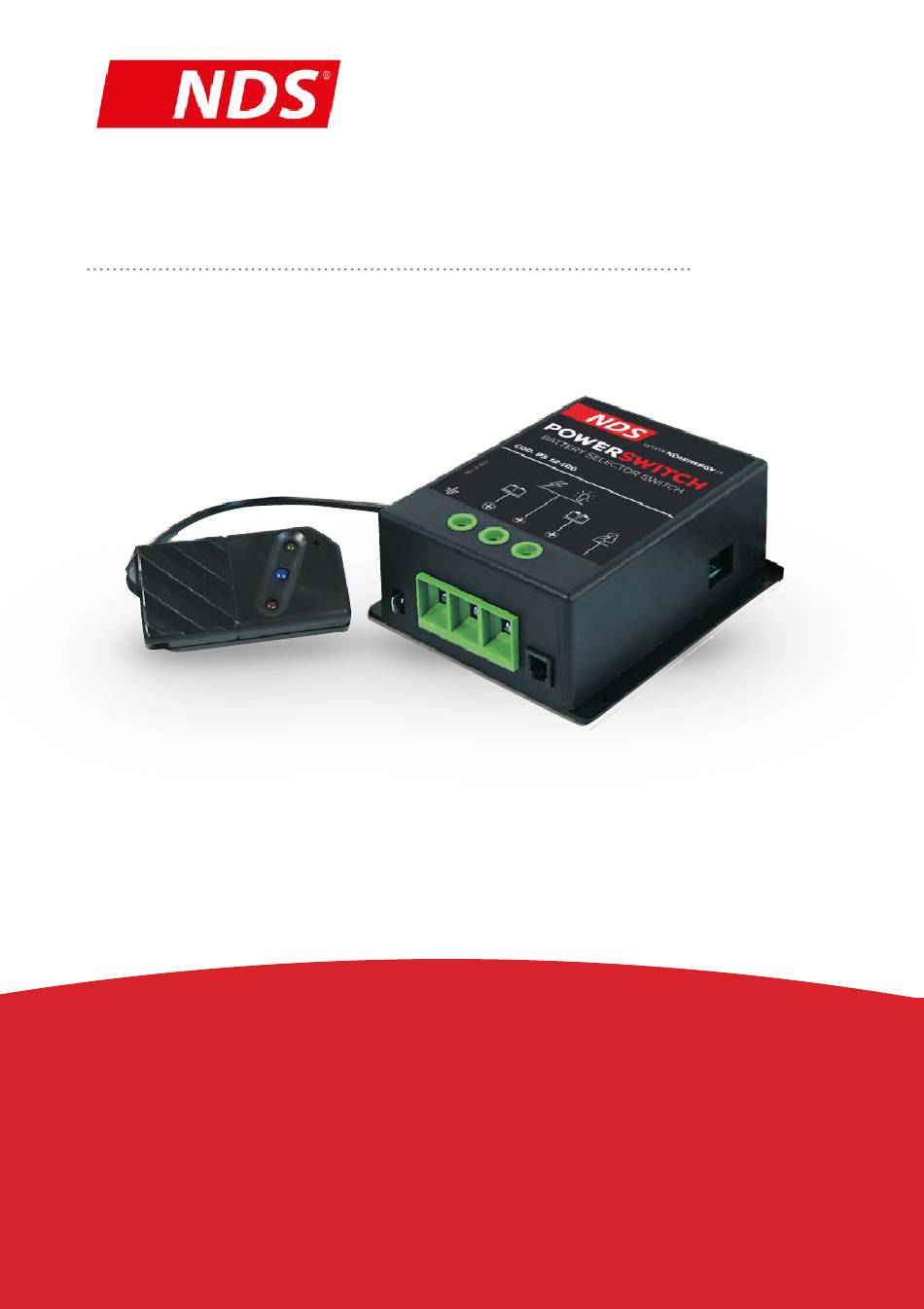

  • Page 1 POWERSWITCH User Manual ENGLISH VALID FOR THE FOLLOWING MODELS PS 12-10O...
  • Page 2 INSTRUCTIONS FOR THE PROPER DISPOSAL  This electronic product is subject to the European Directive 2012/19 / EU. Comply with local waste disposal regulations, do not dispose of old products with normal household waste. The proper disposal of products that can no longer be used prevents potential negative consequences for the environment and for the population.
  • Page 3: Table Of Contents

    INDEX 1. SAFETY INSTRUCTIONS 2. DESCRIPTION 3. OPERATION 4. REMOTE CONTROL 5. CONNECTIONS 6. TECHNICAL FEATURES 7. WARRANTY...
  • Page 4: Safety Instructions

    • The information contained in this manual may be changed without notice. NDS Energy s.r.l. reserves the right to make changes and improvements to the product at any time without notice and without obligation to apply these changes to the devices...
  • Page 5: Description

    • The images of the products are purely indicative and may therefore not be fully representative of the characteristics of the product, differing in color, size or accessories. 2. DESCRIPTION Energy needs in recreational vehicles often lead to secondary service battery adoption to achieve greater autonomy.
  • Page 6: Operation

    3. OPERATION POWERSWITCH has 2 functions: “switch” for the two batteries management, both during discharge and charging and “battery disconnector switch”. Both functions can be managed in automatic mode, or manual mode using the remote device supplied. BATTERY SWITCH Automatic mode •...
  • Page 7: Remote Control

    Automatic mode On discharging phase, if the voltage level of both batteries goes under 11 Volts, the device disconnect batteries alerting with an acoustic buzzer. Manual mode Pushing the selection button on the remote control for more than 5 seconds the battery will be completely disconnected from the system.
  • Page 8 GREEN LED SELECTION Button RED LED RJ11 CONNETTOR SIGNAL MEANING Continous Man. Sel. batt.1 Flashing auto sel. batt.1 Rapid flash Voltage batt.1 < 11V Green Cotinous Man. Sel. batt.2 Green Flashing auto sel. batt.2 Green Rapid flash Voltage batt.2 < 11V Red and green Continous Man.
  • Page 9: Connections

    5. CONNECTIONS CONNECTION FUNCTION Negative cable connection (section 1,5 mm Positive leisure battery 1 Wiring Positive pole Positive leisure battery 2 Remote control NOTE Solar regulator, inverter, original RV control unit, auxiliary power unit, battery charger, all this devices must be connected to PIN.3. CAUTION •...
  • Page 10: Technical Features

    6. TECHNICAL FEATURES POWER SWITCH - BLACKBOX Nominal voltage 12V Relay maximum current 100A automatic mode minimum working voltage Manual mode minimum 10,5V working voltage Connection size Cable section 6 to 35 mm Self-consumption 15mA Working temperature -15/+60°C Microcontroller with Technology latching relay Size 110x120x50mm...
  • Page 11 DECLARATION OF EU CONFORMITY - POWER SWITCH Company: NDS ENERGY S.R.L. Address: Via giovanni pascoli 65010 - cappelle sul tavo (PE) Italy Declares under its own responsibility that the product: Commercial Name: POWER SWITCH PS 12-100 Models: to which this declaration refers, is in compliance with...
  • Page 12: Warranty

    7. WARRANTY...
  • Page 16 TUTTA L’ENERGIA CHE TI SERVE ALL THE ENERGY YOU NEED 012_MANU_PowSW12-100_GB02 NDS ENERGY S.R.L. Via Pascoli, 96/98 65010 Cappelle sul Tavo (Pe) Italy Tel.:+39 085 4470396 Web: www.ndsenergy.it Email: customer@ndsenergy.it LIKE US: facebook.com/ndsenergysrl...
