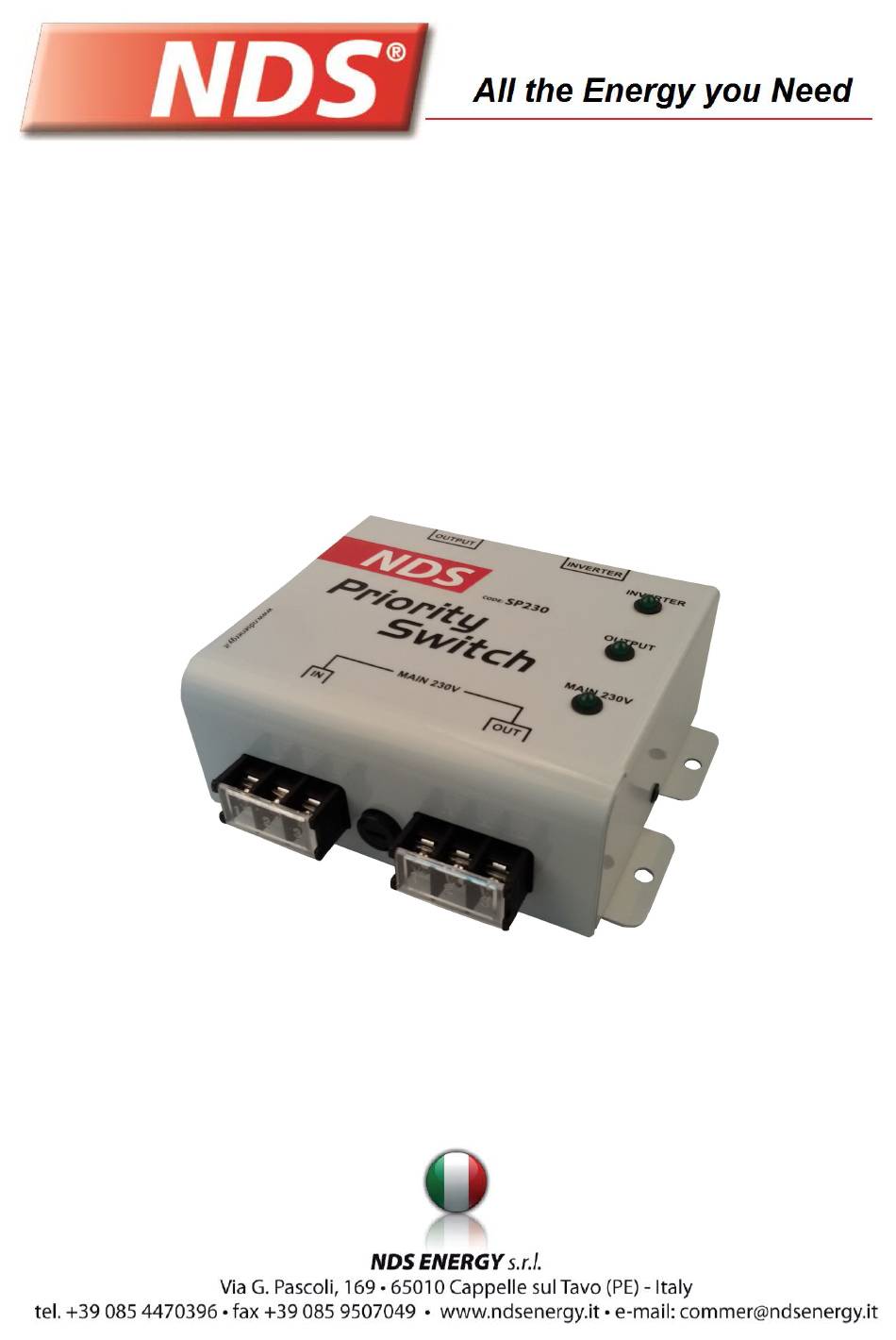

- Page 1 PRIORITY SWITCH Mod.: SP230 Operating Manual...
- Page 2 INDEX: 1. INTRODUCTION 1.1 SAFETY NOTES 1.2 WARNING 2. FUNCTIONING 3. INSTALLATION 4. TECHNICAL FEATURES 5. NOTES 6. WARRANTY...
- Page 3 The information in this manual are subject to change without notice. NDS Energy reserves the right to make changes and improvements to the product at any time without prior notice and without obligation to apply these changes to the devices previously distributed.
- Page 4 230Vac, by giving priority to the public main. When this one is disconnected from the system, the SP230 automatically switches the power from the inverter (and therefore from the batteries), on the output 230Vac.
-
Page 5: Installation
3. INSTALLATION: Install the device, as shown in the following photos, respecting the following caption: N (color blue connection) = Neutral L (color brown connection) = Phase Connection color buttercup-yellow / green = Ground RECOMMENDATIONS: - Use cables with at least 1.5mm². - Use cable ends with hole M3 / M4 for the fixing of cables to the connectors. -
Page 6: Technical Features
4. TECHNICAL FEATURES: Description Technical Features Nominal Voltage 230Vac Nominal Frequency 50/60Hz Maximum Power 2300W Maximum Current Dimensions L144 x W128 x H48.5 mm Weight 615g 5. NOTES:... -
Page 7: Warranty
Furthermore, we assume no liability for any direct or indirect damages. The SP230 returned, even if under warranty, will have to be shipped “Freight paid” and shall be returned on as “Freight collect”. The certificate of warranty shall be valid only if accompanied by a official receipt or delivery document.
