MWS6SM-PRM

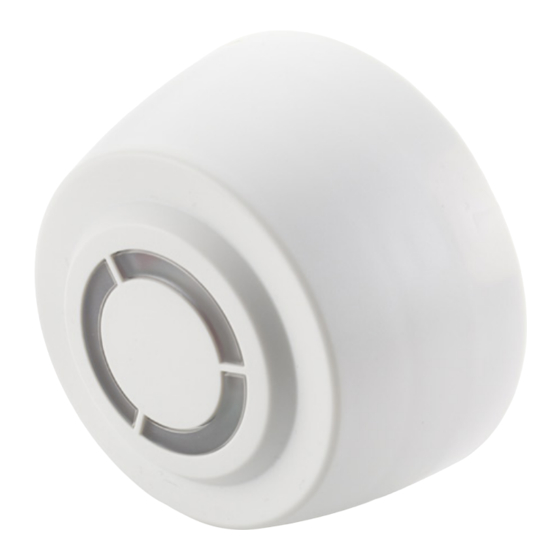

PRM switching, ceiling, surface mounted, microwave, presence/absence detector
PRM-Umschaltung, Decke, Aufputzmontage, Mikrowelle, Präsenz-/Abwesenheitsmelder
Detector de presencia/ausencia, montaje en superficie en techo, por microondas y
conmutación PRM
Permutação PRM, teto, montagem na superfície, micro-onda, detetor de presença/
ausência
Commutation PRM, pour plafond, montage en applique, micro-ondes, détecteur de
présence/absence
Rilevatore di presenza/assenza con commutazione PRM, da soffitto, installazione su
superficie, a microonde
Aan-/afwezigheidsdetector, PRM-schakeling, plafond, opbouw, microgolf
Микроволновый датчик присутствия, монтаж на потолок, полуавтоматический
режим, коммутация - реле
Downloads and Videos | Downloads und Videos | Descargas y Videos | Descargas e Videos |
Téléchargements & Vidéos | Downloads e Video | Downloads en Video's | Загрузки и Видео
WD606 Issue 6 Installation Guide
Warning | Warnung | Advertencia |
Aviso | Attention | Attenzione |
Waarschuwing | Внимание
EN
This device should
be installed by a qualified
electrician in accordance with
the latest edition of the IEE
wiring regulations.
DE
Dieses Gerät ist
ausschließlich von qualifizierten
Elektrofachkräften zu installieren.
ES
Sólo un electricista
cualificado debe instalar este
dispositivo.
PT
Somente um eletricista
qualificado deve instalar este
dispositivo.
cpelectronics.co.uk/cp/606
MWS6SM-PRM
FR
Seul un électricien
qualifié peut installer ce
dispositif.
IT
Il dispositivo deve
essere installato da un
elettricista qualificato.
NL
Dit apparaat moet
worden geïnstalleerd door een
gekwalificeerde elektricien.
RU
Это устройство
должно быть установлено
квалифицированным
электриком.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWS6SM-PRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CP Electronics MWS6SM-PRM

  • Page 1 WD606 Issue 6 Installation Guide MWS6SM-PRM MWS6SM-PRM PRM switching, ceiling, surface mounted, microwave, presence/absence detector PRM-Umschaltung, Decke, Aufputzmontage, Mikrowelle, Präsenz-/Abwesenheitsmelder Detector de presencia/ausencia, montaje en superficie en techo, por microondas y conmutación PRM Permutação PRM, teto, montagem na superfície, micro-onda, detetor de presença/ ausência...
  • Page 2 Microwave safety | Mikrowellensicherheit | Seguridad de microondas | Segurança de microondas | Sécurité micro-ondes | Sicurezza delle microonde | Magnetronveiligheid | Микроволновая безопасность The microwave radiation emitted A radiação de micro-ondas emitida De microgolfstraling die door deze by these units is extremely low power and por essas unidades é...
  • Page 3 Wiring | Verkabelung | Cableado | Ligações | Câblage | Cablaggio | Bedrading | Кабель L/Out L in Earth Leyenda Légende Legenda 1. Neutral 1. Neutro 1. Neutre 1. Nul 2. Live 2. Fase 2. Phase 2. Fase 3. 10A circuit protection if 3.
  • Page 4 Presence or absence detection | Anwesenheits- oder Abwesenheitserkennung | Detección de presencia o ausencia | Deteçao em presença ou ausência | Détection de présence ou d’absence | Rilevazione di presenza o assenza | Aanwezigheids- of afwezigheidsdetectie | Обнаружение присутствия или полуавтоматический режим The unit ships with presence detection as default.
  • Page 5 Installation | Instalación | instalação | Installazione | Installatie | Установка This device is designed to be flush Este dispositivo foi projetado para Dit apparaat is ontworpen voor ceiling-mounted. ser montado no teto. inbouwmontage in het plafond. • Do not site the unit where direct sunlight •...
  • Page 6 Wire location – Rear entry | Kabelführung – Rückseitiger Zugang | Ubicación de cables: entrada trasera | Localização de fio - entrada traseira | Emplacement du fil - Entrée arrière | Collocazione del cavo – Ingresso posteriore | Plaats van de kabel - Achteringang | Расположение провода - задний вход Pass cable through gasket Introduire le câble dans le joint (en (optional) and mounting plate.
  • Page 7 Wire in terminals | Verdrahtung der Anschlussklemmen | Conecte los terminales | Fio nos terminais | Câbler les bornes | Cablare i terminali | Kabel in terminals | Провод в клеммах Wire cables into terminals using Câbler les bornes en respectant le required wiring diagram.
  • Page 8 Default Settings | Werkseinstellung | Parámetros por defecto | Configurações por omissão | Paramètres par défaut | Impostazioni predefinite | Standaard instellingen | Настройки по умолчанию Time out: 20 minutes. Tempo limite: 20 minutos. Uitschakeltijd: 20 minuten LUX on level: 9 LUX on nível: 9 Lichtdrempel aan niveau: 9 LUX off level: 9...
  • Page 9: Presence Detection

    Testing | Prüfen | Pruebas | Teste | Test | Verifiche | Testen | Тестирование 1. Power up the sensor. The load 1. Alimenter le capteur : la charge Presence Detection should come on immediately. devrait s’allumer immédiatement. 2. Vacate the room or remain very still and 2.
  • Page 10 Technical Data Technische Daten Part code MWS6SM-PRM Teile-code MWS6SM-PRM Weight 0. 1 50kg Gewicht 0. 1 50kg Supply voltage AC 230 VAC +/- 10% Versorgungsspannung AC 230 VAC +/- 10% Supply frequency 50Hz Versorgungsfrequenz 50Hz Power consumption parasitic Parasitäre stromverbrauch...
  • Page 11: Datos Técnicos

    Datos Técnicos Dados Técnicos Código de pieza MWS6SM-PRM Código da peça MWS6SM-PRM Peso 0. 1 50kg Peso 0. 1 50kg Voltaje de entrada de CA 230 VAC +/- 10% Tensão de alimentação CA 230 VAC +/- 10% Frecuencia de suministro 50Hz Freqüência de fornecimento...
  • Page 12: Données Techniques

    Données Techniques Specifiche Tecnichev Code de la pièce MWS6SM-PRM Codice parte MWS6SM-PRM Poids 0. 1 50kg Peso 0. 1 50kg Tension d’alimentation CA 230 VAC +/- 10% Tensione di alimentazione CA 230 VAC +/- 10% Fréquence d’alimentation 50Hz Frequenza di alimentazione 50Hz Consommation électrique parasite...
  • Page 13: Technische Data

    Technische data Технические характеристики Onderdeelcode MWS6SM-PRM Код детали MWS6SM-PRM Gewicht 0. 1 50kg Вес 0. 1 50кг Напряжение питания переменного Voedingsspanning AC 230 VAC +/- 10% 230 В AC +/- 10% тока Voedingsfrequentie 50Hz Частота питания 50Гц Energieverbruik in ruststand 895mW Потребляемая...
  • Page 14 This page is intentionally left blank | Diese Seite wurde absichtlich leer gelassen | Esta página se ha dejado en blanco intencionalmente | Esta página foi intencionalmente deixada em branco | Cette page a été laissée blanche intentionnellement | Questa pagina è stata lasciata vuota intenzionalmente | Deze pagina is met opzet leeg gelaten | Эта...
  • Page 15 This page is intentionally left blank | Diese Seite wurde absichtlich leer gelassen | Esta página se ha dejado en blanco intencionalmente | Esta página foi intencionalmente deixada em branco | Cette page a été laissée blanche intentionnellement | Questa pagina è stata lasciata vuota intenzionalmente | Deze pagina is met opzet leeg gelaten | Эта...
  • Page 16 Brent Crescent, London NW10 7XR t. +44 (0)333 900 0671 enquiry@cpelectronics.co.uk www.cpelectronics.co.uk connect with us Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice. WD606 Issue 6 Installation Guide, MWS6SM-PRM...
