CP Electronics MWS6-PRM-L3 Product Manual

MWS6-PRM-L3

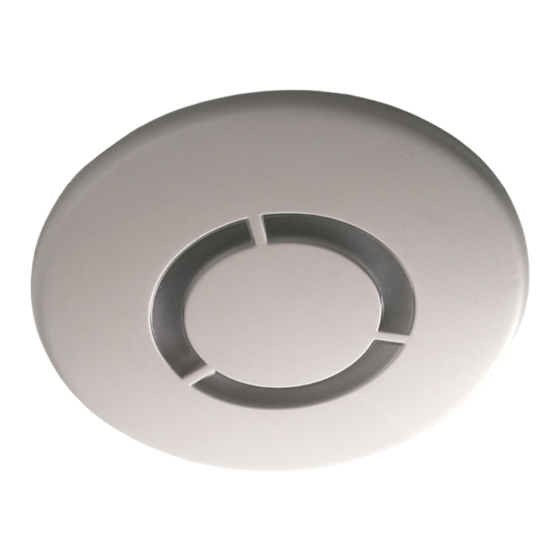

Ceiling microwave detector with 3m pre-wired lead

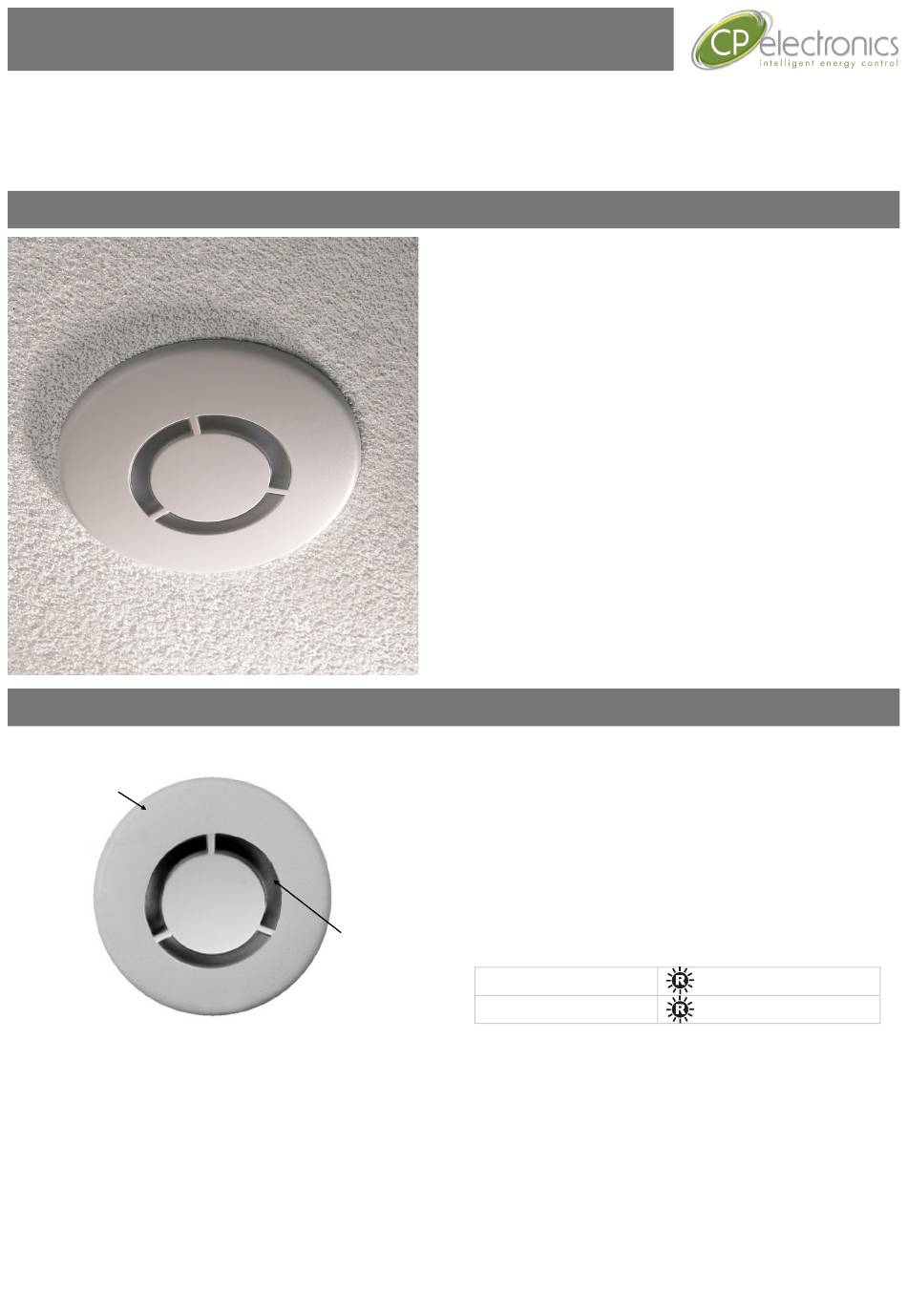

Front features
Mounting Bezel
Product Guide
The MWS6-PRM-L3 microwave presence detector
provides automatic control of lighting.
The MWS6-PRM-L3 detects movement using a highly
sensitive microwave detector. This works by emitting low
power microwave signals and measuring the reflections as
the signals bounce off moving objects.
The output channel comprises a mains voltage relay
capable of simple on/off switching.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
Microwave Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
The LED flashes Red to indicate the following:
which covers...
Microwave Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Overview
Features
when movement is detected
