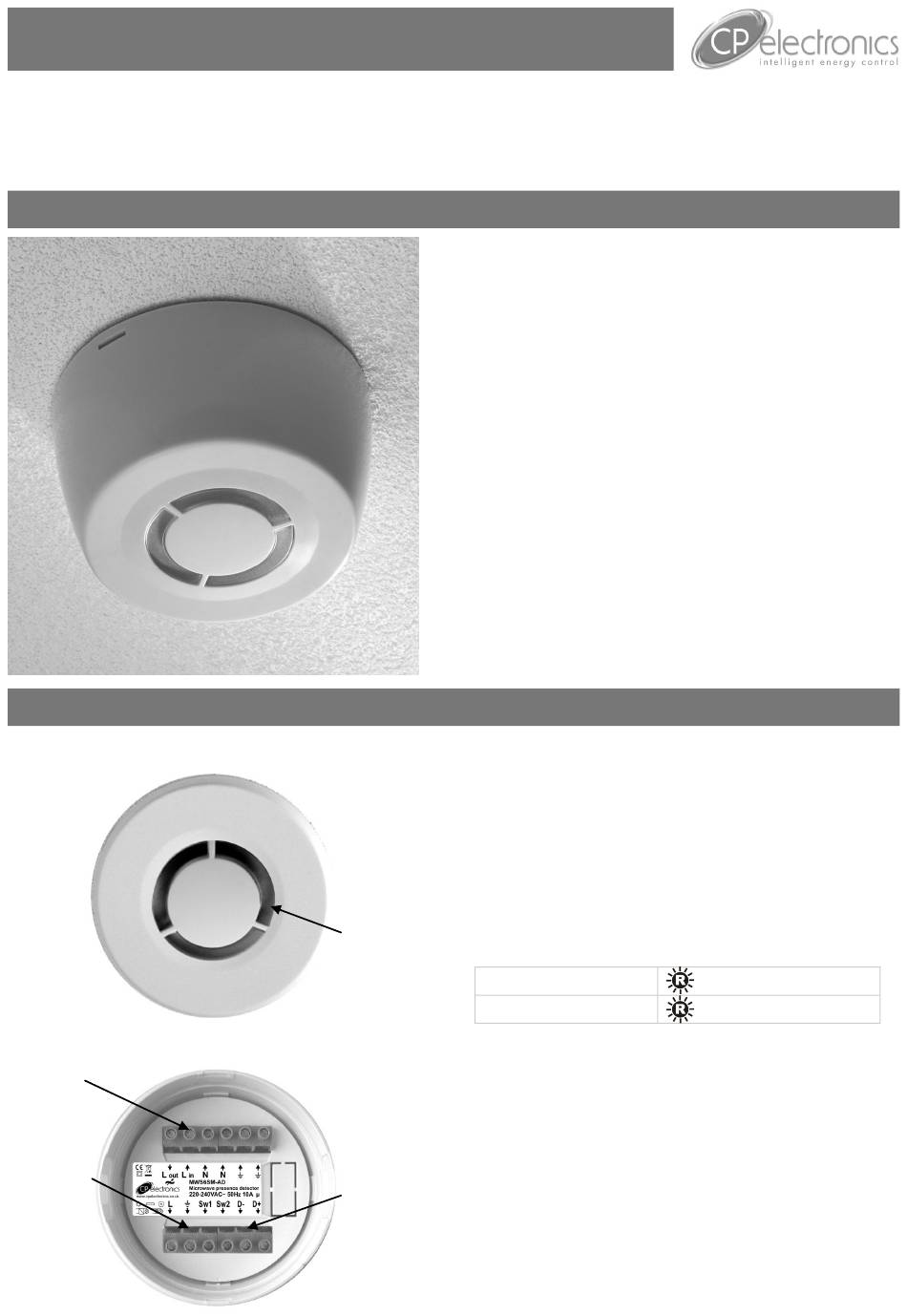

CP Electronics MWS6SM-AD Product Manual

MWS6SM-AD
Ceiling microwave presence detector – 1-10V dimming
Front features
Back features
Power Input
& Switched
Output
connections
(Channel 1)
Switch Input
Connector
Product Guide
The MWS6SM-AD microwave (passive infrared) presence
detector provides automatic control of lighting loads with
optional manual control. The MWS6SM-AD detects
movement using a highly sensitive microwave detector.
This works by emitting low power microwave signals and
measuring the reflections as the signals bounce off moving
objects.
Output Channel 1 comprises a mains voltage relay capable
of simple on/off switching, while Output Channel 2 provides
dimmable control of 1-10V ballasts.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight, or to implement a maintained
illuminance (daylight harvesting) system.
All functionality is fully programmable using an IR handset.
Microwave Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
Microwave Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Switched Output Connector (Channel 1)
Used to connect mains power to the unit and to connect a
switched load.
Dimmable Control Output Connector (Channel 2)
Used to connect 1-10V controllable ballasts and
transformers for dimmable loads.
Dimmable
Switch Input Connector
Control Output
Two input terminals can be used to manually override the
Connector
dimming levels and override the lights on or off.
(Channel 2)
Overview
Features
when movement is detected
