CP Electronics MWS6-PRM-LV Product Manual

MWS6-PRM-LV
Ceiling Microwave presence/absence detector 12-24V AC/DC

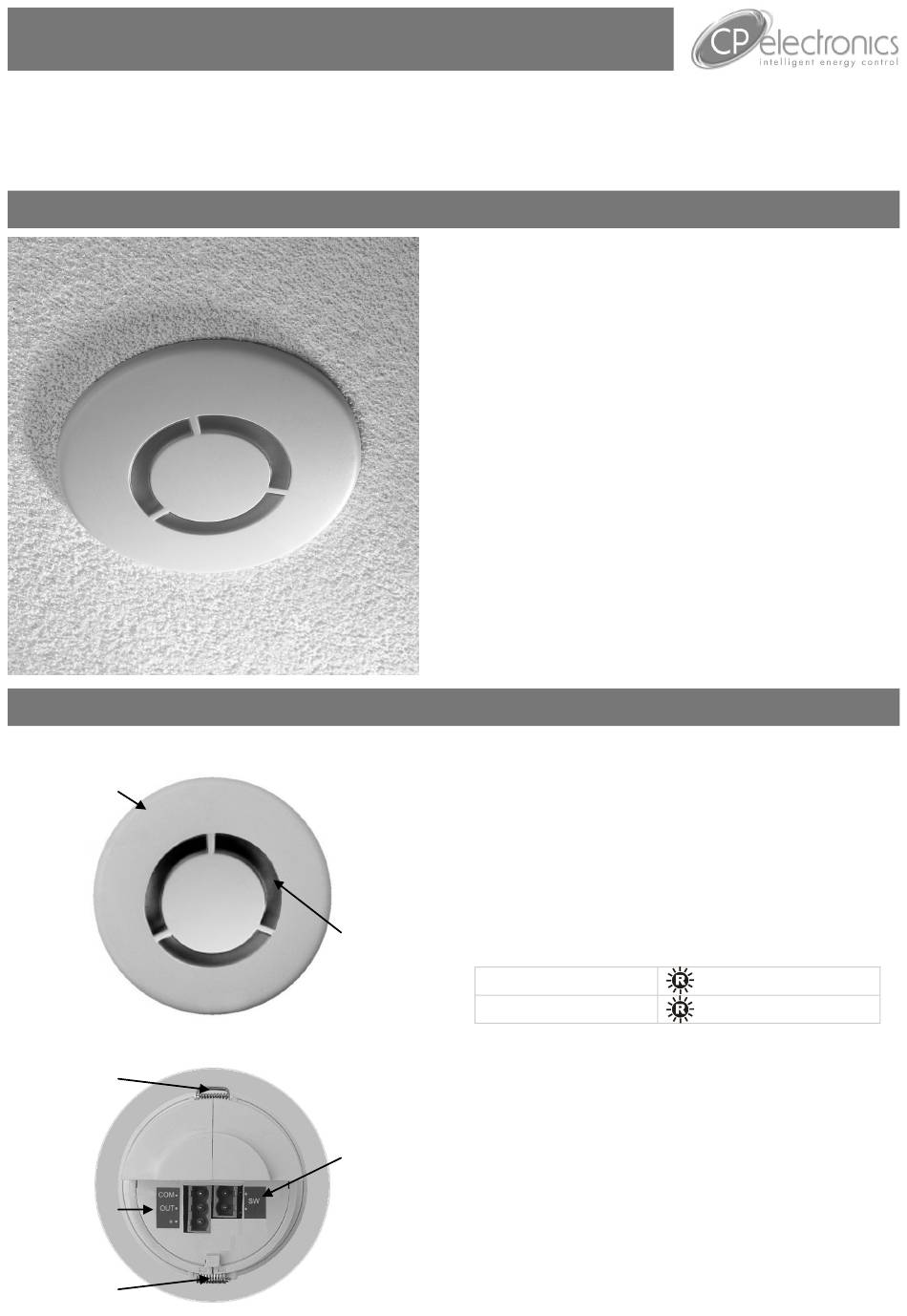

Front features
Mounting Bezel
Back features
Retaining Spring
Power Input &
Output
Connector
Retaining Spring
Product Guide
The MWS6-PRM-LV Microwave presence detector provides
automatic control of low voltage loads including lighting and
BMS systems with optional manual control. The MWS6-
PRM detects movement using a highly sensitive microwave
detector. This works by emitting low power microwave
signals and measuring the reflections as the signals bounce
off moving objects.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
MWS6-PRM-LV
MWS6-PRM-LV-GOLD
MWS6-PRM-LV-OC
Microwave Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
Microwave Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Output Connector
Used to connect power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or off.
Switch Input
Connector
Overview
Ceiling Microwave presence/absence
detector 12-24V AC/DC
Ceiling Microwave presence/absence
detector 12-24V AC/DC for low current
Ceiling Microwave presence/absence
detector 12-24V AC/DC and open
collector output
Features
when movement is detected
