Summary of Contents for thomann DP-140BP UW

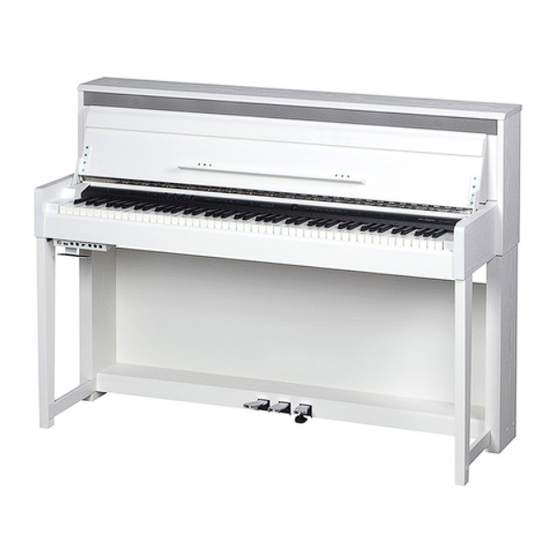

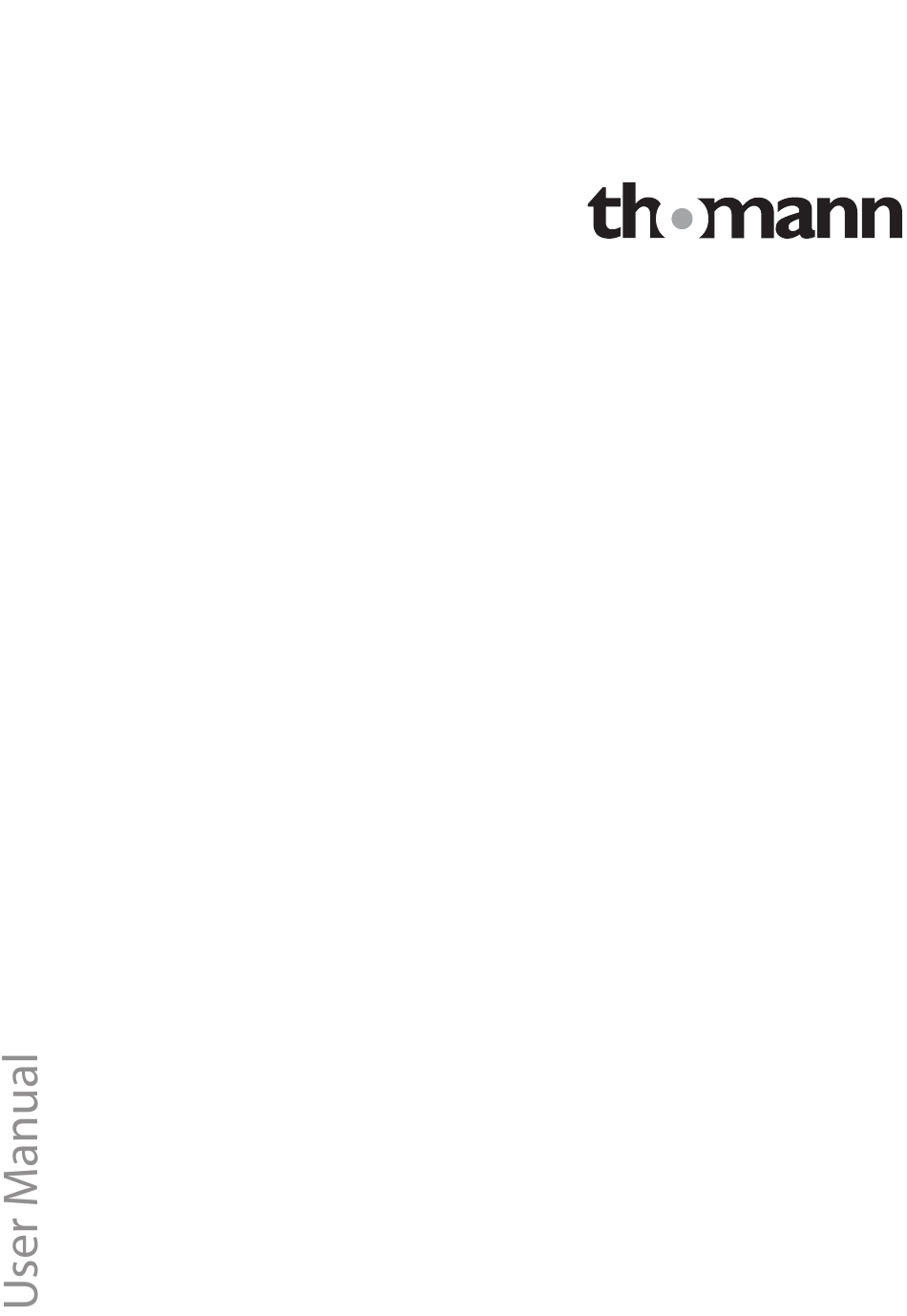

- Page 1 DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.02.2024, ID: 516817, 533288, 568943 (V3)
-
Page 3: Table Of Contents
7.8.11 Song playback......................29 7.8.12 Keyboard Local ON / OFF..................29 7.8.13 System settings......................30 Technical specifications....................32 Troubleshooting........................34 Voice list............................ 35 Song list............................ 36 MIDI implementation chart..................... 38 Protecting the environment................... 40 DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 4 DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 6: Safety Instructions
Only operate the external power supply from professionally installed mains sockets that are protected by a residual current circuit breaker (FI). As a precaution, disconnect the power supply from the power grid when storms are approaching or it the device will not be used for a longer period. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 7 The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the floor. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 8: Features
Loudspeaker load capacity: 2 × 30 watt + 2 × 20 watt Automatic shutoff, can be deactivated Operating system: Windows® 8 and newer, Mac OS X® 10.8 and newer DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 9: Assembly Instructions
6 × plastic caps 10 × screws 4 × 15PA 6 × screws 6 × 18BM 2 × hand screws 2 × screws 3 × 8BM Headphones halter Pedal cable Power cord DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 10 M6 × 40 (6) on each side to affix both side panels to the pedal box. Attach the six plastic caps (7). & Fasten the rear panel (5) to the pedal box and the side panels with ten screws 4 × 15PA (8). DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
- Page 11 ð The display shows ‘Loading..’ . If the digital piano is not in use or when a thunderstorm with danger of lightning threatens, disconnect the device from its mains power for safety. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
- Page 12 Assembly instructions Pedals ö # $ Soft pedal Sostenuto pedal Sustain pedal DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 13: Connections And Controls
17 [DUAL] | button to activate / deactivate the dual mode 18 [SPLIT] | button to activate / deactivate the split mode 19 [TWINOVA] | button to activate / deactivate the TWINOVA function DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 14 Connect both channels (R and L / Mono) for stereo transmission. Only connect channel (L) for mono transmission. Piano keys The keyboard keys are referred to in this manual as shown below. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 15: Connection Options
NOTICE! To prevent damage to the speakers, turn the volume down to “Min‐ imum” before you connect other devices to the digital piano. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 16 When the Sostenuto pedal is pressed, the currently played notes linger until you release the pedal. Sustain pedal With the sustain pedal all played notes sound longer. This effect simulates the lifting of the damper in an analogue keyboard instrument. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 17: Operating
Use the rotary control [BRILLIANCE] to set the sound character of the digital piano. Turn the rotary control [BRILLIANCE] clockwise to adjust the treble for the entire keyboard. Turn the rotary control [BRILLIANCE] counterclockwise to adjust the bass for the entire keyboard. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 18: Split Point Setting
Set the time signature of the metronome in the function menu as described under Ä Chapter 7.8.5 ‘Metronome time signature’ on page 27. If you turn on the metronome during recording, the metronome beat will not be recorded. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 19: Voices
To change the combination of voices, press repeatedly [VOICE] to toggle between the first and second right hand voices. Then use the rotary control to select the desired voice. Press [DUAL] again to exit the Dual mode. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 20: Split Mode
You can use the Piano mode to simulate playing an acoustic piano. Press [PIANO] to activate the piano mode. Press [VOICE] to disable the piano mode. Dual and Split mode are not available in piano mode. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 21: Twinova
ð The display shows ‘L-OFF’ or ‘R-OFF’ . Press [LEFT] or [RIGHT] again to unmute. Press [START / STOP] again to stop song playback. Press [SONG] to disable the song mode. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 22: Playing Songs Off A Usb Flash Drive
Press [REC] to call up the recording menu. ð If you have selected the digital piano's internal memory as the storage location, the display shows ‘Overwrite User Song?’ . DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 23 If desired, press [LEFT] or [RIGHT] to mute the left-hand or right-hand chord sec‐ tion during the recording and play along with this part yourself. ð The display shows ‘L-OFF’ or ‘R-OFF’ . Press [LEFT] or [RIGHT] again to unmute. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 24: Function Menu
Press repeatedly [FUNCTION] to select a desired parameter that you want to change. Alternatively, hold down [FUNCTION] and use the rotary control to select a desired parameter that you want to change. Use the rotary control to change the desired parameter. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 25: Transposing
Press repeatedly [FUNCTION] and select ‘TRANSPOSE’ . Alternatively, hold down [FUNCTION] and use the rotary control to select ‘TRANSPOSE’ . Use the rotary control to adjust the pitch in semitone steps. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 26: Octave Shift
Flat Touch sensitivity is off. This can be very recommendable when playing the organ voice. The set velocity is automatically saved when the digital piano is switched off. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 27: Volume
Press repeatedly [FUNCTION] and select ‘STINRG RES.’ . Alternatively, hold down [FUNCTION] and use the rotary control to select ‘STINRG RES.’ . Use the rotary control to set the desired string resonance between ‘0’ and ‘32’ . DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 28: Reverb Effect
Press repeatedly [FUNCTION] and select ‘CHORUS LEVEL’ . Alternatively, hold down [FUNCTION] and use the rotary control to select ‘CHORUS LEVEL’ . Use the rotary control to set the desired chorus effects depth between ‘0’ and ‘32’ . DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 29: Vocal Effect
The set playback mode is automatically saved when the digital piano is switched off. 7.8.12 Keyboard Local ON / OFF Press repeatedly [FUNCTION] and select ‘LOCAL’ . Alternatively, hold down [FUNCTION] and use the rotary control to select ‘LOCAL’ . DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 30: System Settings
Alternatively, hold down [FUNCTION] and use the rotary control to select ‘MIDI OUT CH’ . Use the rotary control to set the MIDI channel for the Part Voice R1 between ‘1’ and ‘16’ . DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 31 Do not switch off the digital piano during the factory reset. Internal data and the digital piano can be damaged. After resetting to the factory default settings, all personal settings and the user song are irrevocably deleted and cannot be restored. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 32: Technical Specifications
1,407 mm × 1,062 mm × 505 mm Weight 52 kg Colour Matt black (item no. 516817), matt white (item no. 533288), polished black (item no. 568943) Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 33 Technical specifications Further information Wooden keyboard no (item no. 516817, item no. 533288) yes (item no. 568943) Ivory-Feel keyboard Auto accompaniment Number of rhythms DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 34: Troubleshooting
Interference occurs when using a cell phone. Using a mobile phone near the digital piano can cause inter‐ ference. To prevent this, turn off the mobile phone or use it only at a safe distance. DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 35: Voice List
Tenor Sax Church Organ Baritone Sax Reed Organ Flute Accordion Pan Flute Tango Accordion Sitar Guitar & Bass 1 Banjo Guitar & Bass 2 Shamisen Bass & Vibra Koto Violin Bag Pipe DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... -
Page 36: Song List
The Farewell Minuet In G Major (BWV Anh. 116) The Chase Innocence Habanera Tchaikovsky Waltz Prelude In C Major Salut d' Amour Piano Sonata In C Major, K.545. Barcarolle Piano Sonate op.49-2 DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 37 The two part inventions 2 The Nightingale was singing Gavotte Gipsy Rondo The angels singing Fountain Minuet Fur Elise Lyrical Rondo Prelude F-Dur/F major BWV927 Swallow Prelude d-Moll/D minor BWV935 Minute Waltz DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 38: Midi Implementation Chart
Reverb Program Chorus Program Reverb Level Chorus Level All Sound Off Reset All Controllers All Notes Off Program Change True # *********** 0 - 127 System Exclusive System Common Song Position Pointer DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano... - Page 39 System Real Time Clock Commands Aux Messages LOCAL ON/OFF Active Sensing System Reset Notes: MIDI channel modes POLY MONO ON OMNI ON Mode 1 Mode 2 OMNI OFF Mode 3 Mode 4 DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
-
Page 40: Protecting The Environment
Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it. - Page 41 Notes DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
- Page 42 Notes DP-140B U BK, DP-140WH U, DP-140BP UW Digital Piano...
- Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
