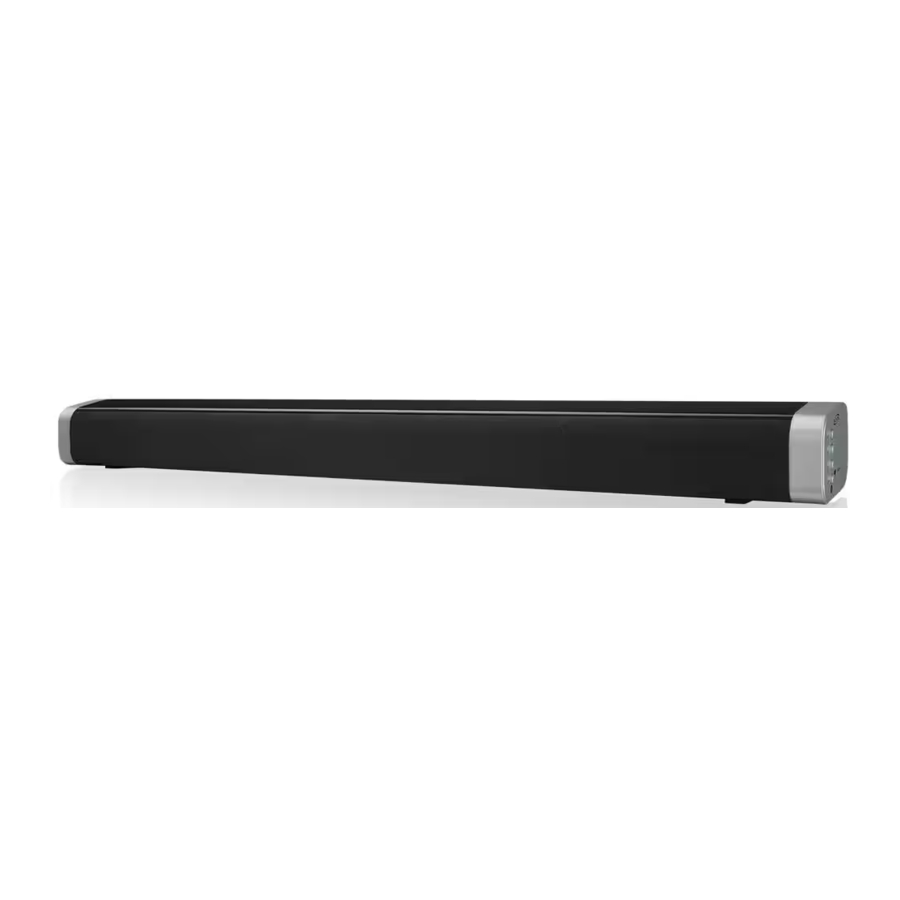

iLive ITB037SO - HD Soundbar Manual

Overview

Includes

  • RCA stereo audio cable
  • Wall Mounting hardware & instructions
  • AC/DC Power adapter
  • Remote control & battery

Features

  • Voice prompts announce speaker functions
  • Bluetooth Wireless: 60 ft. range
  • Built-in stereo speakers
  • Line In (3.5mm audio input)
  • Optical digital audio input
  • RCA stereo audio inputs
  • Wall mountable
  • DC power input

Front View

Front View

Rear View

Rear View

Right Side Controls & Input

Right Side Controls & Input

Remote Control & Battery


Remote requires 1 CR2025 button cell battery (included).

Power
Press to power ON/OFF.

Mute
Press to mute audio.

Bluetooth
Press to switch to Bluetooth audio source. Remote does not initiate pairing, use Pair button on speaker.

Aux/Line In
Press to select Aux In/ Line In source.

Optical
Press to select Optical audio source.

Skip Back/Fwd
Press to skip the selected track (BLUETOOTH MODE).

Play/Pause
Press to play or pause the selected track (BLUETOOTH MODE).

Volume −/+

Power

Plug the AC/DC power adapter (included) into the DC Input on the back of the unit and a standard wall outlet.
Power

Bluetooth Wireless Audio

Pairing to a Device & Playing Audio

After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the steps listed here.

  1. Power ON the soundbar and press Source on the soundbar or on the remote to select Bluetooth Mode. Press the Pair button to begin pairing. The Pairing Indicator will begin quickly flashing blue. When pairing, remain within 3 feet of the unit.
  2. Using the controls on your Bluetooth device, search for and select ITB037 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0. If need be, refer to the user's manual for your specific device for instructions on connecting Bluetooth devices.
  3. When successfully paired, the Pairing Indicator will turn solid, an audible chime will sound and a voice will announce the connection. Use the controls on the connected device to select and begin playing audio.

Previously Connected Devices

  • The soundbar can remember multiple Bluetooth devices and will always try to re-connect to the last device used.
  • To re-connect to a different device, turn off Bluetooth on unwanted devices, then access the Bluetooth settings menu on the device you wish to use and select ITB037.

Aux In (Stereo RCA Inputs)

Requires RCA stereo audio cable (included). When connecting an RCA stereo audio cable (Red/White), match the colored ports to their corresponding plugs.

  1. Connect the RCA stereo audio cable to the Aux Inputs on the soundbar and the audio outputs on a television or other audio source.
  2. Power ON the soundbar and press Source on the soundbar or Aux/Line In on the remote to select Aux In Mode. A voice will announce the source mode and the indicator will turn green.
  3. Audio played through the television or other source should now be heard through the speakers.

Optical Input

Requires: An audio source with an Optical Audio Output and a Digital Optical Audio Cable (not included).

  1. Using a Digital Optical Audio Cable, connect the optical output on your audio source (TV, amplifier, etc.) to the Optical Input on the soundbar
  2. Power ON the soundbar and press Optical on the remote or Source on the soundbar to select Optical/SPDIF Mode. A voice will announce the source mode and the indicator will turn orange.
  3. On the connected audio source (TV, amplifier, etc.), make sure the audio settings are set to PCM or Optical Audio and are turned on.
  4. Audio played through the connected audio source (TV, amplifier, etc.) should now be heard through the speakers.

information Important tips for optical audio:

  • Use the correct toslink cable and make sure that it is firmly seated in both source and sound bar sockets.
  • Optical output is activated on the source (they should see a red light emitting from the toslink socket). It may be labeled SPDIF in the setting menu of the source.
  • The optical output is set to output PCM and not Dolby Digital.

Line In

Requires a 3.5 mm audio cable (not included).
Line In

  1. Using a 3.5 mm audio cable, connect the Line In on the soundbar to the audio output/headphone jack on a smartphone or other audio source.
  2. Power ON the soundbar and press Source on the soundbar or Aux/Line In on the remote to select Aux In Mode. A voice will announce the source mode and the indicator will turn green. Connecting via Line In overrides the Aux In source. Remove the 3.5mm audio cable to hear the Aux In source again.
  3. Audio played through the connected device should now be heard through the speakers. Use the controls on the connected device to play, pause, or skip selected tracks.

International Support

Customer Service: 1-888-999-4215
Email Support: prodinfo@dpiinc.com
Email Parts: partsinfo@dpiinc.com

WARNINGS


  • Shock hazard - Do Not Open.
  • Caution and marking information is located at the rear or bottom of the apparatus.
  • Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.

  • TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
  • Objects filled with liquids, such as vases, shall not be placed on the apparatus

  • Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.
  • Only use the included power supply or a UL/ETL certified power supply of the same power output specifications.


This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
