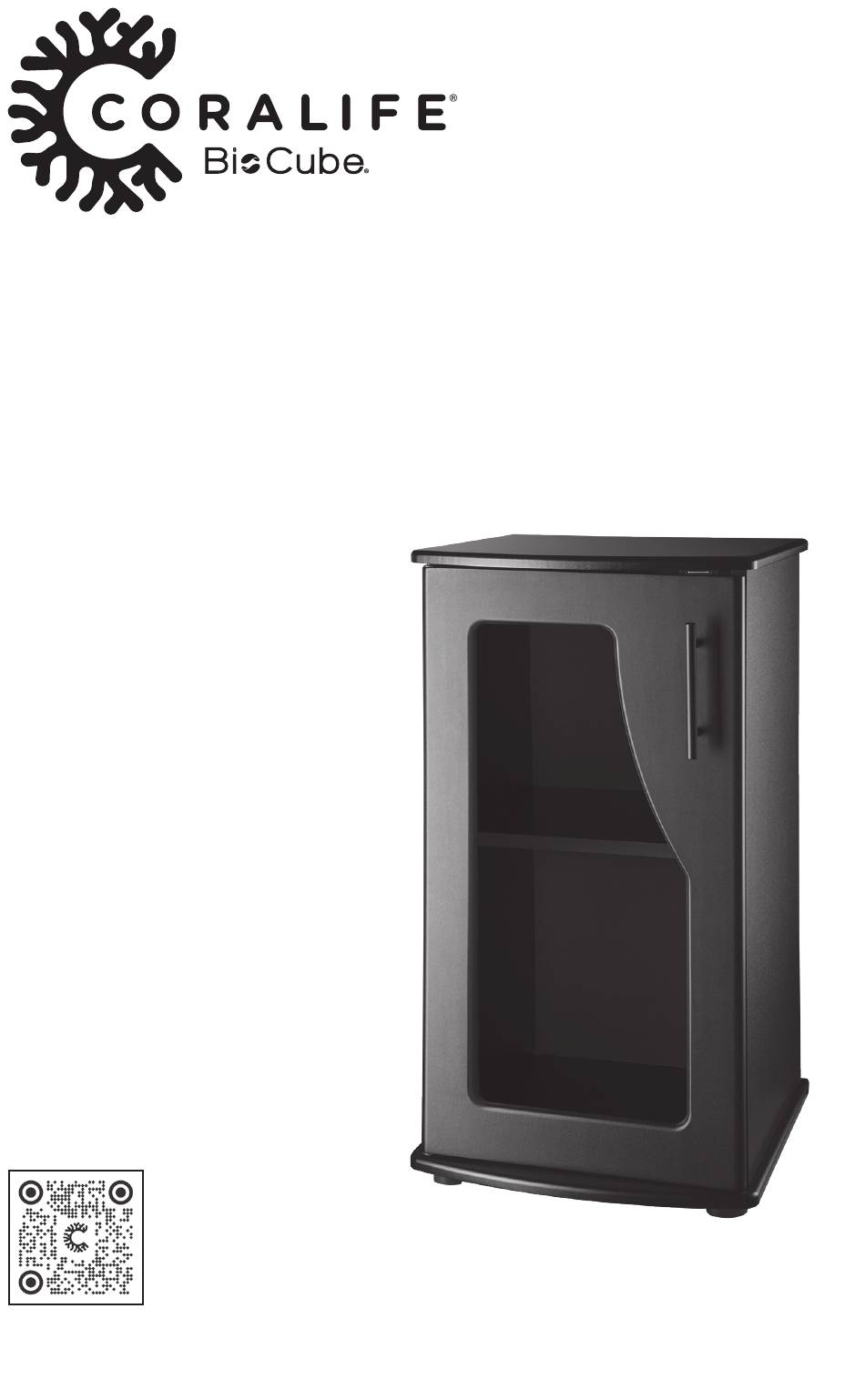

Designer Aquarium Stand
Assembly Instructions
Size 14/16
15.5" Wide x 15.75" Deep x 29" High
Item # 100531923
Easy to
assemble!
For questions or inquiries about
this product, please visit us online at
coralife.com or call 888-255-4527
Coralife and BioCube are registered trademarks
of Central Garden & Pet Company
©2023 Central Garden & Pet Company
coralife.com
Nov2023
Made in China
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Coralife BioCube 100531923
Summary of Contents for Coralife BioCube 100531923
- Page 1 Item # 100531923 Easy to assemble! For questions or inquiries about Coralife and BioCube are registered trademarks of Central Garden & Pet Company this product, please visit us online at ©2023 Central Garden & Pet Company coralife.com or call 888-255-4527 coralife.com...
-
Page 2: Parts Diagram
Parts Diagram Tools Required for Part Item Description Qty. LEFT END Assembly RIGHT END Phillips screwdriver, hammer and level. BOTTOM Parts Identification BACK DOOR While not all parts are labeled, some of ADJUSTABLE SHELF the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. - Page 3 Part # Item Description Qty. FOOT GOLD 2-1/4" FLATHEAD SCREW GOLD CAM SCREW SILVER HIDDEN CAM MAGNETIC CATCH SILVER 1/2" FLATHEAD SCREW PIVOT HINGE STRIKE PLATE HANDLE GOLD 1" MACHINE SCREW METAL PIN GOLD 1" FLATHEAD SCREW...
- Page 4 step 1 ASSEMBLY STEP 1 1. Assemble the unit on a carpeted floor or on the Rounded edge empty carton to avoid scratching the unit or the floor. 2. Using a cross head screwdriver, screw the 4 screws (12) through the FEET (1) into the holes in the BOTTOM (C).
- Page 5 STEP 3 1. Turn two GOLD CAM SCREWS (3) into the LEFT END (A 2. Push two SILVER HIDDEN CAMS (4) into the BACK (D). NOTE: The side with the SILVER HIDDEN CAMS (4) should be facing out so they are visible on the back of the stand. step 3 3.
- Page 6 STEP 4 1. Turn two GOLD CAM SCREWS (3) into the RIGHT END (A 2. Push two SILVER HIDDEN CAMS (4) into the BACK (D). NOTE: The side with the SILVER HIDDEN CAMS (4) should be facing out so they are visible on the back of the stand. step 4 3.
- Page 7 step 6 STEP 6 1. Push two SILVER HIDDEN CAMS (4) into the LEFT END (A ) and RIGHT END (A 2. Attach the TOP (B) to the ENDS ). Tighten the four SILVER HIDDEN CAMS (4). STEP 7 IMPORTANT: Only attach one PIVOT HINGE (7) to the DOOR (E) in this step.
- Page 8 STEP 8 1. Insert the remaining PIVOT HINGE (7) into the BOTTOM (C). 2. Insert the top PIVOT HINGE (7), which is attached to the DOOR (E), all the way into the hole in the TOP (B). You will need to tilt the door slightly.
