Tenveo VHD4K User Manual

4k ai ptz video conference camera

Advertisement

Quick Links

4K AI PTZ Video Conference Camera
POWER
STANDBY
V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the VHD4K and is the answer not in the manual?

Questions and answers

Summary of Contents for Tenveo VHD4K

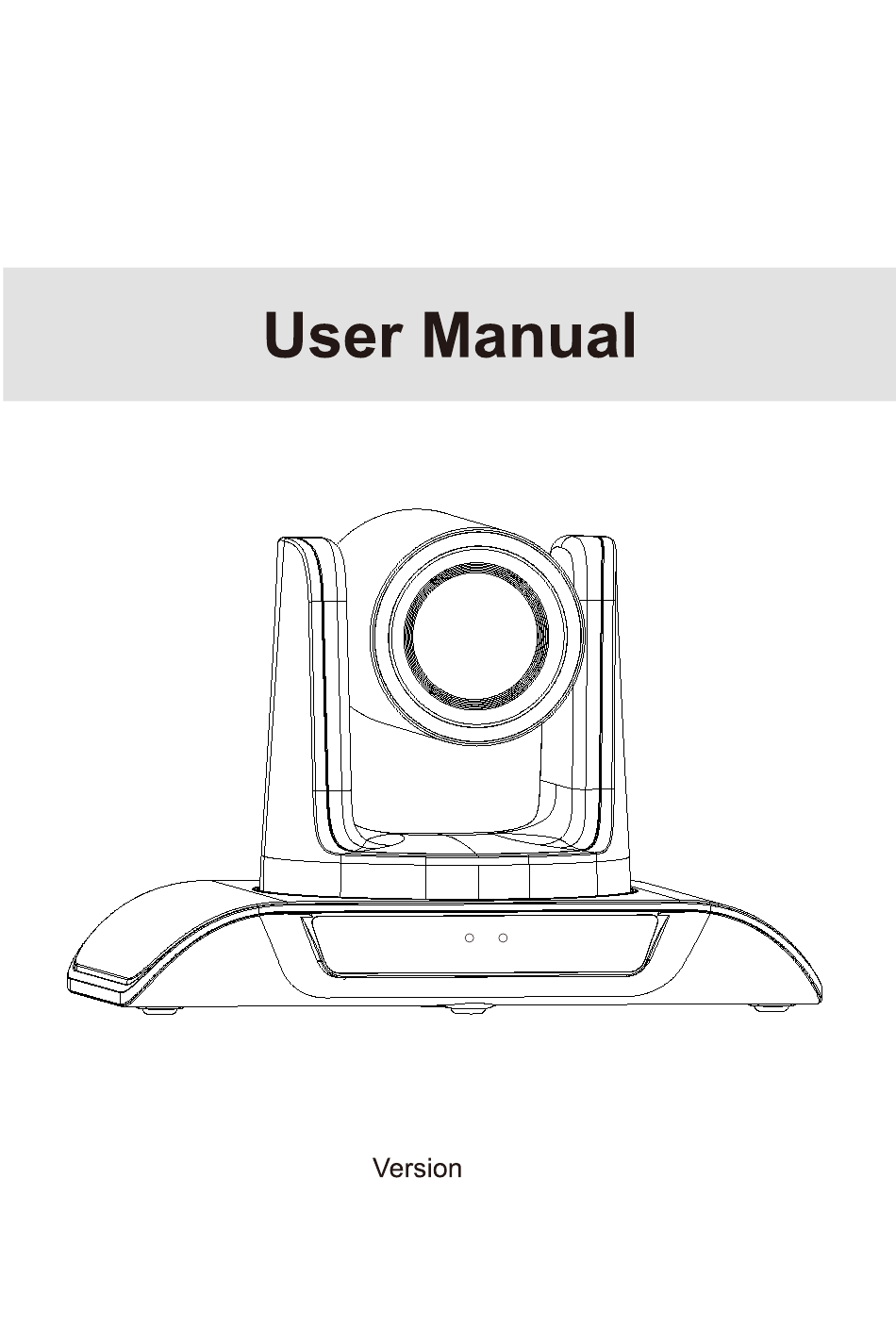

  • Page 1 4K AI PTZ Video Conference Camera POWER STANDBY V1.0...
  • Page 4 Front POWER STANDBY DC 12V RS-485 RS-232 Receiver...
  • Page 5 POWER STANDBY POWER PRESET RESET DOWN MENU POWER STANDBY ZOOM ZOOM SLOW FAST L/R SET BACKLIGHT ONWOFF PTZ RESET V1.0 AUTO NEAR MANUAL FOCUS...
  • Page 6 Model No. VHD4K 1/2.8''SONY CMOS Sensor 8.29mega pixel Effective pixels 4K@30/25fps,2K@30/25fps,1080p@30/25fps Video signals 5x digital zoom Zoom f=2.2mm Lens F1.8 Aperture 107° Horizontal Angle 71° Vertical Angle 116° Diagonal Angle USB 2.0 Video Output Network Protocol MJPEG, YUY2 Video Encoding Format...
  • Page 7 Name Function Lunch Window Remote control launch window Power Key Enter into standby mode by pressing it Camera Select Key Select the camera need to control POWER Preset position setup keys, CAMERA SELECT include【PRESET】and【RESET】 Preset Position Set the preset position Reset the preset position Turn on AI and enter Multi-human tracking;...
  • Page 8 When operating remote control, press【MENU】to enter main menu of the video camera. Main Menu AI Control Language: Support Chinese/English Click the Home button on the Remote to enter level 2 sub-menu Click the Menu button on the Remote to exit menu Mode: Auto/Manual Backlight: On/Off the backlight ExpComp: Exposure compensation, optional item is -10 to 10...
  • Page 9 1/60 Shutter: Shutter value setting, the value is between 1/120 and 1/5 Gain: Exposure Gain Setting, optional item is 1 to 100 Flicker: Auto/Off/50HZ/60HZ Brightness: Set image brightness dynamically. Default 50, optional item is 0-99 Contrast: Set image contrast dynamically. Default 50, optional item is 0-99 Hue: Set the relative brightness of the image.
  • Page 10 In manual WB mode, the above values can be adjusted. The Rgain and Bgain value can be tuned, the range is 0 to 99. When the WB mode is VAR, the sub-menu will be the following: 5500 The range for the color temp can be adjusted between 2500K to 9000K. 4K30 Normal...
  • Page 11 Flip: Off/On, Enable/disable the picture up/down Mirror: Off/On, Enable/disable the picture left/right flip Video Format: 4K30/4K25/2K30/2K25/1080P30/1080P25 720P60/720P50/720P30/720P25 Menu Mirror: Off/On, Enable/disable the menu picture left/right flip Mode: ISOC/BULK USB mode: Adjust between lsochronous transfers mode and Bulktransfers mode. Style Mode: Normal, PC, Bright 5.5 Video Format 4K supports video formats as follows: Video Format...
  • Page 12 5.8 Level 2 Menu - AI Control AI Control Gesture Control [Return] Hand Control: On/Off 5.9 Level 2 Menu - Information 4K CAMERA 2.30S_WIFI_1_ 1103 2023-11-06 16:26:10 Model: 4K Camera Version: 2.30S_WIFI_1_ 1103 Date: 2023-11-06 16:26:10 Notice: The version number here is just an example, the actual parameters shall prevail.
  • Page 13 Set the IR remote control's address to control the corresponding camera, option item 1/2/3/4 These 4 keys are not applicable for fixed focus cameras. AUTO NEAR MANUAL FOCUS...
  • Page 14 ZOOM ZOOM SLOW FAST corresponding...
  • Page 15 6.6 Camera AI Tracking by Remote Control (1) Enable/Disable AI Tracking: Press the【 AI 】button, and the " " icon will appear in the upper right corner of the screen, indicating that the AI tracking mode is activated. Press the【 AI 】button again, and the " "...
  • Page 16 Notice: (1) Gesture mode in the menu conflicts with the AI mode on the remote control. When Gesture mode is activated, the three buttons【 】,【 】 , and【 】on the remote control become inactive. (2) In Gesture mode, pressing the【AI】button on the remote control will automatically deactivate Gesture mode and activate AI mode.
  • Page 19 the camera's pan&tilt works normally.
  • Page 20 only.
  • Page 25 Connect, collaborate and create with Tenveo.
