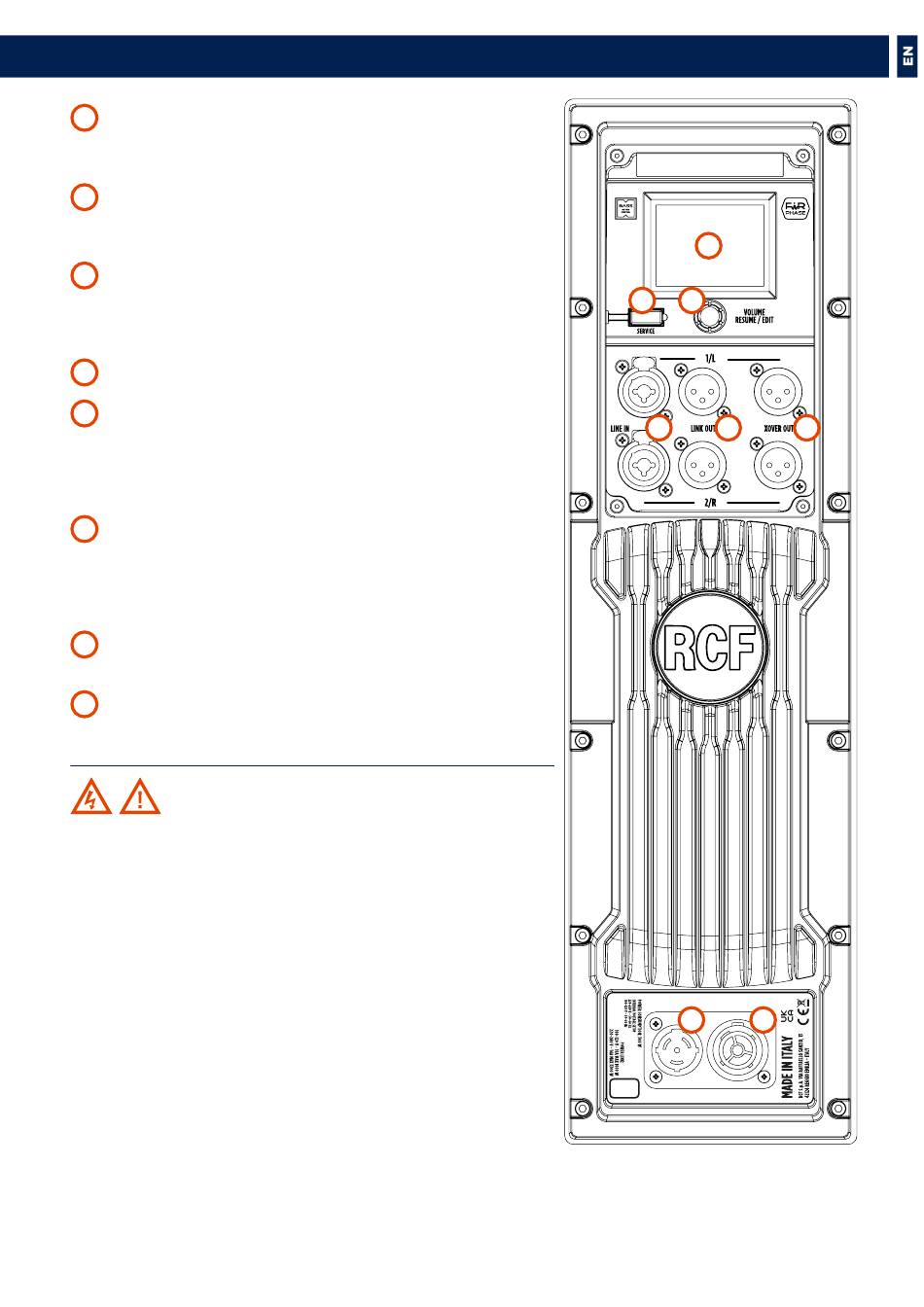

3. REAR PANEL FEATURES AND CONTROLS

1
LINE IN COMBO XLR-JACK INPUTS (BAL/UNBAL) Two COMBO connectors.
Balanced XLR or TRS JACK at line level. More details are available on SUB 15/18-AX
Reference Guide.
2
LINK OUT MALE XLR SIGNAL OUTPUT Balanced XLR male outputs. Direct
physical connection with inputs 1 and 2. This outputs allow the connection of
additional speakers by feeding them with the same signal present on inputs 1 and 2.
3 XOVER MALE XLR SIGNAL OUTPUT Balanced XLR male output. These
outputs allow feeding a pair of RCF satellite speakers by selecting the presets from
the available preset list, via the touch screen and encoder or via the RCF LiveRemote
App.
4 SERVICE Micro-USB port used exclusively for firmware updates.
5 VOLUME - RESUME / EDIT ENCODER When the touch screen is in standby
status or displays the Home page, the encoder controls the speaker volume. When in
standby, pressing the encoder reactivates the touch-screen, showing the Home page.
At this point, the encoder is assigned to the general volume and you have the option
of varying other parameters and selecting them via the touch display.
6 DISPLAY The 2.4" display with capacitive touch, combined with the encoder,
allows you to access and control all speaker functions. A parameter is selected
by touching it on the touch screen and modified by rotating the encoder. More
information is available on SUB 15/18-AX Reference Guide downloadable on the
product page on the RCF website.
7
POWERCON INPUT SOCKET PowerCON TRUE1 TOP IP-Rated mains
connection.
8 POWERCON OUTPUT SOCKET It sends the AC power to another speaker.
Power link: 100-120V~ max 1600W l 200-240V~MAX 3300W.
WARNING! CAUTION! Loudspeaker connections should be
only made by qualified and experienced personnel having the technical
know-how or enough specific instructions (to ensure that connections are
made correctly) in order to prevent any electrical danger.
To prevent any risk of electric shock, do not connect loudspeakers when the
amplifier is switched on.
Before turning the system on, check all connections and make sure there
are no accidental short circuits.
The entire sound system shall be designed and installed in compliance with
the current local laws and regulations regarding electrical systems.
