OWNER'S MANUAL
MANUALE UTENTE
S 8019
S 8029
HIGH-POWER SUBWOOFERS

Advertisement

Table of Contents
loading

Summary of Contents for RCF S 8019

  • Page 1 OWNER’S MANUAL MANUALE UTENTE S 8019 S 8029 HIGH-POWER SUBWOOFERS...
  • Page 3: Table Of Contents

    SAFETY PRECAUTIONS AND GENERAL INFORMATION ����������������������������������������������������������������������������������������������������������������� 4 DESCRIPTION ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 6 CONNECTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 ITALIANO AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI ��������������������������������������������������������������������������������������������������� 8 DESCRIZIONE ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10 COLLEGAMENTI ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 11 S 8019 DIMENSION ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 12 S 8029 DIMENSION ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 13 SPECIFICATION ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 14...
  • Page 4: Safety Precautions And General Information

    RCF S�p�A� will not assume any responsibility for the incorrect installation and / or 10. There are numerous mechanical and electrical factors to be considered when use of this product�...
  • Page 5 WARNING! CAUTION! For powered speakers, do cleaning only when the power is turned off. RCF S.p.A. reserves the right to make changes without prior notice to rectify any errors and / or omissions. Always refer to the latest version of the manual on...
  • Page 6: Description

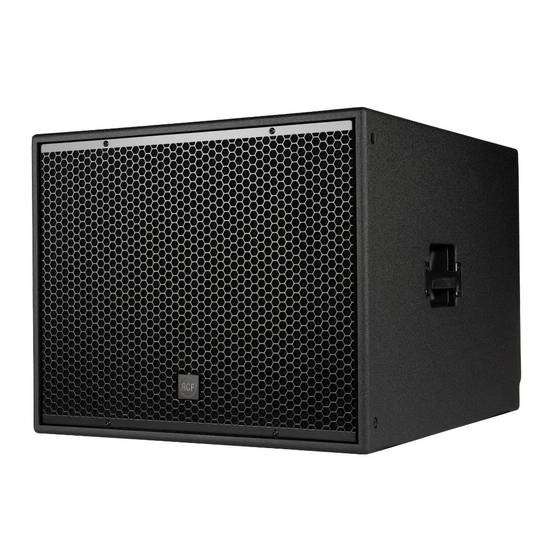

    S 8019 and S 8029 are high-power subwoofers and represent a perfect low-frequency extension for RCF installed sound systems� They feature hyper-vented, high-excursion 19” neodymium woofers (1 x 19” S 8019 and 2 x 19” S 8029) with a 4” inside/outside voice coil to minimize power compression and extend product’s life�...
  • Page 7: Connections

    The ‘LINK ONLY +’ and ‘LINK ONLY –’ pins are useful to link another subwoofer in parallel� The impedance of the subwoofers is 8 Ω (S 8019) and 4 Ω (S 8029)� WARNING! CAUTION! Loudspeaker connections should be only made by qualified and experienced personnel having the technical know-how or enough specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger.
  • Page 8: Avvertenze Per La Sicurezza E Informazioni Generali

    è ancorato il prodotto (parete, soffitto, struttura, ecc�) a dei componenti utilizzati Informazioni utili e rilevanti sull’argomento NOTE IMPORTANTI per il fissaggio (tasselli, viti, staffe non fornite da RCF ecc�) che devono garantire sicurezza del sistema / installazione nel tempo, anche considerando, ad esempio, le Informazioni riguardanti l’utilizzo di vibrazioni meccaniche normalmente generate dai trasduttori�...
  • Page 9 ATTENZIONE! CAUTELA! Per gli altoparlanti alimentati, eseguire la pulizia solo quando l’alimentazione è spenta. RCF S.p.A. si riserva il diritto di apportare modifiche senza preavviso per rettificare eventuali errori e/o omissioni. Fare sempre riferimento all’ultima versione del...
  • Page 10: Descrizione

    4” per ridurre al minimo la compressione della potenza e prolungare la vita del prodotto� La configurazione bass- reflex assicura una risposta in frequenza efficiente fino a 30 Hz per S 8019 e 25 Hz per S 8029� Il cabinet in multistrato di alta qualità è rifinito con una verniciatura in poliurea nera, e protetto frontalmente da una robusta griglia metallica verniciata a polvere�...
  • Page 11: Collegamenti

    I contatti “LINK ONLY +” e “LINK ONLY –” sono utilizzabili per un eventuale collegamento (in parallelo) di un altro subwoofer� L’impedenza dei subwoofer è 8 Ω (S 8019) e 4 Ω (S 8029)� ATTENZIONE! CAUTELA! Per il collegamento del diffusore si raccomanda di rivolgersi a personale qualificato ed addestrato, ossia personale avente conoscenze tecniche o esperienza o istruzioni specifiche sufficienti per permettergli di realizzare correttamente le connessioni e prevenire i pericoli dell’elettricità.
  • Page 12: S 8019 Dimension

    S 8019 DIMENSIONS / DIMENSIONI...
  • Page 13: S 8029 Dimension

    S 8029 DIMENSIONS / DIMENSIONI...
  • Page 14: Specification

    SPECIFICATIONS / DATI TECNICI S 8019 S 8029 Acoustical specifications Frequency Response (-10dB): 30 Hz ÷ 200 Hz 25 Hz ÷ 200 Hz Max SPL @ 1m: 139 dB 143 dB Power section Amplification: Full Range Full Range Nominal Impedance:...
  • Page 16 RCF S.p.A. Via Raffaello Sanzio, 13 - 42124 Reggio Emilia - Italy 10307790 RevB Tel +39 0522 274 411 - Fax +39 0522 232 428 - e-mail: info@rcf�it - www.rcf.it...
