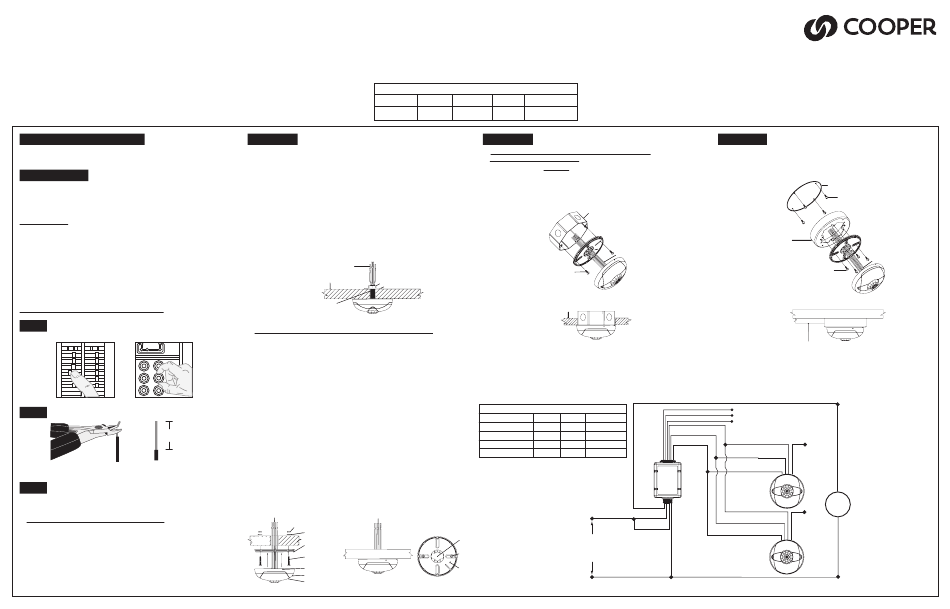

Cooper OSC-P-1500 Installation Instructions

WARNINGS AND CAUTIONS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Sensors must be mounted on a vibration free surface.
• All sensors must be mounted at least 6 feet away from air vents.
• Do not touch the surface of the lens. Clean outer surface with a damp cloth only.
Tools needed to install your Sensor
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil Cutters
Parts Included List
Sensor (1) Threaded Rod (1) and Hex Nut (1)
#8-32 x 1/2" Screw (2) Half Mask (1)
#8-32 x 1-1/2" Screw (2) 360° Perforated Mask (1)
#8-32 Washer and Nut (2) Plastic Washer (1)
DESCRIPTION
The Occupancy Sensor is a low-voltage infrared sensor that works with a 24VDC
power pack to automatically control lighting. The sensor turns the lights on and keeps
them on whenever occupancy is detected and will turn them off after the 'delayed-off
time' has expired.
The sensor continually analyzes and adjusts to changing conditions. The sensor uses
the latest microprocessor-based technology which permits it to continually adjust and
optimize its performance.
Infrared motion detection gives higher false triggering immunity that yields a sensor
with excellent performance.
INSTALLING YOUR OCCUPANCY SENSOR
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF
Step 1
POWER at circuit breaker or fuse and test that power is off before wiring!
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Preparing and connecting wires:
Step 2
Strip Gage
1/2"
(measure bare
(1.3 cm)
wire here)
Cut
(if necessary)
Typical Installations:
Step 3
Listed are 3 typical installation options (A, B, and C). Choose one that
best suits your needs. Other methods of installation may be possible but
they have not been described here.
A. Drop Ceiling Installation (Mounting Option A):
NOTE: Use the threaded rod included.
1. Select location for mounting of sensor and proper masking for your application
(refer to Mounting Location Diagram).
2. Use the supplied threaded rod or other methods to make a hole (1/2" to 1") in the ceiling
tile just large enough to pass the body of the threaded rod through.
3. Insert the sensor wires through the flared end of the threaded rod. Position the threaded
rod to the base of the sensor.
4. Insert the flared end of the threaded rod into the opening in the bottom of the sensor
and twist to lock into place.
Infrared Ceiling Mounted Occupancy Sensor
Cat. Nos. OSC-P-1500 and BAA-OSC-P-1500
To be used with 24VDC Power Pack Class II Low-Voltage Wiring
INSTALLATION INSTRUCTIONS
Cat. No. Description
OSC-P-1500
Extended
BAA-OSC-P-1500 Range
Step 3 cont'd
5. Push the wires into the hole in the ceiling tile and insert the threaded rod until the
sensor is flush with the tile.
6. Insert wires through the hole in the included washer, then place the included washer
over the rod and screw on the included hex nut.
7. Class II Wiring: Connect low-Voltage wires from Power Pack to Sensor per WIRING
DIAGRAM as follows: Twist strands of each lead tightly and, with circuit conductors,
push firmly into appropriate wire connector. Screw connectors on clockwise making
sure that no bare conductor shows below the wire connectors. Secure each connector
with electrical tape.
8. Rotate the sensor to the desired orientation. Note that the sensor base and back cover
are keyed. To lock the device in place, ensure that the arrows are not aligned.
9. Restore power at circuit breaker or fuse to Power Pack.
INSTALLATION IS COMPLETE.
Mounting Option Diagram A
Occupancy Sensor Mounting to Drop Ceiling Using Threaded Rod
Low-Voltage Wires
Drop Ceiling
1" thick maximum
Nut
Washer
Threaded Rod
NOTE: Wires threaded through
the Threaded Rod
B. Wallboard or Drop Ceiling Installation (Mounting Option B):
NOTE: You may use the mounting screws, nuts and washers included, or screws in
combination with commercially available wall anchors.
1. Select location for mounting of sensor and proper masking for your application
(refer to Mounting Location Diagram).
2. Make a hole in the ceiling tile or wallboard large enough to pass the wire connections
and wire nuts through (approximately 1" diameter).
3. Remove the back cover of the sensor. Hold the back cover and body of the sensor and
rotate until the two arrows line up and pull apart.
4. Install back cover of the ceiling sensor to the wallboard or drop ceiling using the
included screws, nuts and washers, or screws in combination with commercially
available wall anchors.
5. Class II Wiring: Connect low-Voltage wires from Power Pack to Sensor per WIRING
DIAGRAM as follows: Twist strands of each lead tightly and, with circuit conductors,
push firmly into appropriate wire connector. Screw connectors on clockwise making
sure that no bare conductor shows below the wire connectors. Secure each connector
with electrical tape.
6. Push wire connections through the center hole of the back cover and into the ceiling.
7. Secure the sensor body to the back cover by aligning the arrows. Lock it by turning the
sensor such that the arrows do not line up.
8. Rotate the sensor to the desired orientation.
9. Restore power at circuit breaker or fuse to Power Pack.
INSTALLATION IS COMPLETE.
Mounting Option Diagram B
Occupancy Sensor Mounted to Wallboard or Drop Ceiling Using Screws
Low-Voltage Wires Low-Voltage Wires
Nut (2 places)
Washer (2 places)
Wallboard
Sensor Back
Ceiling
Cover
Mounting
Wallboard Ceiling
Screws
(2 places)
Keylock Arrow
Sensor Base
Back Cover shown mounted
Sensor Front Cover
on ceiling with screws
CATALOG ITEMS
Current Suggested
Consumption Coverage Mounting Location
Mount in center of
20mA 1500 sq. ft.
room/area
Step 3 cont'd
C. Junction Box or Surface Mount Raceway Installation
(refer to Mounting Diagrams):
NOTE: Listed below are suggested JUNCTION BOX installation applications which
require mounting to conduit in one of the following three ways:
Occupancy Sensor Mounted to Octagon
Box Installed Flush to Wallboard Ceiling
Octagon Box
4" x 1-1/2" deep
Low-Voltage
Wires
#8-32 Screws
(2 places)
Wallboard or
Drop Ceiling
Wiring Diagram: Multiple Sensor, Single Power Pack
SP20-RD4-R or BAA-SP20-RD4-R Series
TABLE 2: WIRE DESIGNATIONS
Name Color Gage Temp/Voltage
Power (+24 V) Red 24 200° C/ 600V
DC Return Black 24 200° C/ 600V
Occupancy Blue 24 200° C/ 600V
Occupancy/Photocell Gray 24 200° C/ 600V
Hot (Black)
Back Cover open center to
route Low-Voltage Wires Line
120/277/347 VAC
Mounting Screw 60Hz
Back Cover internal
surface shown
Neutral (White)
Step 3 cont'd
Occupancy Sensor Mounted to Round Fixture
with Raceway for Wallboard installation
Wire Mold Round Fixture
Box (for raceway mount)
Mounting Screws
(4 places)
Wallboard Ceiling
Wire Mold Raceway
(use applicable fittings)
Power Pack
Sensor
NC - Brown To HVAC
System
Common-Green
NO-Brown/White
Red (24VCD)
Black
*
Gray
Red
Blue
(Control)
Black
Blue
Blue
Red
Blue
*
Gray
Black
Black
Blue
White
Lighting Solutions
PK-A3440-10-00-2A
Wire Mold Back Cover
Back Cover Screws
(4 places)
Low-Voltage Wires
*NOTE: When using
the Photocell function,
connect the Gray wire of
the Sensor to the Blue
wire of the Power Pack.
DO NOT use the Blue wire
of the Sensor.
Black
NOTE: Ensure to cap wire
that is not being used.
Load
White
