Description
The 916 Quad PIR is an indoor motion detector designed for
use in wired intruder alarm systems. White-light filters
minimise false alarms caused by intense white light (for
example car headlamps or direct sunlight). A fully sealed
pyro-chamber gives full protection against draughts and
insects. Interchangeable lenses make the 916 a highly
versatile detector.
The 916 also provides:
• Temperature Compensation
• Creep Zone
Specification
Voltage:
8 to 18VDC
Current:
5mA nominal (12mA walk test LED on),
25mA max.
Low voltage alarm:
7V nominal
Operating temp:
-10 to +55 deg.C
Alarm period:
2 seconds
Control input:
12V
Lens:
Standard 15m x 90 deg.
Additional Lens Kit - Part No. 301
Lens adjustment:
10 degrees vertical
White light filter:
greater than 2000 Lux
RF Immunity:
20V/m
Specification subject to change without notice.
Manufactured in the UK by Scantronic Ltd.
Product Support (UK) - Tel: (0891) 616343 between 09:00 and 17:30,
Monday to Friday. (Calls charged at 50p per minute.) Product Support FAX
No. (01594) 544136
Pt. No. 496445 Issue b

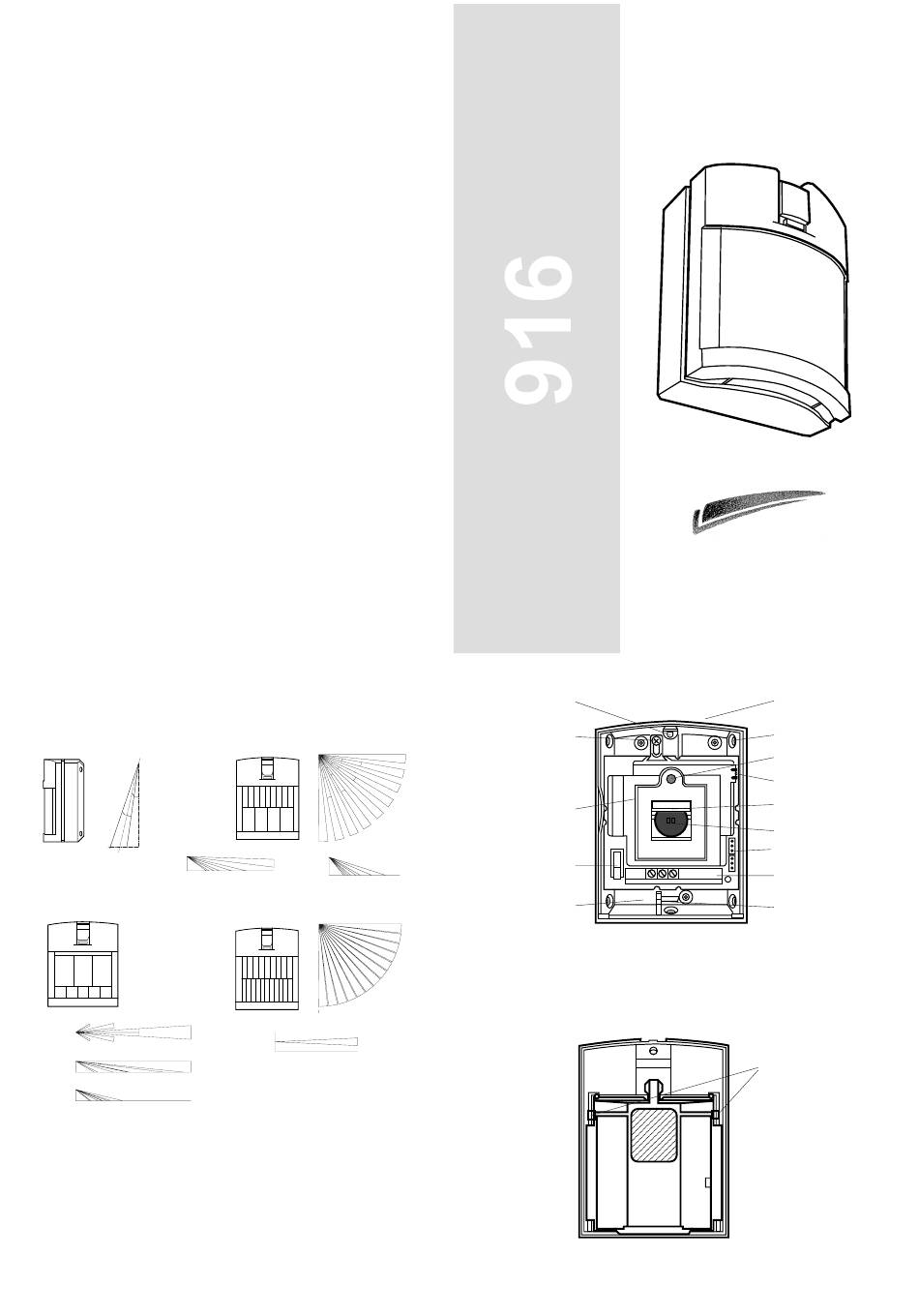

Lens Options
Creep Zone
Wide Angle (standard)
12°
10°
2.4m
(max)
Range at 0°
Corridor
25m
2.4m
(max)
25m
Range at 0°
2.4m
25m
(max)
Range at 10°
Opening the Detector
1. Open screw covering, then loosen cover retaining screw
and release clip to remove cover.
The diagram shows the inside of the detector.
2. Remove the pcb range adjustment screw and remove pcb
assembly.
15m
2.4m
(max)
6m
15m
Range at 10°
Curtain Horizontal
15m
1.5m
15m
Range at 4°
Lens Kit Part No.301
Main Cover Screw Boss
PCB Range adjustment screw
Insect proof gasket
Tamper switch
Lower rear cable entry
knockout
Removing Lens Assembly (Optional)
1. Press lens clamping clips to remove lens retaining frame
and remove lens.
2. Replace with new lens (observe orientation)
Quad Passive
Infra Red
Detector
Scantronic
Leading the way in security
Installation Guide
Top Cable Entry Knockout
Mounting Screw Knockout
Alarm LED
Range Scale
Look Down Mirror/Pet Alley
Pyro
Walk and Control jumpers
Terminals
Cable Restraint Tie Wrap
knockout
Push open clips to release
lens retaining funnel.
