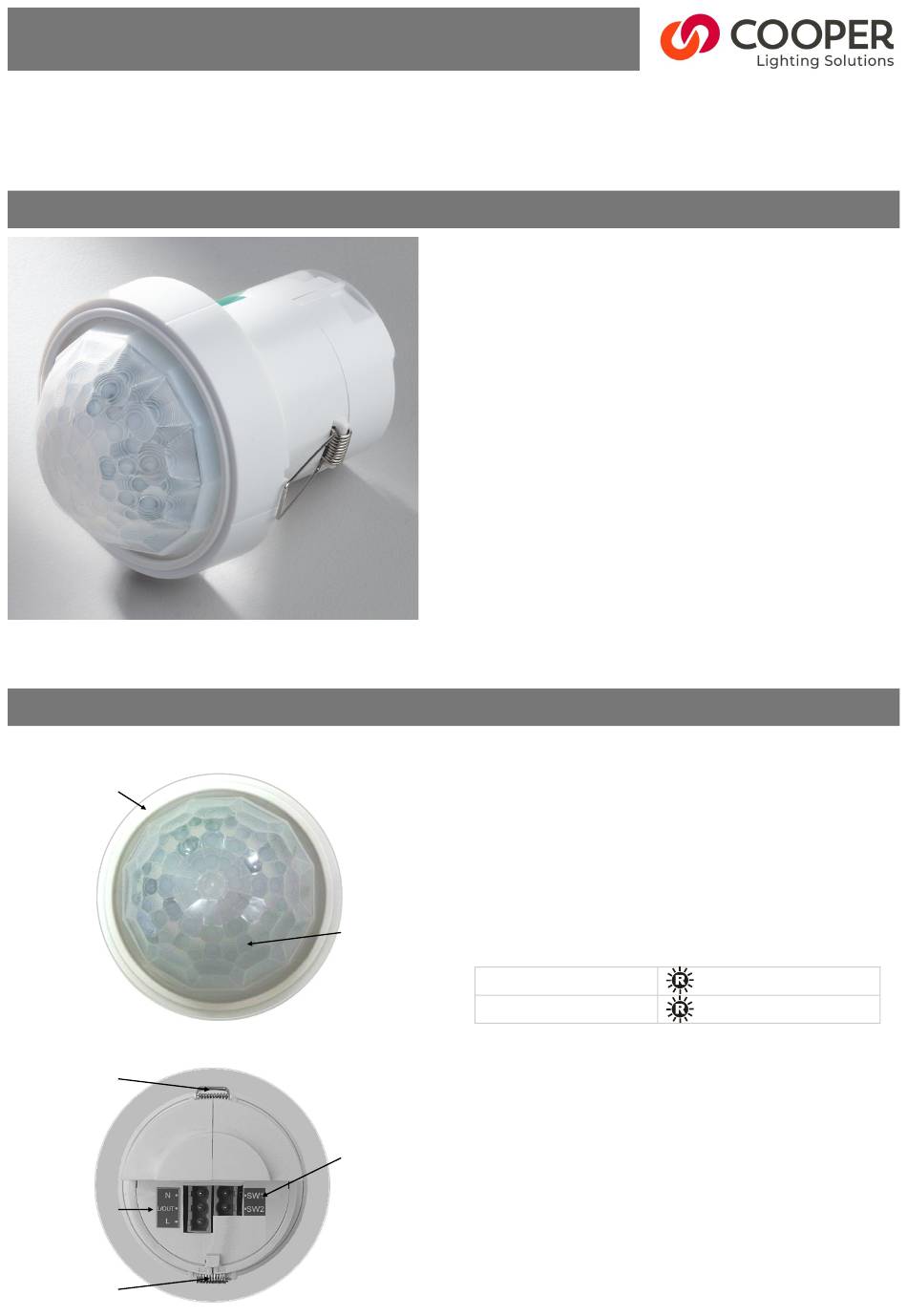

Cooper PPAD-C-HB-230V Product Manual

PPAD-C-HB-230V
Ceiling PIR HS presence detector
Front features
Mounting Bezel
Back features
Retaining Spring
Power Input
& Switched
Output Connector
Retaining Spring
Product Guide
The PPAD-C-HB-230V PIR (passive infrared) presence
detector provides automatic control of lighting loads with
optional manual control. The PPAD-C-HB-230V is a high
sensitivity PIR detector suitable for high bay applications,
such as warehouses and factories, and where high
detection sensitivity is needed
The output channel comprises a mains voltage relay
capable of simple on/off switching.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
The LED flashes Red to indicate the following:
which covers...
PIR Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Switched Output Connector
Used to connect mains power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or off.
Switch Input
Connector
Overview
Features
when movement is detected
