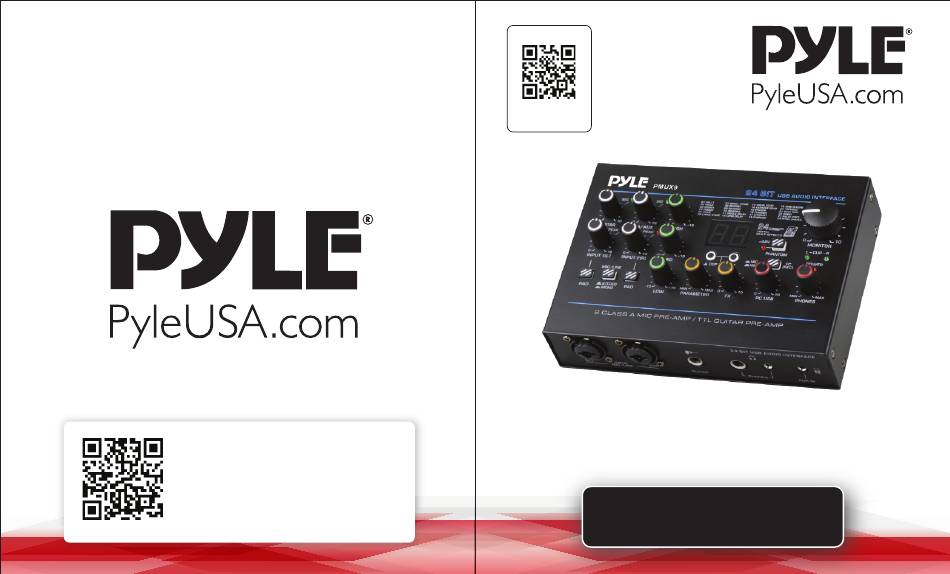

- Page 1 Visit Our Website SCAN ME PyleUSA.com PMUX9 Questions or Comments? Professional USB Audio Interface We are here to help! USER GUIDE Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
- Page 2 READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FCC INFORMATION RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE. WARNING: Changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Features: •...
- Page 3 Attention: CONNECTION DIAGRAM To avoid possible malfunction, damage to the product, data loss, or harm to other property, please follow these guidelines: Speakers Speakers OPERATION • Do not use the device near TVs, radios, stereo equipment, mobile phones, or Stereo Transfer other electronic devices to prevent noise interference.
- Page 4 CONTROLS AND FUNCTIONS CONTROLS AND FUNCTIONS 1. [MIC/LINE] Input jack: Connect a microphone or musical instrument. Supports both XLR and unbalanced 1/4" plugs. 2. [GUITAR] Input jack: Connect an instrument such as an electric guitar or bass. 3. [AUX IN] 3.5mm auxiliary input jack: Provides exible connectivity for various external devices.
- Page 5 15. [MIC/LINE] Converting Switch: 25. [MONITOR] Controller: Adjusts the volume of the MONITOR output. a. In the up position, it supports stereo input: MIC/LINE inputs 1(L) and 2(R) 26. [CLIP L & R] LED: Lights up when the MONITOR output signal is too high. form a stereo signal.
