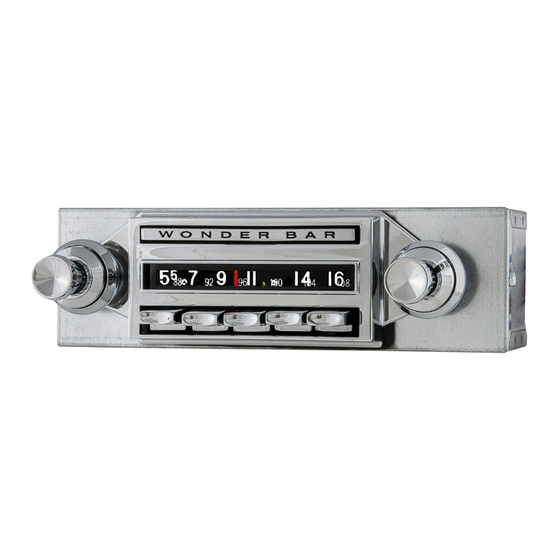

Antique Automobile Radio 452201B Installation And Operating Instructions

1961-1962 corvette wonderbar am/fm stereo radio

Download this manual

Release Date

January 2014

1961-1962 CORVETTE WONDERBAR

Add

our

Bluetooth®

incoming calls and place outgoing calls with compatible

phones — all without having to fumble around for your cell

phone. You can also stream music from any compatible

phone or tablet — use the dedicated keys to skip or replay

tunes. Built in USB 2.1 Amp charger. NFC simple pairing

function.

ANTIQUE AUTOMOBILE RADIO, INC.

700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733

AM/FM STEREO RADIO

RADIO INSTALLATION

OPERATING INSTRUCTIONS

Model 452201B

adapter

kit

For HELP, Questions or Comments email:

support@radiosforoldcars.com

AND

AM/FM9.2

option!

Answer

Need help?

Do you have a question about the 452201B and is the answer not in the manual?

Page 1 — use the dedicated keys to skip or replay tunes. Built in USB 2.1 Amp charger. NFC simple pairing function. ANTIQUE AUTOMOBILE RADIO, INC. 700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733 For HELP, Questions or Comments email:...
Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed for a long trouble free life and quality sound. Our objective is to preserve the original fit, functions and appearance of your radio while providing superior sound using the best of the latest digital technology.
Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See inset below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
Page 4 INSTALLATION If you intend to use our Bluetooth® adapter kit install the extension cable provided with the kit. Refer to the Bluetooth® instructions Mount the radio in the dash using the two 1/2” shaft nuts. Take care not to cross-thread or over-tighten them. Finger tight plus ½ turn is enough.
