Antique Automobile Radio 402201B Installation And Operating Instructions

1959-1960 corvette wonderbar am/fm stereo radio

Release Date

January 2014

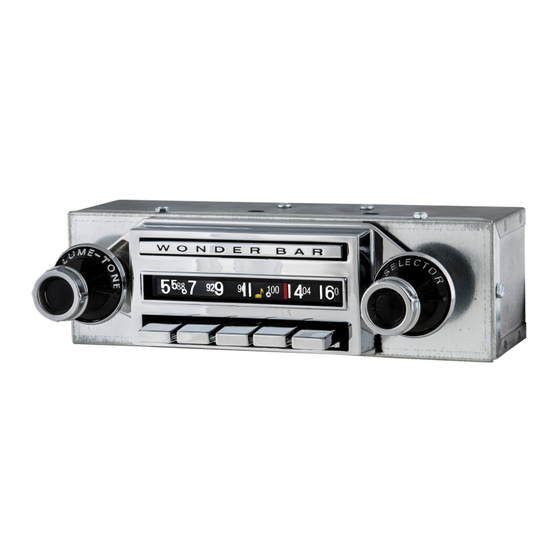

1959-1960 CORVETTE WONDERBAR

Add

our

Bluetooth®

incoming calls and place outgoing calls with compatible

phones — all without having to fumble around for your cell

phone. You can also stream music from any compatible

phone or tablet — use the dedicated keys to skip or replay

tunes. Built in USB 2.1 Amp charger. NFC simple pairing

function.

ANTIQUE AUTOMOBILE RADIO, INC.

700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733

AM/FM STEREO RADIO

RADIO INSTALLATION

OPERATING INSTRUCTIONS

Model 402201B

adapter

kit

For HELP, Questions or Comments email:

support@radiosforoldcars.com

AND

AM/FM9.2

option!

Answer

Table of Contents

Need help?

Do you have a question about the 402201B and is the answer not in the manual?

Page 1 — use the dedicated keys to skip or replay tunes. Built in USB 2.1 Amp charger. NFC simple pairing function. ANTIQUE AUTOMOBILE RADIO, INC. 700 TAMPA RD. Palm Harbor, FL 34683 USA (727) 785-8733 For HELP, Questions or Comments email:...
Page 2 CONGRATULATIONS! You have one of the most unique and sophisticated radios ever built! It is designed for a long trouble free life and quality sound. Our objective is to preserve the original fit, functions and appearance of your radio while providing superior sound using the best of the latest digital technology.
Page 3 Your radio has a 12 pin connector for the speakers, power, and options. See inset below for more details. There is one red (fused) wire. This is the main power input. It should be connected to the 12 volt Accessory circuit. There is a green wire that is used for the dial light.
Page 4 DIAGNOSTICS No Sound: Check for a good fuse with proper rating. When the radio is turned on, the orange wire should have 12 volts present. Radio will mute when no station is received. Make sure antenna is plugged into the proper jack. If an option is plugged in, make sure it’s not on.
