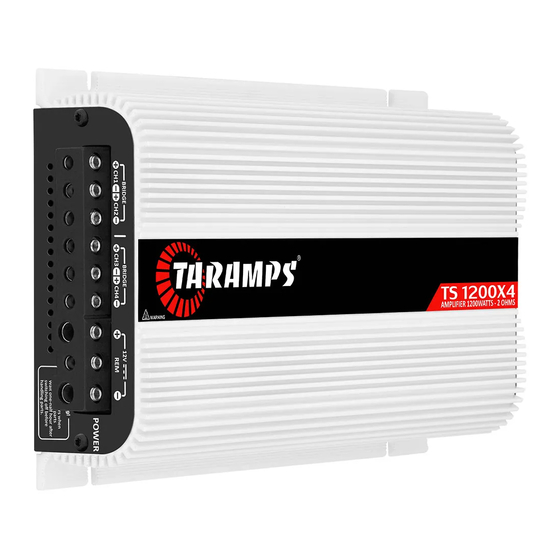

- Page 1 AMPLIFIER - 1200WATTS - 2 OHMS 4 x 300W RMS The installation of this product must be made by a qualified professional.
-
Page 2: Term Of Warranty
12 months from the date of purchase. In case of defect during the warranty period, TARAMPS responsibility is limited to the repairing or replacement of the device of its own making. -
Page 3: Safety Requirements
CAUTION injury to user or product damage. Taramps reserves the right to modify the contents of this document at any time without prior notice and does not have the obligation to apply the changes in units which were previously produced. - Page 4 Functions & inputs + - - + + - - + MIN MAX HIGH INPUT MIN MAX AUTO REMOTE 1 - INPUT: Inputs of signals to be amplified. Connect these signals to RCA outputs of Head Unit, using good quality shielded cables to avoid noise interference. 2 - GAIN: It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels of nearly all models of Head Units found in the market.
-
Page 5: Protection System
Output & power supply connector BRIDGE BRIDGE POWER Hot parts! Burned fingers when handling the parts Wait one-half hour a er switching off before handling parts. 1 - OUTPUT: To connect the speakers. Follow the polarity and the minimum impedance recommended. -
Page 6: Installation
65°C. So, avoid contact with this surface when the amplifier is in use. Connection example in the output: Stereo + Bridged *Illustrative images RCA Cable Taramps RCA output High level output RCA Cable Taramps Head Unit... -
Page 7: Technical Features
**Frequency response measured at 2 times the minimum impedance, in 4 channel mode. The values as above are typical and may vary, due to electronic components tolerance or manufacturing process. For further informations or questions, visit our website or contact TARAMPS support. - Page 8 Manufactured by: TARAMPS ELECTRONICS LTDA TAX ID: 11.273.485/0001-03 Street: João Silvério, 121 • Res. Manoel Martins Alfredo Marcondes - SP Made in Brazil...
