Summary of Contents for Afore AF5000W-LE

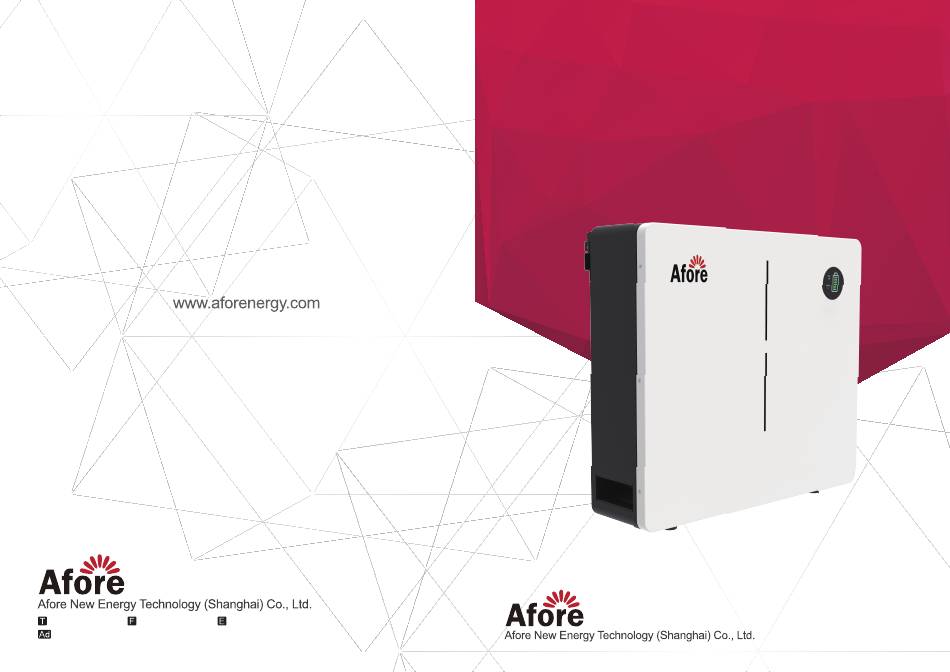

- Page 1 Wall Mounted Energy Storage Battery Installation and Operation Manual +86-21-54326236 +86-21-54326136 info@aforenergy.com Building 7, No.333 Wanfang Rd, Minhang District, Shanghai, China. 201112...
-
Page 2: Table Of Contents
AF5000W-LF Operation Manual CONTENTS 1 Technical Data 2 Product Overview Brief Introduction Interface Introduction 2.2.1 Switch ON/OFF 2.2.2 LED Indicator Definition 2.2.3 CAN / RS485 Port 2.2.4 RS232 Port 3 Installation Guide Checking Before Installation 3.1.1 Checking Outer Packing Materials 3.1.2 Checking Deliverables Tools... -
Page 3: Technical Data
Performance Nominal Voltage 51.2 Vdc Nominal Capacity 100Ah TECHNICAL DATA Battery Energy 5120 Wh Charge Voltage 56.16Vdc Discharge Voltage 44.8Vdc Nominal Charge/Discharge Current NOTE Nominal Charge/Discharge Power 2560W Operating current derating according to Max Charge / Discharge Current 100A cell voltage and battery temperature. Max Charge / Discharge Power 5120W Short Circuit Current... -
Page 4: Product Overview
2.2 Interface Introduction PRODUCT OVERVIEW 2.1 Brief Introduction PRODUCT OVERVIEW AF5000W-LF is a lithium battery with an operating voltage range between 45.6~56.16V. It is designed for residential energy storage applications and works together with a 48v battery hybrid inverter. AF5000W-LF is not suitable for 2.2.1 Switch ON/OFF supporting life-sustaining medical devices. - Page 5 Press the Circular weak current switch of the master pack for more than 3 seconds and then release the button. When all slave pack are closed, the master pack will be closed (sleep mode). For a single AF5000W-LF, turn off the Circular weak current switch.
- Page 6 Quantit Quantit Battery box Wall mounting bracket Ground screw Hanging bracket Bottom support bracket Desiccant User manual Outgoing Inspection Report Connet cable...
-
Page 7: Tools
3.2 Tools 3.4 Installation Instructions 3.4.1 Dimensions Model Tools Knife Measuring tape Socket wrench （10/16mm） Installation Rubber mallet Cross Screwdriver Hammer drill（10mm） ESD gloves Safety goggles Anti-dust respirator Protection Safety shoes 141.5 Minimum mounting distance between battery pack and equipment: 3.3 Installation requirements 150mm 150mm... -
Page 8: Installation Procedure
STEP 3 3.4.2 Installation Procedure Hang AF5000W-LF on the wall bracket and tighten it STEP 1 Drill the hole with an 10mm drill bit as follows and fix the wall bracket to the wall. Fastening Screw (M4*20) STEP 2 STEP 4 Install the hanging bracket. - Page 9 STEP 5 STEP 7 When multiple batteries are connected in parallel, follow the following wiring mode. Connect power cable. MASTER SLAVE to Inverter CAN port to Inverter to Inverter to Inverter to Inverter to Inverter to Inverter to Inverter CAN port STEP 6 Link in CAN Link in CAN...
- Page 10 to Inverter to Inverter...
