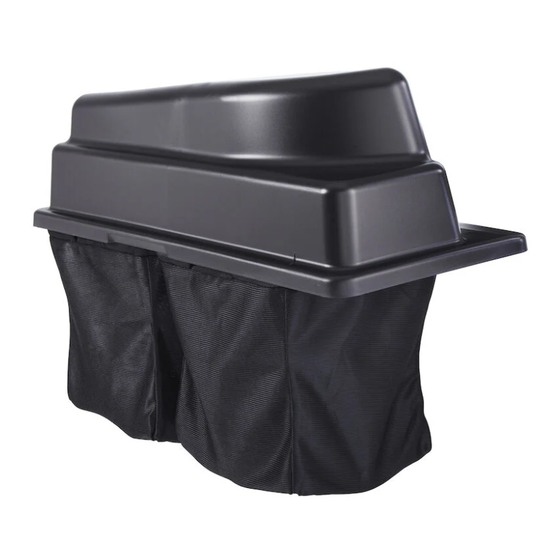

32in, 34in, 42in, 50in, and 54in Bagger
Zero-Turn-Radius Riding Mower
Model No. 79390—Serial No. 415270000 and Up
Model No. 79391—Serial No. 415270000 and Up
Model No. 79392—Serial No. 415248329 and Up
Model No. 79393—Serial No. 415270000 and Up

Introduction

Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
Whenever you need service, genuine parts, or
additional information, contact an Authorized Service
Dealer or Customer Service and have the model
and serial numbers of your product ready.
identifies the location of the model and serial numbers
on the product. Write the numbers in the space
provided.
1. Model and serial number location
Model No.
Serial No.
This manual uses 2 words to highlight information.
Important calls attention to special mechanical
information and Note emphasizes general information
worthy of special attention.
The safety-alert symbol
this manual and on the machine to identify important
Original Instructions (EN)
Figure 1
Figure 1
(Figure
2) appears both in
safety messages that you must follow to avoid
accidents. This symbol will appear with the word
Danger, Warning, or Caution.
Danger indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
Warning indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
Caution indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
1. Safety-alert symbol
g005673
Form No. 3464-889 Rev A
Operator's Manual
Figure 2
*3464-889*
Printed in the USA
All Rights Reserved
sa-black

Advertisement

Table of Contents
loading

Summary of Contents for Toro 79391

  • Page 1: Introduction

    32in, 34in, 42in, 50in, and 54in Bagger Zero-Turn-Radius Riding Mower Model No. 79390—Serial No. 415270000 and Up Model No. 79391—Serial No. 415270000 and Up Model No. 79392—Serial No. 415248329 and Up Model No. 79393—Serial No. 415270000 and Up Operator's Manual...
  • Page 2: Table Of Contents

    Safety WARNING CALIFORNIA DANGER Proposition 65 Warning Use of this product may cause exposure Engines can become hot when they are to chemicals known to the State of operating. Severe burns can occur from California to cause cancer, birth defects, contacting hot surfaces.
  • Page 3: Towing Safety

    • Stop on level ground, disengage drives, chock or block wheels, shut off engine before leaving the operator's position for any reason including emptying the grass catcher or unclogging the chute. • If you remove the grass catcher, be sure to install any discharge deflector or guard that might have been removed to install the grass catcher.
  • Page 4: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal109-6809 109-6809 1. Crushing hazard of hand—do not remove the whole bagger from the machine; open the bagger top and then remove the bag(s) from the bagger.
  • Page 5: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Prepare the machine. Bolt (3/8 x 1-1/4 inches) Locknut (3/8 inch) Weight mounting bracket, left Weight mounting bracket, right Washers Install the weight.
  • Page 6: Procedure Description Qty

    Procedure Description Qty. Discharge tube Connect with the discharge tube. Deck ring Bolt (5/16 x 3/4 inch) Install the deck ring (Model 79390 only) Locknut (5/16 inch) Hi-Lift blade Install the blade (Model 79390 only)
  • Page 7: Preparing The Machine

    Locate the front bolts on the underside of the frame (Figure 3 Figure Remove the 2 bolts (3/8 x 1 inch) and 2 locknuts (3/8 inch). Retain the locknuts. Preparing the Machine No Parts Required Procedure Park the machine on a level surface. Engage the parking brake.
  • Page 8 g354523 g354522 Figure 5 Figure 6 1. Locknut (3/8 inch), existing 5. Hole, existing in frame 1. Front right caster (castor 5. Bolt (3/8 x 1-1/4 inches) 2. Forward hole, left side 6. Washer fork and wheel not shown for clarity) 3.
  • Page 9: Keyed Cross Bar

    Install a flat weight to the weight bracket and move it rearward, flush with the bracket (Figure g354524 Figure 7 1. Front right caster (castor 5. Bolt (3/8 x 1-1/4 inches) fork and wheel not shown for clarity) 2. Front hole, right side 6.
  • Page 10: Installing The Attachment Mount

    Install the pivot frame to the machine frame as shown in Figure 11. Secure the pivot frame to the machine frame using 2 bolts (5/16 x 1 inch) and 2 locknuts (5/16 inch). Installing the Attachment Mount Parts needed for this procedure: Stabilizer bracket (For 2015 and newer Models) Carriage bolt (5/16 x 3/4 inch) Locknut (5/16 inch)
  • Page 11 For 2011 through 2014 Models Only Note: The stabilizer bracket is not used on 2011 through 2014 models. Note: For 2011 through 2014 models, the rear-engine guard is optional for this bagger. Install the pivot frame to the machine frame as shown in Figure 15.
  • Page 12: 1. Draw Bar Decal

    g030499 Figure 18 Left side shown 1. Pivot-frame hole 4. Support rod 2. Washer 5. Keyed slot (existing) g030497 3. Hairpin cotter 6. Bent, flared end of support Figure 16 1. Self-tapping screw (5/16 x 2. Pivot frame 3/4 inch) Insert the bent ends of the rod into the attachment mount as shown in Figure 18...
  • Page 13: Installing The Latch Rod

    Installing the Latch Rod Parts needed for this procedure: Latch rod Hairpin cotter Procedure Install the latch rod with a hairpin cotter (Figure 19). g033027 Figure 19 1. Hairpin cotter 2. Latch rod g005666 Figure 20 1. Bagger top 3. Screen tab 2.
  • Page 14: Bag Frame

    Figure 21 people work together. Install the bagger top to the bagger frame. For models 79390, 79391, and 79393 only: rotate the bagger top to align the key holes in the bagger top brackets with the keys in the posts on the bagger frame (Figure 22).
  • Page 15 g033030 Figure 25 g300208 Secure the hood with the latch (Figure 25). Figure 23 Install the upper bagger tube by inserting the 1. Bagger posts 3. Nuts (5/16 inch) curved end into the opening in the bagger top. 2. Bolts (5/16 x 1 inch) Note: Make sure that the flared end with the retention post is pointing down and forward in...
  • Page 16: Installing The Blowout Baffle (54In Mower Deck Only)

    Installing the Blowout Installing the Cutoff Baffle Baffle (54in Mower Deck (Models 79390, 79392, and Only) 79393 Only) No Parts Required Parts needed for this procedure: Cutoff baffle (Model 79390 only) Procedure Carriage bolt (5/16 x 1-3/8 inches) (Model 79393 only) Secure the blowout baffle to the mower deck using 2 Flange nut (5/16 inch) (Model 79393 only) carriage bolts and 2 locknuts.
  • Page 17 Remove the existing baffle under the right side of the mower deck. Save the baffle and hardware. g015221 Figure 28 1. Pivot rod 4. Nut (5/16 inch) 2. Bolt 5. Locknut 3. Bagger-cutoff baffle For Model 79392 Only Note: Certain models have the cutoff baffle installed. Proceed to the next procedure if a cutoff baffle is installed.
  • Page 18: Installing The Chute

    For Model 79391 Only Angle the metal tab at the front of the chute into the slot in the bracket welded to the mower deck.
  • Page 19 welded on the mower deck to the rear of the opening. Fasten the retaining hook around the pivot rod to secure the chute into position. g005670 Figure 36 g015203 1. Chute 4. Retaining hook Figure 34 2. Flexible latch 5. Pivot rod 1.
  • Page 20 g005670 Figure 39 1. Chute 3. Latch, hook 2. Deflector 4. Pivot rod Secure the chute to the 50 inch deck by hooking the flexible latch on the chute to the retaining g015203 Figure 37 clasp welded on the mower deck. 1.
  • Page 21 g017825 Figure 42 1. Chute 3. Retaining clasp (welded to mower deck) g017824 2. Flexible latch Figure 41 1. Knobs 3. Chute 2. Flat washer (5/16 inch) 4. Installed bolts Hook the flexible latch on the chute to the retaining clasp welded on the mower deck to the rear of the opening.
  • Page 22: Connecting With The Discharge Tube

    Connecting with the Installing the Deck Ring Discharge Tube (Model 79390 Only) Parts needed for this procedure: Parts needed for this procedure: Discharge tube Deck ring Bolt (5/16 x 3/4 inch) Procedure Locknut (5/16 inch) Slide the curved end of the discharge tube into Procedure the opening in the bagger top.
  • Page 23: Operation

    Operation Note: Determine the left and right sides of the machine from the normal operating position. Installing the Blade (Model WARNING 79390 Only) To avoid personal injury, follow these procedures: Parts needed for this procedure: • Become familiar with all operating and safety instructions in the Operator's Hi-Lift blade Manual for the mower before using this...
  • Page 24: Clearing Obstructions From The Bagger

    Clearing Obstructions from Install the bags by sliding the bag frame hooks onto the retaining brackets (Figure 46). the Bagger Park the machine on a level surface and disengage the blade control switch. Move the motion control levers outward to the neutral lock position, stop the engine, remove the key, set the parking brake and wait for all moving parts to stop before leaving the...
  • Page 25: Using The Draw Bar

    Using the Draw Bar The bagger support bracket has a draw bar feature that can be used for towing. • Read and understand all the operating instructions of the machine. • When turning, slow down and observe the clearance. • Make wide turns and keep towed equipment clear of the towing vehicle.
  • Page 26: Operating Tips

    Operating Tips CAUTION As the bagger fills, extra weight is added to Tips for Bagging the back of the machine. If you stop and start suddenly on hills, you may lose steering control or the machine may tip. Remembering the Size •...
  • Page 27: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Inspect the bagger. After the first 10 hours • Clean the bagger. Before each use or daily •...
  • Page 28: Inspecting The Mower Blades

    Inspecting the Mower Storage Blades Storing the Bagger Inspect the mower blades regularly and whenever a Attachment blade strikes a foreign object. If the blades are badly worn or damaged, install new Clean the bagger attachment; refer to Cleaning blades. Refer to your mower or mower Operator's the Bagger Attachment (page 28).
