Panasonic EY6230 Service Manual

ORDER NO. MEW/PTD 9709-62301
Service Manual
SPE CI F I CAT IONS

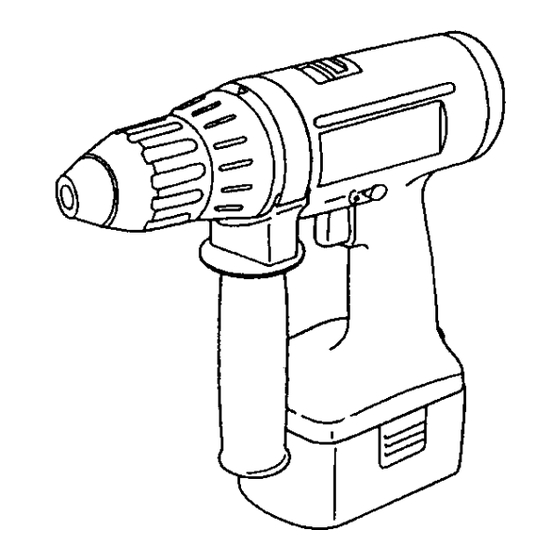

Cordless Drill 4 Driver
EY 6 2 3 0
DRILL/DRIVER
Motor voltage : 15.6V DC
Capability
(Screw driving) : Machine screw M3 ~ M6
Wood screw 02.1 8mm
Self-drilling screw 03 — 6am
(Drilling) : Wood 03 — 36mm
Steal 01.6 — 13mm
No load speed (LOW): 65 ~ 450 min (RPM)
(HIGH): 200 - 1450 min (RPM)
Maximum torque (LOW): 30.90Nm (315kg-cm, 273.0in.lbs.)
(HIGH): 8.33Nn ( 85kg-cm, 73.3in.lbs.)
Maximun clutch torque : 6.9Nm ( 70kg-cm, 60.8in.lbs.)
Overall length : 237mm (7-13/32")
Weight : 2.3kg (5.libs.)
(with battery pack)
BATTERY PACK
Storage battery : Ni-Cd battery
Battery voltage : 15.6V DC ( 1.2V x 13 cells)
Weight : 1.0kg
BATTERY CHARGER
Input : 120V AC
Mass (Weight) : 1.70kg (3.801bs.)
Charging time : Approx. 30 min. for EY9136
STANDARD EQUIPfCNT
Battery charger , Battery pack , Phillips bit #2 (75mm)
CONTENTS
Page
• Specifications . 1
• Disassembly & Assembly Instructions ............ 2-5
• Wiring Connection Diagram . 6
• Schematic Diagram. 6
• Troubleshooting . 7
• Exploded View. 8
• Replacement Parts List . 9
A WARNING
This service literature is designed for experienced repair technicians only and is not designed for
use by the general public. It does not contain warnings or cautions to advise nan-technical indi¬
viduals of potential dangers in attempting to service a product. Products powered by electricity
should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result
in serious injury or death.
Panasonic
© 1997 Matsushita Electric Works, Ltd.
All rights reserved. UnauthorUed copying and
distribution is a violation of law.
